Glorystar Tube Laser Cutting Machines help manufacturers process tube, pipe, and other profiles with greater speed, accuracy, and efficiency than traditional fabrication methods. Designed for applications ranging from general fabrication to high-volume production, these systems combine advanced fiber laser technology, intelligent controls, and automation-ready designs to streamline tube processing and reduce secondary operations.
Whether you’re producing structural components, agricultural equipment, construction products, fitness equipment, furniture, transportation components, industrial assemblies, or pipe fabrication projects, Glorystar tube laser cutting machines help improve productivity, reduce material waste, and support consistent part quality across a wide range of applications.
With more than two decades of engineering experience and over 200 patented technologies, Glorystar designs and manufactures fully‑integrated tube laser cutting lines capable of processing round, square, and special‑profile tubes from Ø10 mm to Ø500 mm, lengths up to 12 m, and single‑piece weights up to 1.8t. Our 2D and 3D fibre‑laser platforms combine rigid, finite‑element‑optimised machine beds, high‑precision chucks, and servo‑controlled drives to achieve length and hole‑to‑hole accuracy of ±0.1 mm and ±0.3 mm respectively. Optional robotic loading, unloading, and sorting modules enable uninterrupted, unattended operation, while open Industry 4.0 interfaces support remote diagnostics, predictive maintenance, and MES/ERP connectivity. ensuring consistent performance, reduced labour cost, and scalable productivity for applications ranging from structural steel and furniture to automotive components and fitness equipment.
Compare Glorystar tube laser product families to identify the best solution based on your tube sizes, production requirements, automation requirements, and fabrication applications.
Series | Best For | Power Range | Max Round Tube Capacity | Key Differentiator |
G-A | High-volume small tube production | 3 – 6 kW | 160 mm (6.3″) | Short-tail processing |
G-PRO | Small tube fabrication with bevel cutting | 3 – 6 kW | 160 mm (6.3″) | Integrated bevel cutting |

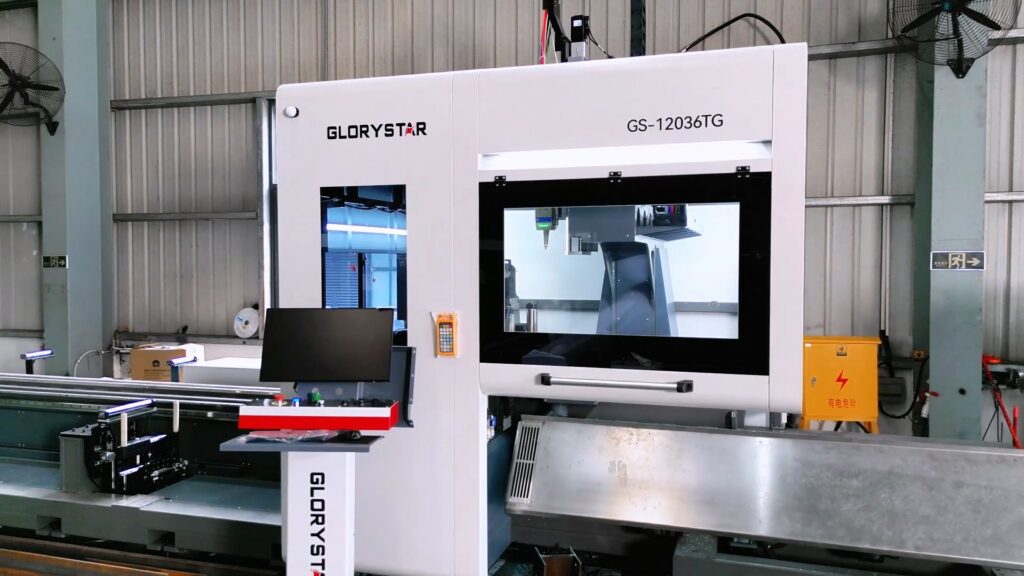

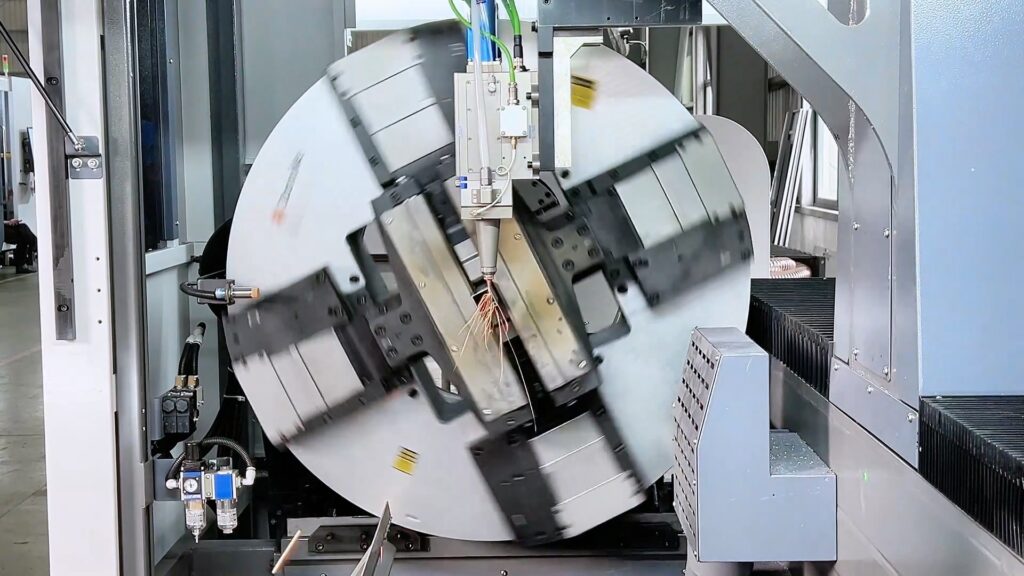

GS-TG | Wide-ranging tube fabrication | 3 – 12 kW | 360 mm (14.2″) | Versatile two-chuck platform |

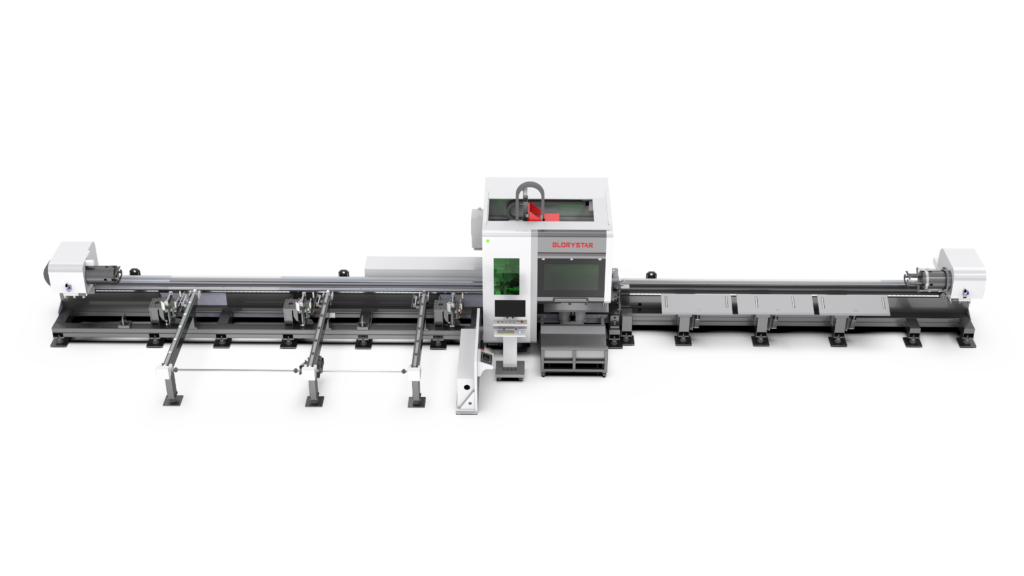

GS-HG | High-volume automated production | 3 – 12 kW | 360 mm (14.2″) | Full-stroke three-chuck design |

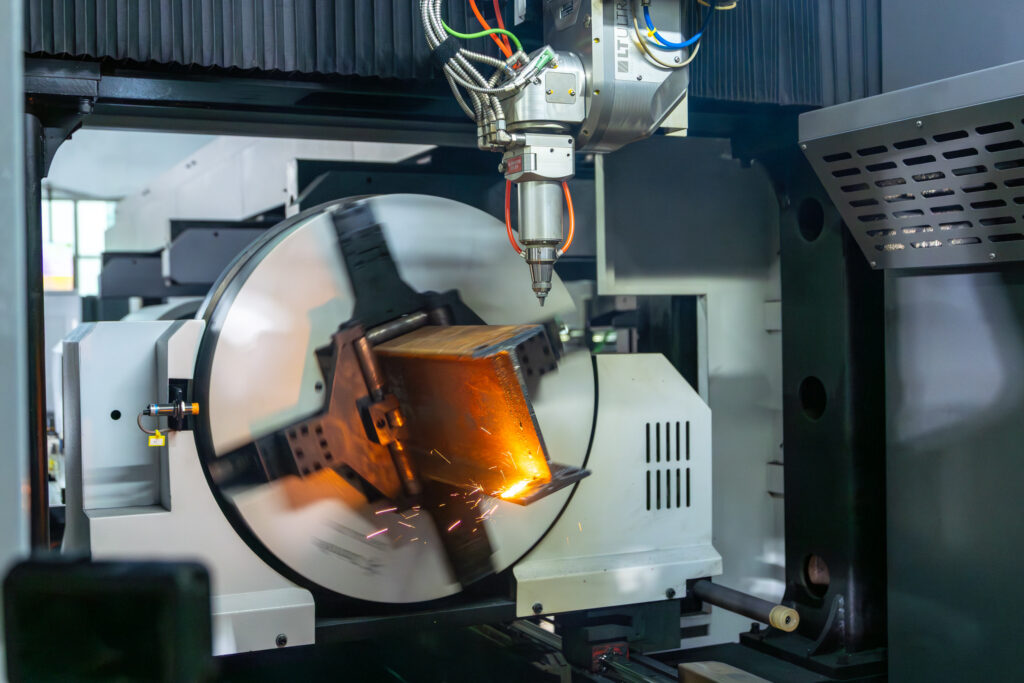

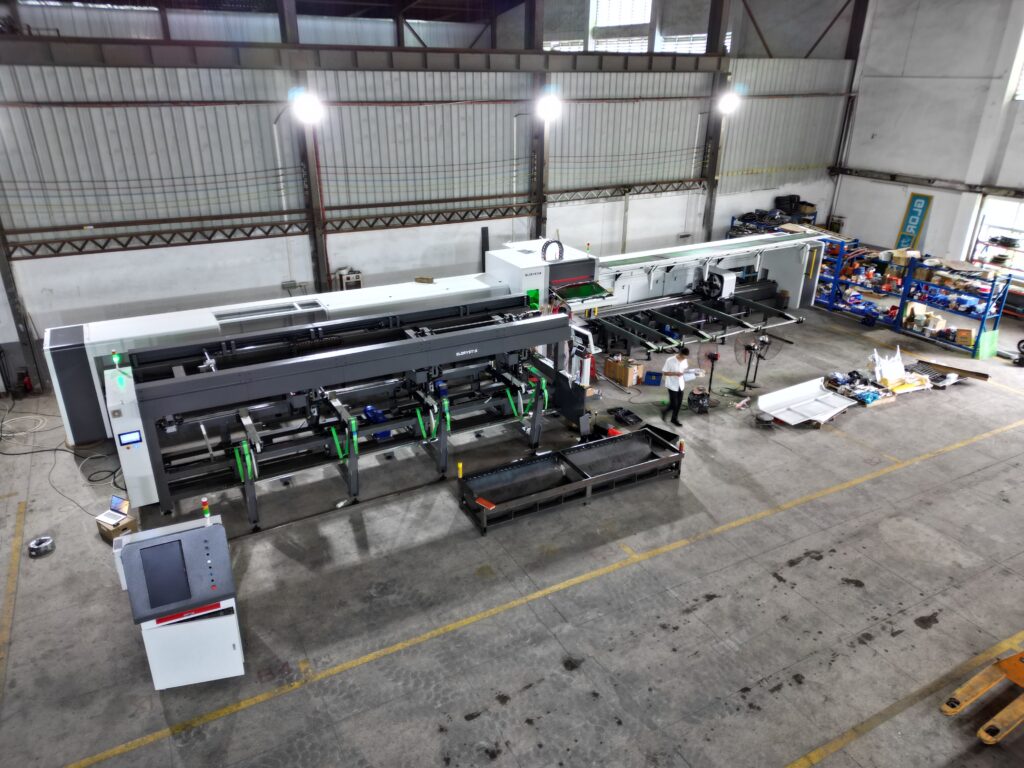

NS-HG | Heavy-duty tube and pipe fabrication | 6 – 20 kW | 510 mm (20.1″) | Intelligent zero-tail cutting |

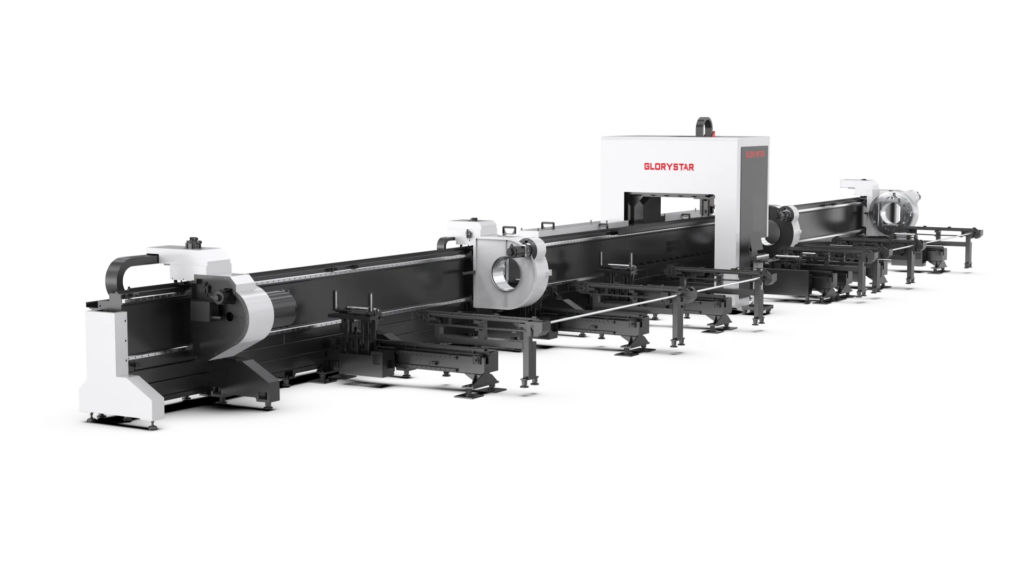

NS-FG | Large-diameter and heavy-material fabrication | 6 – 20 kW | 860 mm (33.9″) | Full-stroke four-chuck design |
*Maximum round tube capacities shown are representative of the largest standard configurations within each product family. Additional capacities, options, and configurations may be available. | ||||
Advanced Tube Processing
High-Precision Fiber Laser Cutting
Efficient Material Utilization
Bevel Cutting Capability
Automation-Ready Design
Increase Production Throughput
Reduce Material Waste
Improve Fabrication Efficiency
Reduce Secondary Operations
Scale with Business Growth
A: Glorystar tube laser cutting machines are designed to process a variety of tube shapes and profiles, including:
Profile capabilities vary by machine series, chuck configuration, and machine design. Some models are optimized for traditional tube processing, while others are designed to accommodate a broader range of profiles and fabrication requirements.
Bramac Machinery can help determine which Glorystar tube laser platform best matches your material types, profile requirements, and production goals.
A: Glorystar tube laser cutting machines can process a variety of fabrication materials, including:
Tube and pipe material capabilities vary depending on machine model, tube size, wall thickness, laser power, and application requirements.
A: Dual-chuck machines are typically designed for general tube processing applications and provide an economical solution for many fabrication environments.
Three-chuck machines improve material utilization and support shorter remnant lengths while increasing flexibility for a wider range of tube sizes.
Four-chuck machines provide maximum material control, support complex processing requirements, and are often used for large tubes, heavy materials, and demanding production applications.
A: Bevel cutting allows manufacturers to create weld-preparation edges directly on the tube laser, eliminating many secondary fabrication operations.
Benefits may include:
For manufacturers producing welded assemblies, bevel cutting can help streamline production while reducing downstream processing costs.
A: Glorystar tube laser cutting machines utilize advanced chuck designs, intelligent nesting, and short-tail or zero-tail cutting technologies on select models to maximize usable material and reduce remnant waste.
Benefits may include:
Material utilization capabilities vary by machine series and configuration. Bramac Machinery can help evaluate which tube laser platform best aligns with your production requirements and material utilization goals.
A: Tube laser automation helps manufacturers reduce manual material handling, increase machine utilization, and support higher production volumes. Automation is often beneficial for operations that:
By automating material loading and feeding, manufacturers can improve efficiency, reduce operator involvement, and maximize the productive cutting time of their tube laser system.
A: Yes. Many Glorystar tube laser systems can be integrated with automated loading and material handling solutions to improve productivity, reduce labor requirements, and support higher production volumes.
Bramac Machinery can help determine the most appropriate automation configuration based on production volume, tube sizes, labor availability, and future growth plans.
A: Glorystar tube laser cutting machines are commonly used in:
A: Important considerations include:
Bramac Machinery can help evaluate your materials, tube sizes, production volume, automation requirements, and future growth objectives to recommend the most appropriate Glorystar tube laser cutting solution.
A: Glorystar tube laser cutting machines include warranty coverage based on machine configuration and laser power.
Machines up to 6kW
Machines 12kW and above
Warranty Coverage
Bramac Machinery works closely with customers to coordinate machine selection, installation, training, warranty support, and ongoing technical assistance throughout the life of the equipment.
