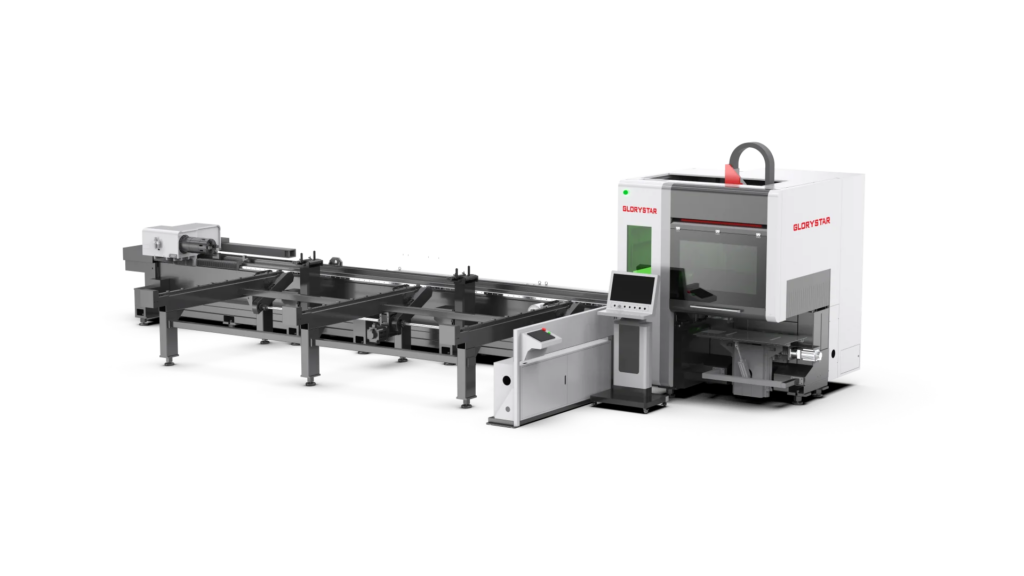

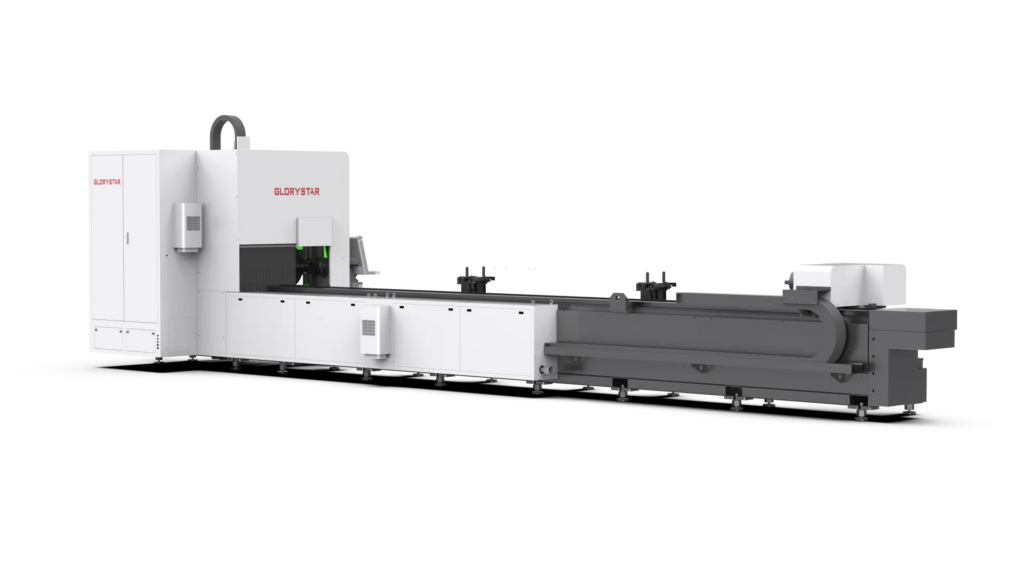

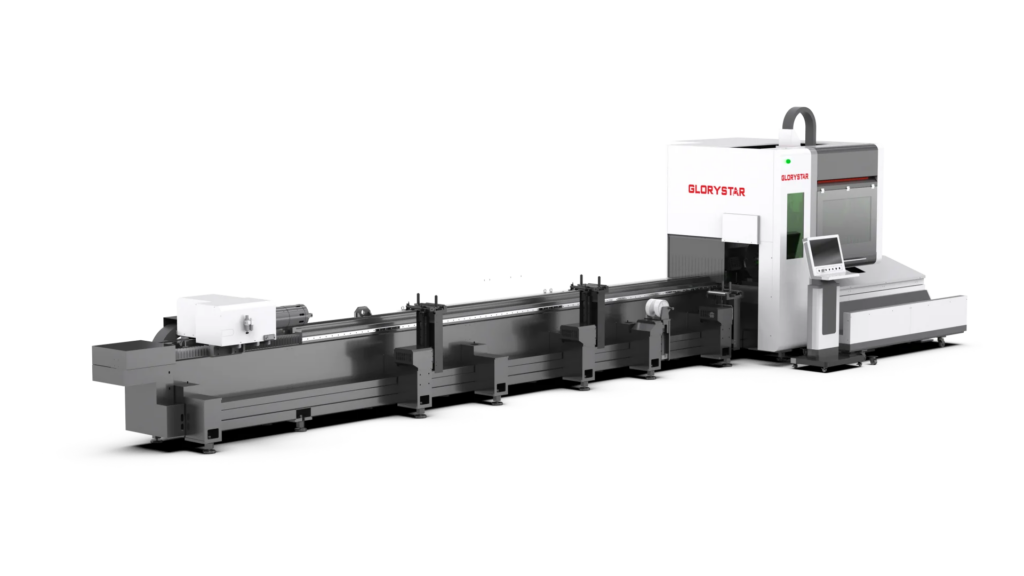

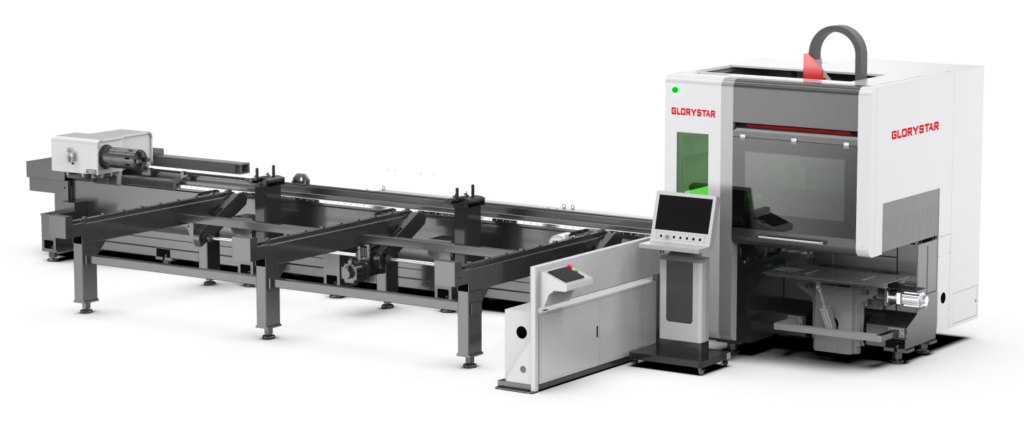

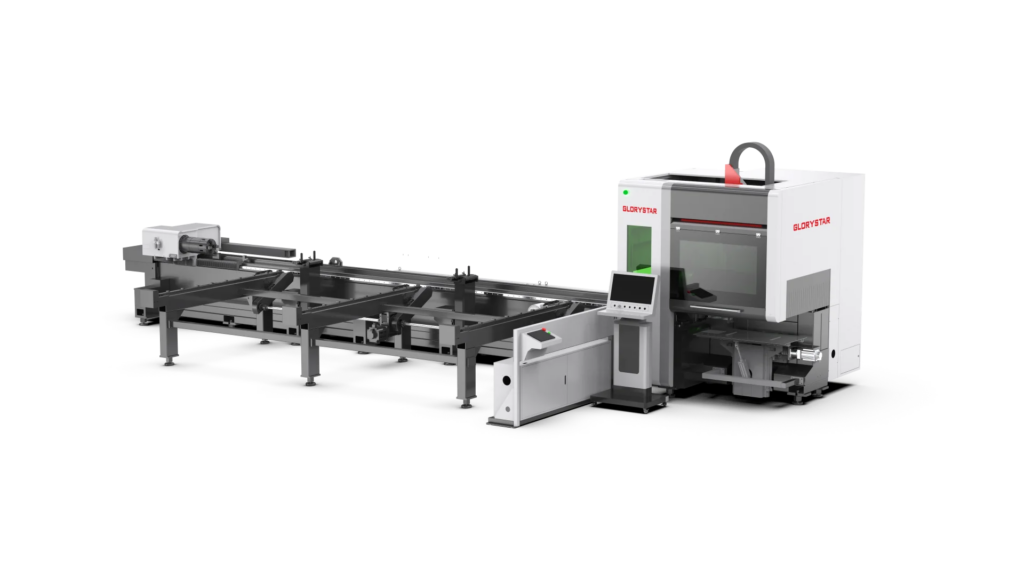

The Glorystar GS-TG Series Tube Laser Cutting Machines are designed for manufacturers that require flexible, high-performance tube processing across a wide range of tube sizes and applications. Featuring a two-chuck design, short-tail material technology, and automation-ready configurations, the GS-TG Series helps fabricators improve material utilization, increase productivity, and support diverse production requirements.
The GS-TG Series combines production-ready performance with the flexibility needed to process a broad range of tube sizes, lengths, and profiles, including configurations capable of handling material lengths up to 40 feet. Its two-chuck architecture supports efficient cutting of round, square, rectangular, and select structural profiles while maintaining high levels of accuracy and material utilization. Available in 3kW to 12kW fiber laser power configurations.
Designed for fabrication shops, equipment manufacturers, contractors, and industrial producers, the GS-TG Series incorporates short-tail material processing, optional automation systems, and scalable machine configurations to support both current production demands and future growth.
Flexible Two-Chuck Tube Processing
Short-Tail Material Utilization
Production-Ready Performance
Automation-Ready Configuration
Expanded Processing Flexibility
Process a Wider Range of Applications
Improve Material Utilization
Increase Manufacturing Efficiency
Support Automation Initiatives
Prepare for Future Growth
GS-24TG | GS-7024TG | GS-9024TG | GS-12024TG | |
Max Auto Loading Length | mm | <7500 | <9200 | <12200 |
ft | <24.6 | <30.2 | <40.0 | |
Max Manual Loading Length | mm | <8600 | <10300 | <13300 |
ft | <28.2 | <33.8 | <43.6 | |
Round Tube | mm | 15 – 230 | ||
in | 0.6 – 8.9 | |||
Square Tube | mm | 15 – 230 | ||
in | 0.6 – 8.9 | |||
I-Beam | mm | 5 – 20# (China Standard) | ||
in | 5 – 20# (China Standard) | |||
Laser Power | kW | 3 / 6 / 12 | ||
Repeat Positioning Accuracy | mm | ≤0.3 | ||
in | ≤0.0118 | |||
Positioning Accuracy | mm | ≤0.5 | ||
in | ≤0.0197 | |||
Max Positioning Speed | m/min | 80 | ||
ft/min | 262.5 | |||
Max Acceleration | G | 1.0 | ||
Max Chuck Speed | RPM | 100 | ||
Max Single Pipe Weight | kg | ≤260 | ||
lb | ≤573.2 | |||
Bevel Cutting Capacity | Optional: ±45° | |||
GS-36TG | GS-6036TG | GS-9036TG | GS-12036TG | |
Max Auto Loading Length | mm | <6200 | <9200 | <12200 |
ft | <20.3 | <30.2 | <40.0 | |
Max Manual Loading Length | mm | <7300 | <10300 | <13300 |
ft | <24.0 | <33.8 | <43.6 | |
Round Tube | mm | 30 – 360 | ||
in | 1.2 – 14.2 | |||
Square Tube | mm | 30 – 360 | ||
in | 1.2 – 14.2 | |||
I-Beam | mm | 10 – 36# (China Standard) | ||
in | 10 – 36# (China Standard) | |||
Laser Power | kW | 3 / 6 / 12 | ||
Repeat Positioning Accuracy | mm | ≤0.3 | ||
in | ≤0.0118 | |||
Positioning Accuracy | mm | ≤0.5 | ||
in | ≤0.0197 | |||
Max Positioning Speed | m/min | 50 | ||
ft/min | 164 | |||
Max Acceleration | G | 0.5 | ||
Max Chuck Speed | RPM | 50 | ||
Max Single Pipe Weight | kg | ≤1000 | ||
lb | ≤2205 | |||
Bevel Cutting Capacity | Optional: ±45° | |||
A: The GS-TG Series can process a wide range of materials: tube, square pipes, oval tubes, angle iron, C/U/H/T beams, and other irregularly shaped profiles.
A: Depending on the model the GS-TG Series can process up to 21.3′ or 40.3′ feet long tube.
A:The Glorystar GS-TG tube laser and milling machine (and similar high-speed tube laser cutters) is primarily used in heavy industry, manufacturing, automotive, aerospace, steel construction, and furniture manufacturing. It is highly prized for its ability to cut, punch, and hollow various metal profiles automatically.
A: The GS-TG Series is designed to process a wide range of tube, pipe, and profile materials used in fabrication and manufacturing applications.
Supported materials and profiles include:
The ability to process multiple tube shapes and select structural profiles allows manufacturers to consolidate more fabrication work onto a single machine platform while maintaining production flexibility. Profile capabilities vary by model and application requirements.
A: Short-tail material processing is a machine design feature that helps maximize usable material and reduce waste.
Benefits of short-tail processing include:

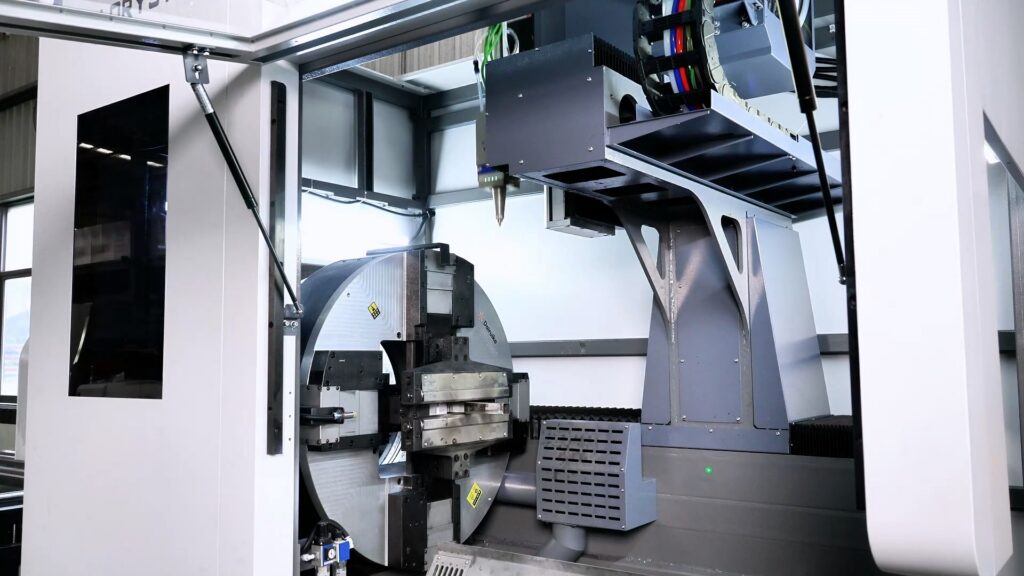

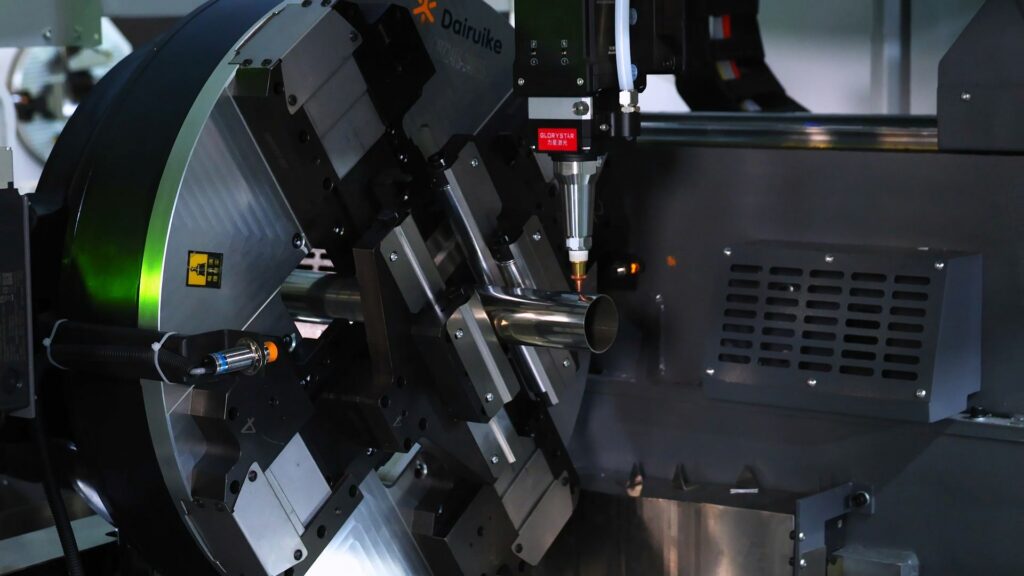

The GS-TG Series utilizes a movable cutting head that can cut between the machine’s two chucks, allowing manufacturers to process more of each tube and minimize leftover material.
A: The GS-TG Series tube laser cutting machines are particularly well suited for manufacturers that process a variety of tube sizes and profiles while requiring a balance of flexibility, productivity, and material efficiency.
Common industries include:
Common applications include:
A: Yes. The GS-TG Series is available with optional automation systems designed to reduce manual material handling and support higher production volumes.
Available automation options include:
Potential benefits include:
Bramac Machinery can help evaluate production volumes, tube sizes, labor availability, and future growth plans to determine the most appropriate automation configuration for your operation.
A: Both machines share the same two-chuck architecture, short-tail material technology, automation-ready design, and optional bevel cutting capability. The primary difference is the size and weight of the material being processed.
Choose the GS-24TG Series if you:
Choose the GS-36TG Series if you:
Bramac Machinery can help evaluate your material sizes, production requirements, and future growth plans to determine which GS-TG configuration is the best fit for your operation.
