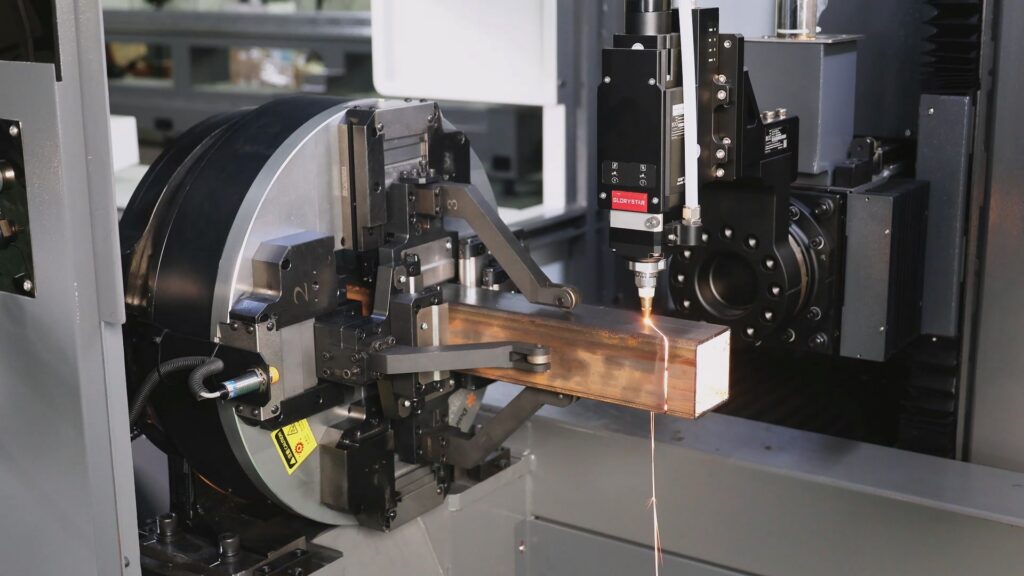

The G-PRO series is designed for high-precision bevel cutting of small-diameter tubes and profiles. The machine supports ±45° multi-angle bevel cutting with a high-speed oscillating cutting head, allowing complex geometry processing without repositioning the material. Its dual-chuck system ensures stable clamping and smooth cutting surfaces suitable for direct welding or assembly
The G Series, a newly upgraded small-tube bevel cutting machine from Glorystar Laser, combines ultra-high precision with exceptional efficiency. Featuring a zero overhang structure and patented chuck design, it effectively prevents pipe deformation and enables high-precision bevel cutting for tubes as small as 10mm in diameter, ensuring seamless splicing for high-standard welding requirements. With advanced short-tail cutting technology, the cutting head supports overrun operation, reducing tail material to as little as 80/160mm and significantly improving material utilization—an ideal solution for cutting costs.
Equipped with an industry-leading Y-axis dustproof system and multi-stage dust collection features, the VS Series reduces dust emissions by up to 80%, creating a cleaner, greener smart workshop. Its high-precision chuck offers clamping accuracy within ±0.05mm and supports cutting of round and square tubes from 10–160mm, as well as angle steel, channel steel, I-beams, and more. With 1.2G acceleration and a chuck speed of 130r/min, it delivers outstanding efficiency—making it a top performer in small-tube laser cutting.
G12 PRO | G16 PRO | |
Max Pipe Size | 650mm / 21.3ft | |
Pipe Processing Range | Round:10mm-120mm /Φ0.4in-4.7in Square: 10×10mm-120×120mm / 0.4×0.4in-4.7×4.7in I-Beam:5-8#（50x37mm~80x50mm / 2×1.5in~3.2x2in） | Round: 10mm-160mm / 0.8in-6.3in Square: 10×10mm – 160×160mm / 0.8×0.8in-6.3×6.3in I-Beam: 10-12.6# （100x68mm~126x74mm / 3.9×2.8in~4.7×2.9in） |
Pipe Weight | ≤120kg / ≤573.2lbs | ≤160kg / ≤2205lbs |
Max Acceleration | 1.5 G | 1.2G |
Max Positioning Speed | 80m/min / 262.5ft/min | |
Positioning Accuracy | ≤0.05mm / ≤0.002in | |
Repeat Positioning Accuracy | ≤0.03mm / ≤0.0012in | |
Max Chuck Speed | 160r/min | 130r/min |
A: The G-A Series can process anything from thin 10 mm tubes to robust 120 mm profiles, plus angle, channel, and I-beam sections, the VS Series handles the full mix without tool changes.
A: It can process tubes up to 21.3′ or 6 1/2 meteres.
A: Yes, it features smart auto/semi-auto loading to save time, boost safety, and reduce manual labor requirments.
A: The G-Pro series is most commonly used in the automotive, structural steel, furniture, fitness equipment, and sheet metal fabrication industries.
