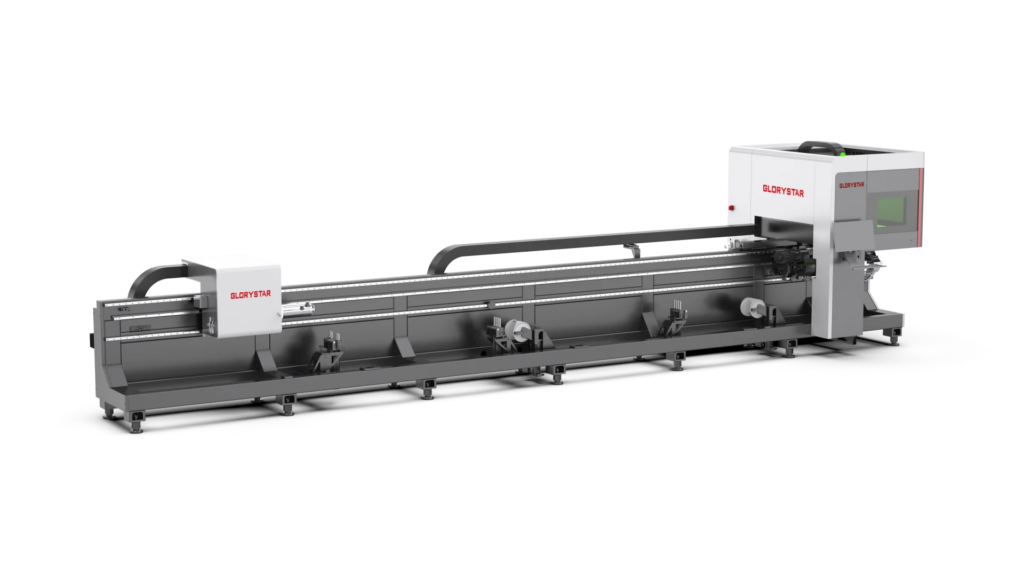

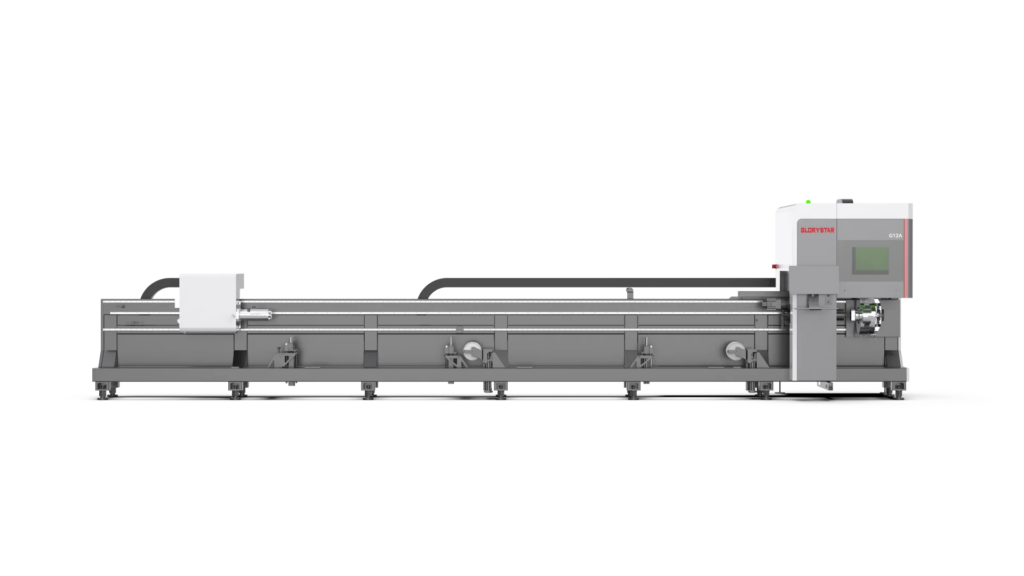

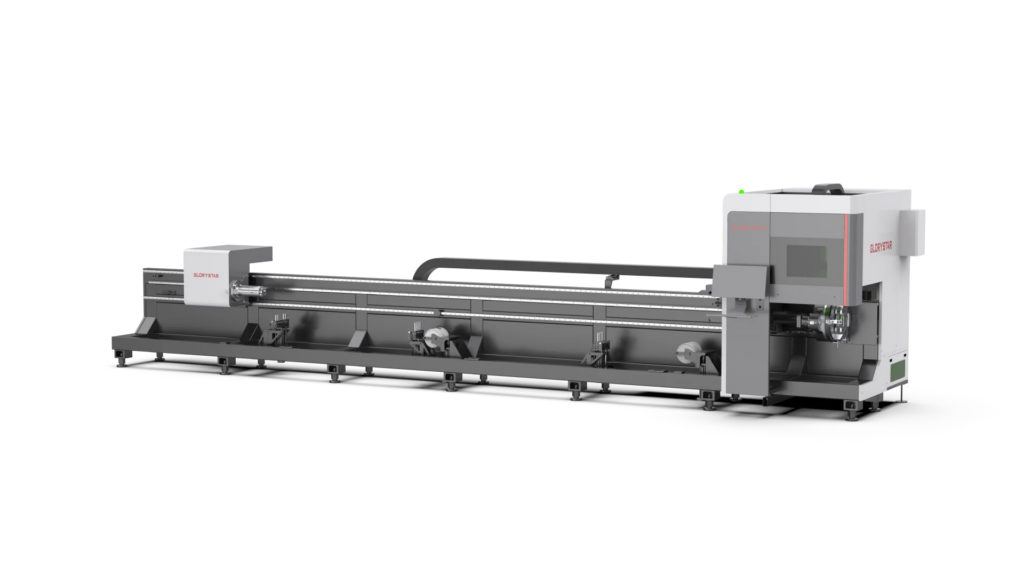

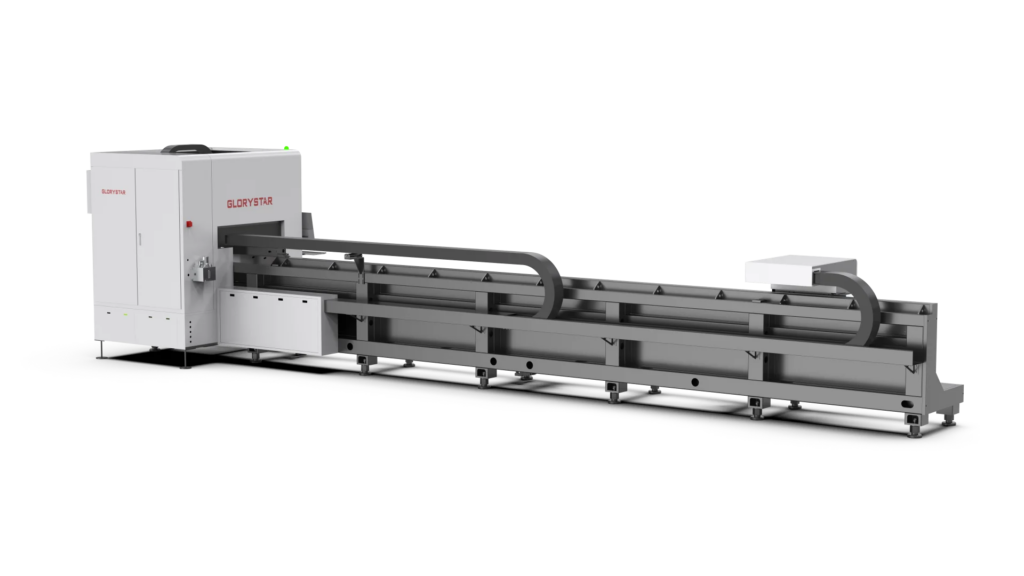

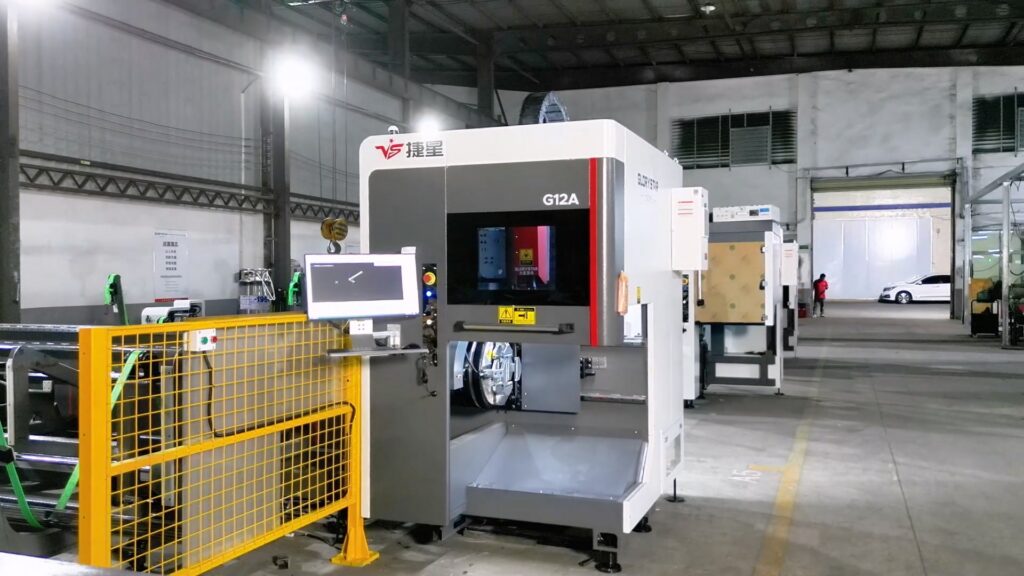

The Glorystar G-A Series High-Speed Tube Laser Cutting Machine is engineered for manufacturers processing small-diameter tube and pipe at high production volumes. Designed for speed, efficiency, and material utilization, the G-A Series combines high chuck speeds, rapid acceleration, short-tail cutting technology, and automation-ready configurations to maximize throughput while minimizing waste.
Ideal for tube fabrication, furniture manufacturing, fitness equipment production, automotive components, HVAC products, and other high-volume tube processing applications, the G-A Series helps manufacturers increase productivity while maintaining consistent cut quality.
The G-A Series is Glorystar’s high-speed tube laser cutting platform engineered specifically for small-diameter tube and pipe processing. Designed for manufacturers that prioritize throughput, material utilization, and production efficiency, the G-A combines high-speed motion performance, precision tube handling, and short-tail cutting technology to maximize productivity while minimizing waste. Available in G12A and G16A configurations with fiber laser power from 3kW to 6kW, the series supports a wide range of tube sizes commonly used in fabrication, furniture, fitness equipment, HVAC, automotive, and industrial manufacturing applications.
A movable front chuck allows the cutting head to operate between the chucks, reducing remnant material and improving material yield. Designed for manufacturers where machine uptime, cycle time, and material utilization directly impact profitability, the G-A Series helps support efficient production across single-shift, multi-shift, and lights-out manufacturing environments. Optional conveyor and bundle loading systems further enhance efficiency by reducing manual handling and supporting higher-volume production operations.
High-Speed Small Tube Processing
Short-Tail Material Utilization
Precision Chuck System
Automation-Ready Configuration
Intelligent Tube Handling
Increase Production Throughput
Reduce Material Waste
Improve Part Consistency
Reduce Labor Requirements
Support Growing Production Demands
|
| G12A | G16A |
Max Auto Loading Length | mm | <6500 | |
ft | <21.3 | ||
Max Manual Loading Length | mm | <7200 | |
ft | <23.6 | ||
Round Tube | mm | 10 – 120 | 10 – 160 |
in | 0.4 – 4.7 | 0.4 – 6.3 | |
Square Tube | mm | 10 – 120 | 10 – 160 |
in | 0.4 – 4.7 | 0.4 – 6.3 | |
I-Beam | mm | 5-8# (China Standard) | 10-12.6# (China Standard) |
in | 5-8# (China Standard) | 10-12.6# (China Standard) | |
Laser Power | kW | 3 / 6 | |
Repeat Positioning Accuracy | mm | ≤0.3 | |
in | ≤0.0118 | ||
Positioning Accuracy | mm | ≤0.5 | |
in | ≤0.0197 | ||
Max Positioning Speed | m/min | 100 | |
ft/min | 328 | ||
Max Acceleration | G | 1.5 | 1.2 |
Max Chuck Speed | RPM | 160 | 130 |
Max Single Pipe Weight | kg | ≤120 | ≤160 |
lb | ≤265 | ≤353 | |

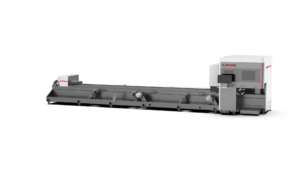

https://bramacmachinery.com/glorystar-laser/g-pro-series/

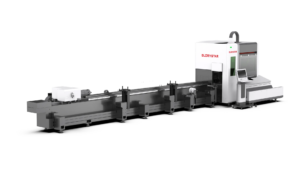

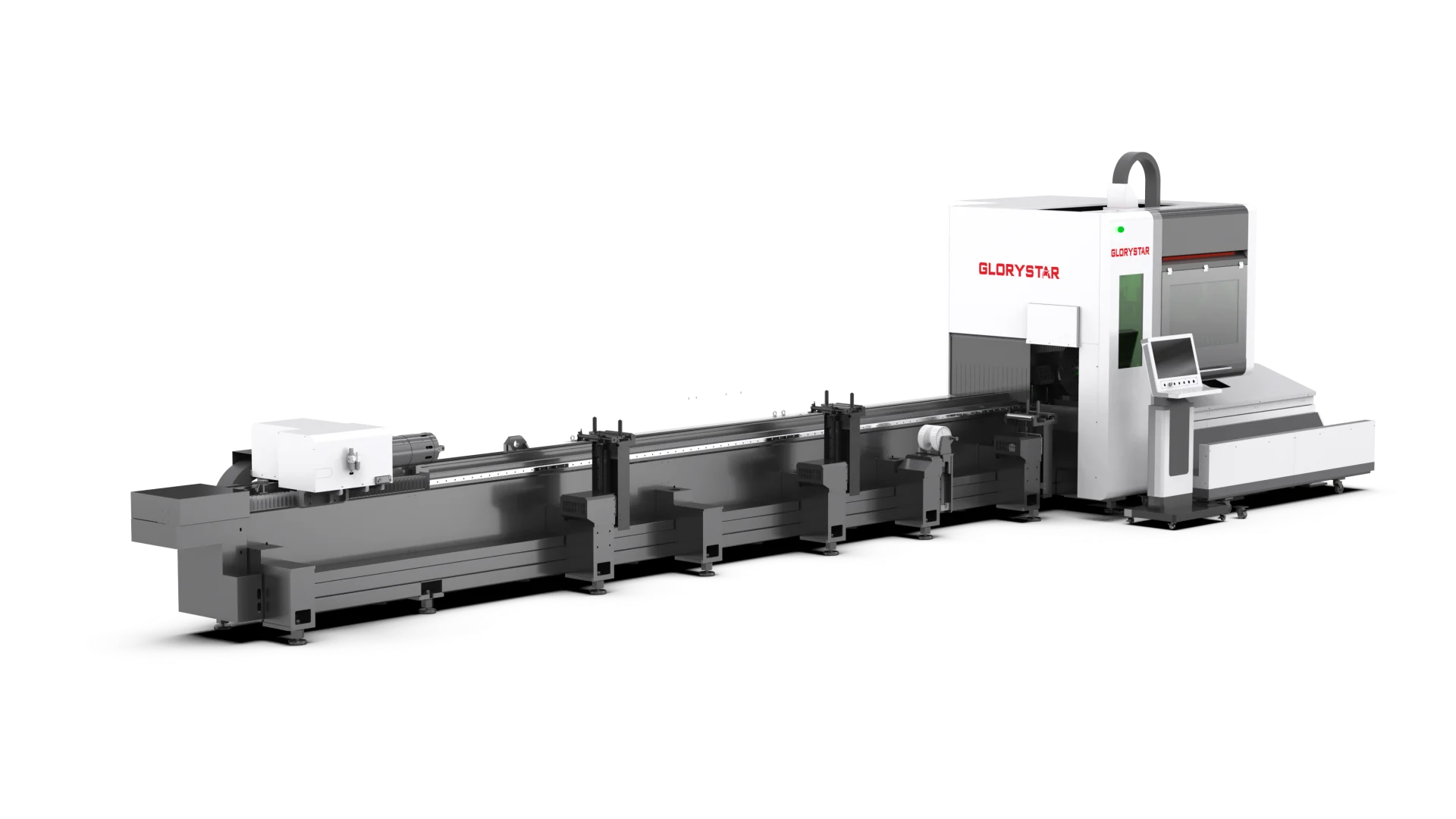

https://bramacmachinery.com/glorystar-laser/gs-tg-series/
Looking to complete your fabrication workflow?
Tube Automation: Increase throughput and reduce manual material handling for high-volume tube production. https://bramacmachinery.com/glorystar-laser/tube-lasers/
AH-W & GW-H Laser Welders: Efficiently weld tube assemblies, frames, and fabricated components.
https://bramacmachinery.com/glorystar-laser/laser-welders/
GB Series Bending Machines: Support downstream fabrication requirement with CNC bending capabilities.
https://bramacmachinery.com/glorystar-laser/bending-machine/
A: The G-A Series is designed to process a variety of tube sizes and materials commonly used in manufacturing and fabrication applications.
Supported materials include:
Available models support round and square tube sizes up to 120 mm (G12A) and 160 mm (G16A), making the G-A Series well suited for small-diameter tube processing applications. Material capacities vary based on material type, wall thickness, and laser power selection.

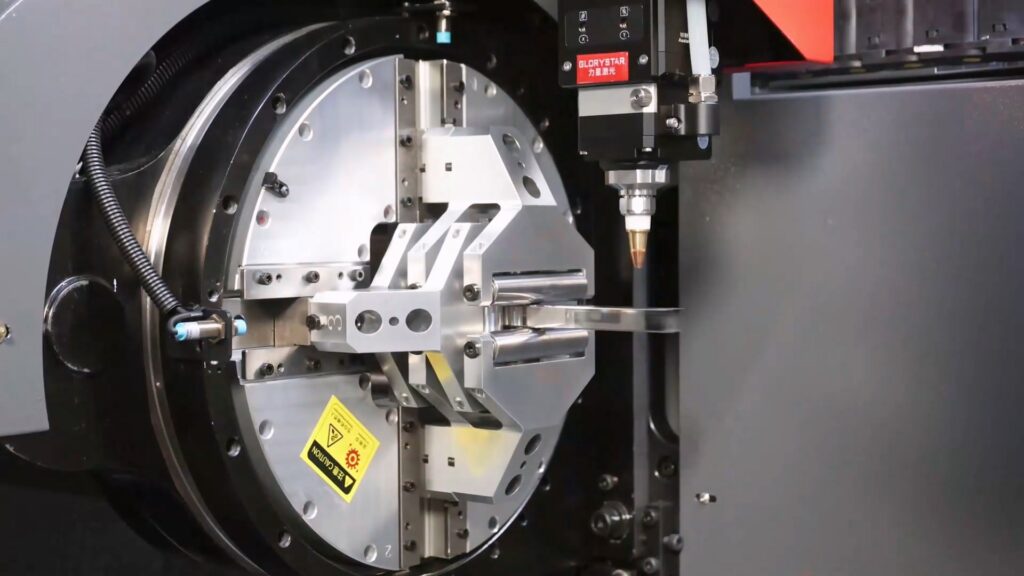

A: The G-A Series utilizes a movable front chuck design that allows the cutting head to process material between the two chucks. This short-tail cutting capability helps reduce remnant material left at the end of the tube after processing.
Benefits may include:
For manufacturers processing large volumes of tube, even small reductions in remnant material can create significant long-term savings.
A: The G-A Series is ideal for manufacturers processing high volumes of small-diameter tube and pipe, including:
Its combination of speed, material efficiency, and automation readiness makes it particularly well suited for production-oriented manufacturing environments.
A: Yes. The G-A Series can be equipped with optional conveyor loading and bundle loading systems to reduce manual material handling and improve production efficiency. Depending on the application, automation can help:
Automation requirements vary based on tube size, material type, and production volume.
A: Both the G-A Series and G-PRO Series are designed for small tube and pipe processing, but they are best suited for different production needs.
G-A Series

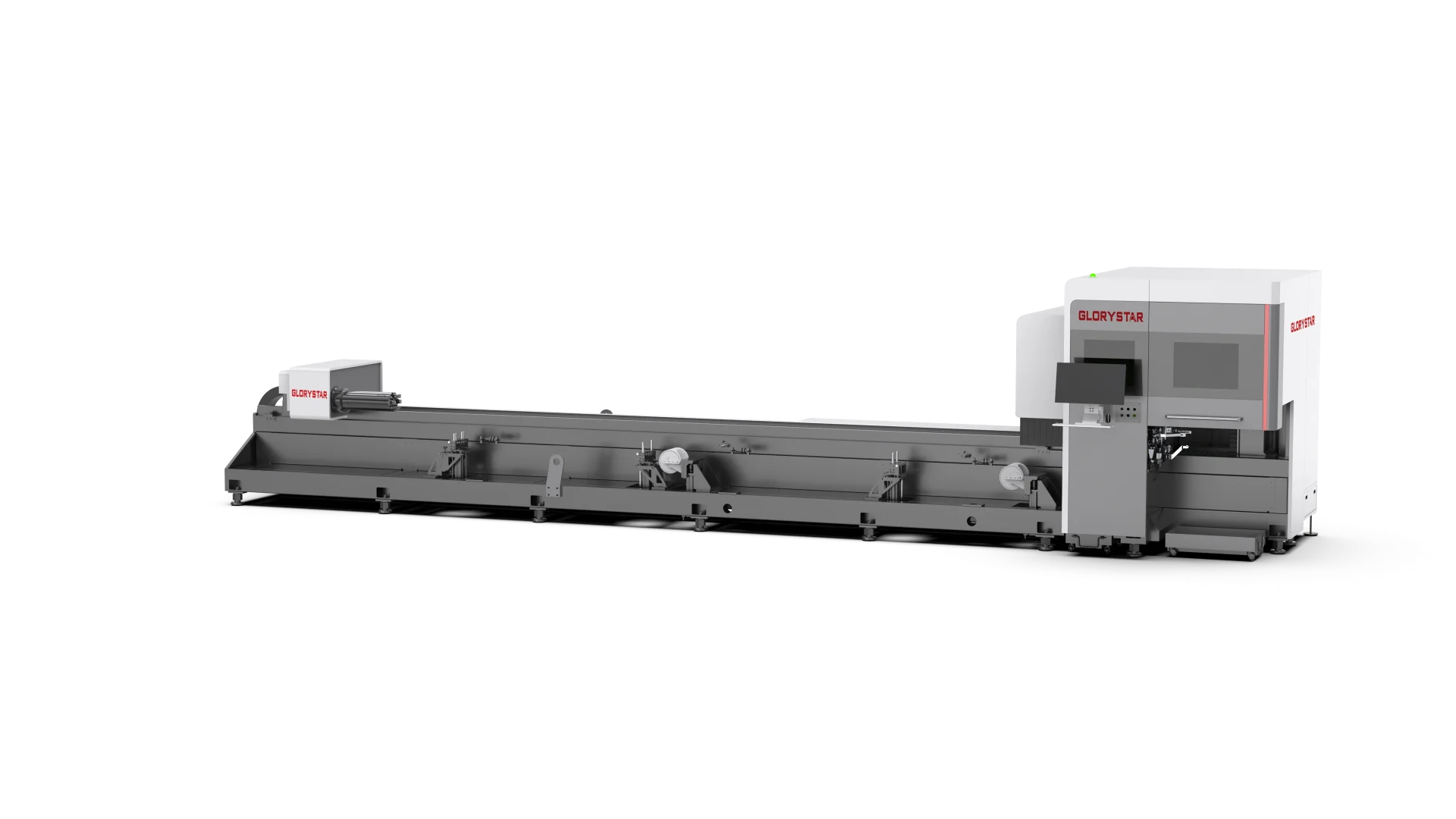

G-PRO Series
The G-A Series is a strong fit for manufacturers that need efficient small tube processing without bevel cutting. For applications requiring bevel cutting or power levels above 3kW, the G-PRO Series is typically the better fit.
