NS-HG Series

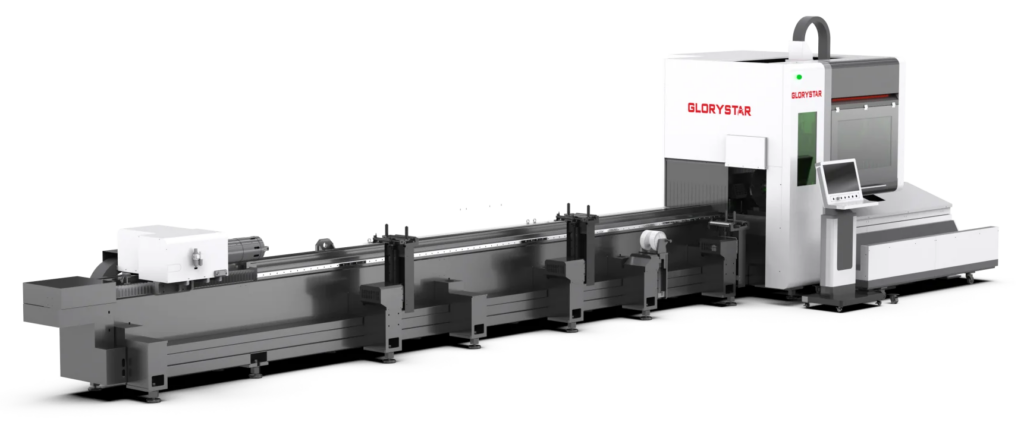

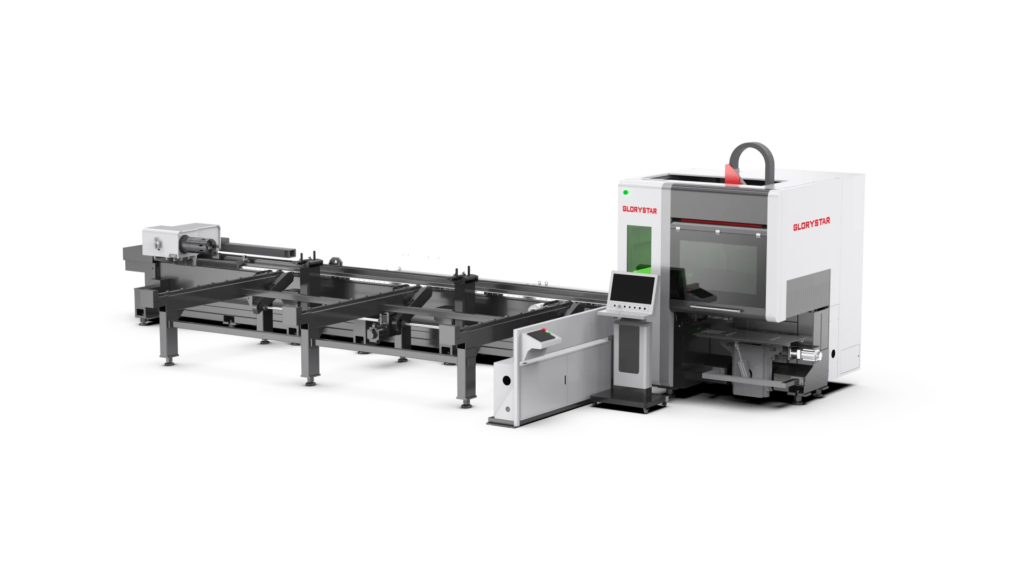

The NS-HG Series three-chuck heavy-duty tube laser cutting machine from Glorystar Laser offers fast, flexible, and stable cutting. Its three-chuck structure enables full tube cutting and zero tail material processing, maximizing material efficiency. High-quality chucks ensure precise clamping, while the side-hanging welded bed offers strong vibration resistance and stability.

About

About NS-HG Series

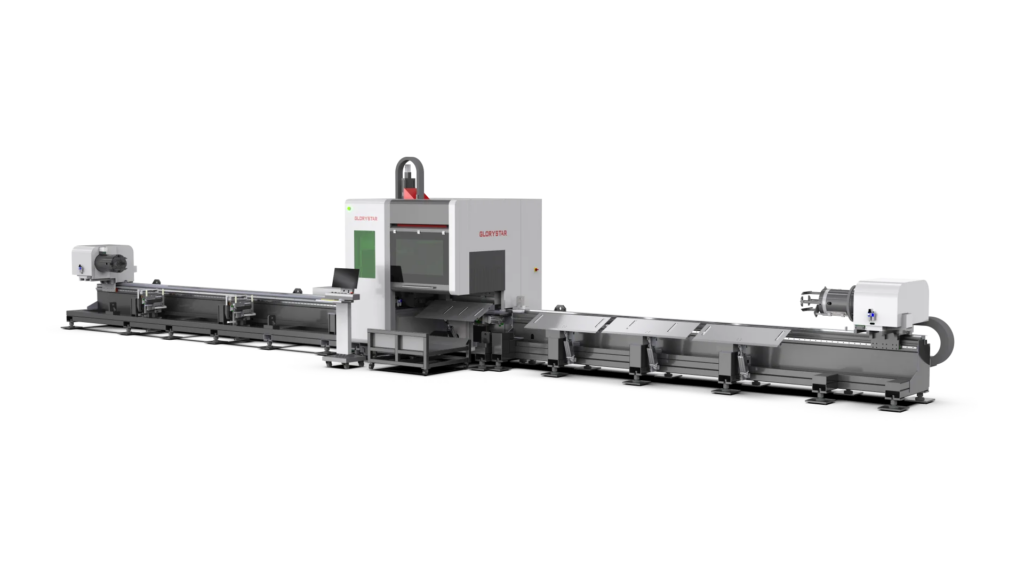

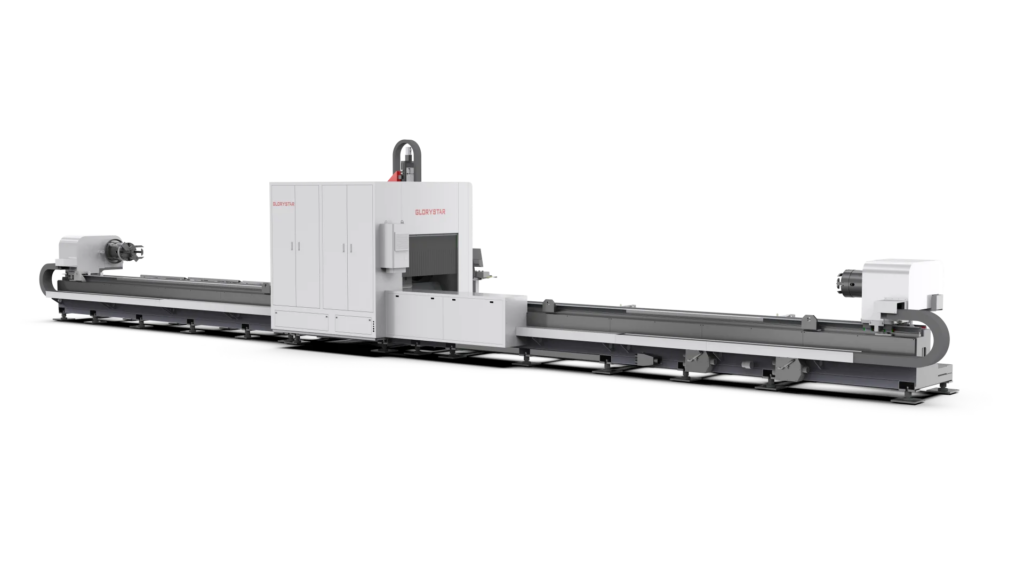

The NS-HG series is a high-precision three-chuck fiber laser tube cutting machine designed for efficient processing of small to medium diameter tubes. Its full-stroke pneumatic chuck system provides excellent clamping precision and enables full-length cutting with minimal tail material. With automated loading capability and optional bevel cutting, the machine delivers high productivity and flexibility for modern tube fabrication.

Key Features of the NS-HG Series

Three-Chuck Structure: The multi-chuck design enables full-tube cutting and continuous processing for zero waste/tailings, maximizing material utilization and efficiency.
Heavy-Duty Welded Bed: Features a highly rigid, heat-treated, side-mounted bed frame designed to absorb vibrations and prevent deformation, ensuring stability when handling large, heavy pipes.
Zero-Tailing Processing: The front chuck uses a unique claw-changing structure that allows the laser to cut the very end of the pipe, entirely eliminating raw material waste.
Versatile Profile Cutting: Easily accommodates round and square tubes, as well as structural steel profiles like channel iron, angle iron, and I-beams.
Optional ±45˚ Bevel Cutting: Equipped with two beveling options that allow for intelligent, angular edge-cutting, necessary for complex pipe joining and structural construction.

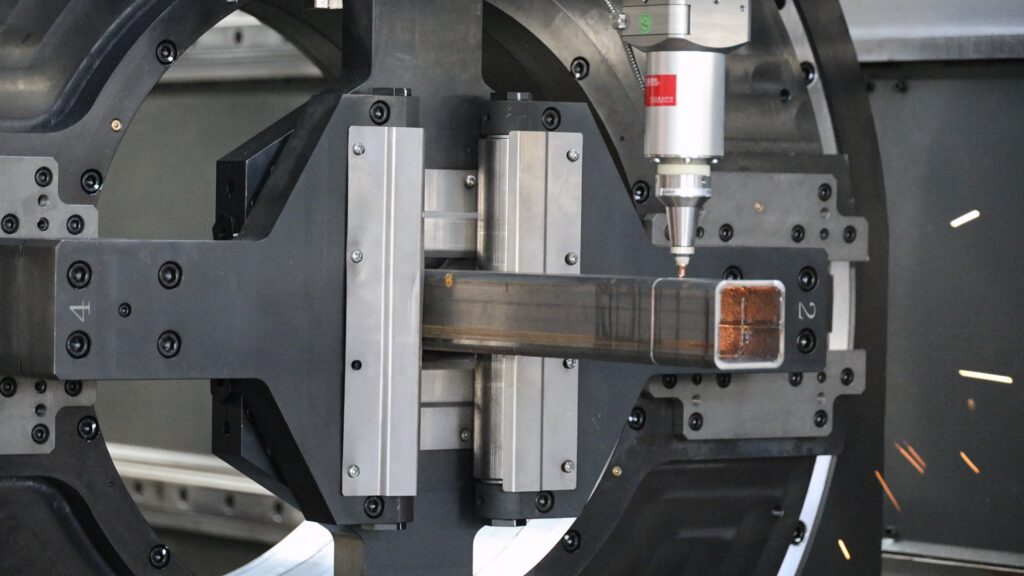

Smart Material Support: Utilizes a servo-motor and tapered wheel combination along with full-stroke pneumatic technology to securely clamp different tube sizes without slipping or scratching.
Automated Workflow: Integrates seamlessly with intelligent, bundle loading/unloading systems to minimize manual labor and reduce change-over times between pipes.

Benefits of Choosing NS-HG Series

Unmatched Accuracy: Achieves clamping and processing precision ±. 0.005 mm for seamless splicing.
Heavy-Duty Processing: Safely handles massive profiles (up to 390×390 mm) and challenging materials with strong clamping force.
Intelligent Operation: Features advanced beveling capability and automated feeding.
Every Glorystar Laser system is backed with end‑to‑end support: pre‑sales application consulting and sample cutting, turnkey on‑site installation and operator training, 24/7 remote diagnostics, rapid-response field service from certified engineers, a global spare‑parts network, lifetime software updates, and optional process optimization and automation upgrades—everything you need to keep your laser running at peak productivity.

NS-HG Series Specifications

Click the dropdowns below to view detailed specifications for the NS-HG Series.

NS-24HG: Three-Chuck Professional Tube Laser Machine Specifications

	NS-6024HG
Max Pipe Size	6500mm×Φ230mm / 21.3ft×Φ8.9in
Pipe Processing Range	Round: 15mm – 230mm / 0.6in – 9.1in Square: 15×15mm – 230×230mm / 0.6×0.6in – 9.1×9.1in I-Beam: 5-20#（50×37mm~200×102mm / 2×1.5in~7.8×4in）
Pipe Weight	≤260kg / ≤573.2lbs
Max Bevel Angle	±45° （optional）
Max Acceleration	1.0G
Max Positioning Speed	80m/min / 262.5ft/min
Positioning Accuracy	≤0.05mm / ≤0.002in
Repeat Positioning Accuracy	≤0.03mm / ≤0.0012in
Max Chuck Speed	100r/min

NS-36HG: Three-Chuck Heavy-Duty Tube Laser Machine Specifications

	NS-12036HG	NS-12056HG
Max Pipe Size	12300mm×Φ360mm / 40.3ft×Φ1.18ft
Pipe Processing Range	Round:40mm-360mm /1.6in-14.2in Square: 40×40mm-360×360mm / 1.6×1.6in-14.2×14.2in I-Beam:10-32#（100x70mm~300x152mm / 3.9×2.8in~11.8x6in）	Round: 50mm-550mm / 2in-21.6in Square: 50×50mm – 400×400mm / 2×2in-21.6×21.6in I-Beam: 10-50# （100x70mm~500x202mm / 3.9×2.8in~20x8in）
Pipe Weight	≤1000kg / ≤2205lbs	≤1800kg / ≤3968lbs
Max Bevel Angle	±45° （optional）
Max Acceleration	0.5G	0.3G
Max Positioning Speed	50m/min / 164ft/min
Positioning Accuracy	≤0.1mm / ≤0.004in
Repeat Positioning Accuracy	≤0.05mm / ≤0.002in
Max Chuck Speed	50r/min	30r/min

NS-HG Series FAQ's

Q: What tube shapes can the NS-HG Series cut?

A: Specific tube and profile shapes include:

Standard Profiles: Round, square, and rectangular tubes.
Open Profiles: Angle iron, channel beams (U/C-shaped), H-beams, and T-beams.
Irregular & Special Shapes: Oval, teardrop, and polygonal pipes.

Q: What is the max tube length supported?

A: The NS-HG series by Glorystar Laser supports a maximum tube length of up to 12 meters (39 feet), with supported single-tube weights of up to 1.8 tons (1,800 kg).

Q: Does it offer automated loading?

A: Yes, the NS-HG series tube laser from Glorystar Laser supports automatic loading and unloading. This feature is available as an optional add-on module to streamline your production line. It supports full closed-loop automation/completes the full workflow by feeding, positioning, cutting, and unloading, all in one unattended cycle.

Q: What industries use the NS-HG Series?

A: Examples ->

Heavy Industry & Manufacturing: Used for large-scale steel structure fabrication, bridge construction, and machinery manufacturing.
Automotive & Transportation: Employed for manufacturing exhaust systems, structural components, and chassis parts.
Aerospace & Defense: Utilized for cutting specialized, lightweight, or mission-critical tubular components.
Shipbuilding: Applied in the cutting of heavy-duty pipes and structural framing for marine vessels.
Energy & Renewables: Used for constructing solar tracking systems, wind turbine components, and oil/gas piping.
