Advanced CNC 3D Profiling, Robotic Plasma Cutting & Steel Fabrication Solutions
Bramac Machinery is an authorized partner of HGG Group, a global leader in CNC 3D profiling and automated steel cutting technology. From precision pipe cutting and structural steel processing to robotic plasma cutting and complex weld preparation, HGG machines help fabricators improve accuracy, reduce manual labor, minimize material waste, and increase production efficiency.
Explore our complete range of HGG cutting machines for structural steel, pipe fabrication, shipbuilding, offshore construction, pressure vessel manufacturing, and miscellaneous steel applications.
Machine | Primary Application | Material Types | Cutting Technology | Key Advantage |
|---|---|---|---|---|
MPC 450 / 500–1200 | Multi-profile fabrication | Pipe, box sections, structural profiles | Plasma / Oxy-fuel | Versatile profile processing |
PCL 600 | Structural profile cutting | Beams, channels, angles, flats, T-bars, bulb flats | Plasma | Automated structural profile processing |
ProCutter Series | General pipe fabrication | Round pipe | Plasma / Oxy-fuel* | Accessible CNC pipe profiling |
SPC Series | Industrial and heavy-duty pipe fabrication | Round pipe | Plasma / Oxy-fuel | Wide diameter and weight capacity |
RPC 1200 Mk3 | Complex structural steel connections | Beams, tubes, channels, angles, plates | High-definition plasma | Robotic 3D structural profiling |
RoboRail | Stairs, rails, miscellaneous steel | Pipe, tubing, channel, angle, flat bar | Robotic plasma | Multiple cutting operations in a compact system |
*ProCutter 600/900 configurations offer plasma and oxy-fuel options; the ProCutter 900 RB is a plasma-focused configuration.
Machine | Capacity / Profile Range | Material Weight | Cutting Process |
MPC 450 / 500–1200 | 2–48 in pipe range (family) | Configuration-dependent | Plasma / Oxy-fuel |
PCL 600 | Up to 550 mm for selected profile dimensions | Not specified | Plasma |
ProCutter 600 | 48–610 mm (2–24 in) | 3,000 kg (6,613 lb) | Plasma / Oxy-fuel |
ProCutter 900 | 48–910 mm (2–36 in) | 4,000 kg (8,818 lb) | Plasma / Oxy-fuel |
ProCutter 900 RB | Up to 914 mm (36 in) | Confirm pipe payload; 5.5 t chuck rating | Plasma |
SPC 500–1200 PT | 48–1,225 mm (2–48 in) | Up to 12 t | Plasma / Oxy-fuel |
SPC 1500–4000 PT | 100–4,000 mm across models (4–160 in) | Up to 60 t | Plasma / Oxy-fuel |
RPC 1200 Mk3 | Up to 1,220 × 430 mm profile envelope | Not specified | Plasma |
RoboRail | Round pipe 25–250 mm; box 25–200 mm | 400 kg infeed / 550 kg outfeed | Plasma |
Model | Pipe Diameter | Maximum Pipe Weight | Cutting |
|---|---|---|---|
ProCutter 600 | 48–610 mm (2″–24″) | 3,000 kg / 6,613 lbs | Plasma / Oxy-fuel |
ProCutter 900 | 48–910 mm (2″–36″) | 4,000 kg / 8,818 lbs | Plasma / Oxy-fuel |
ProCutter 900 RB | Up to approx. 914 mm (36″) | Confirm by configuration | Plasma |

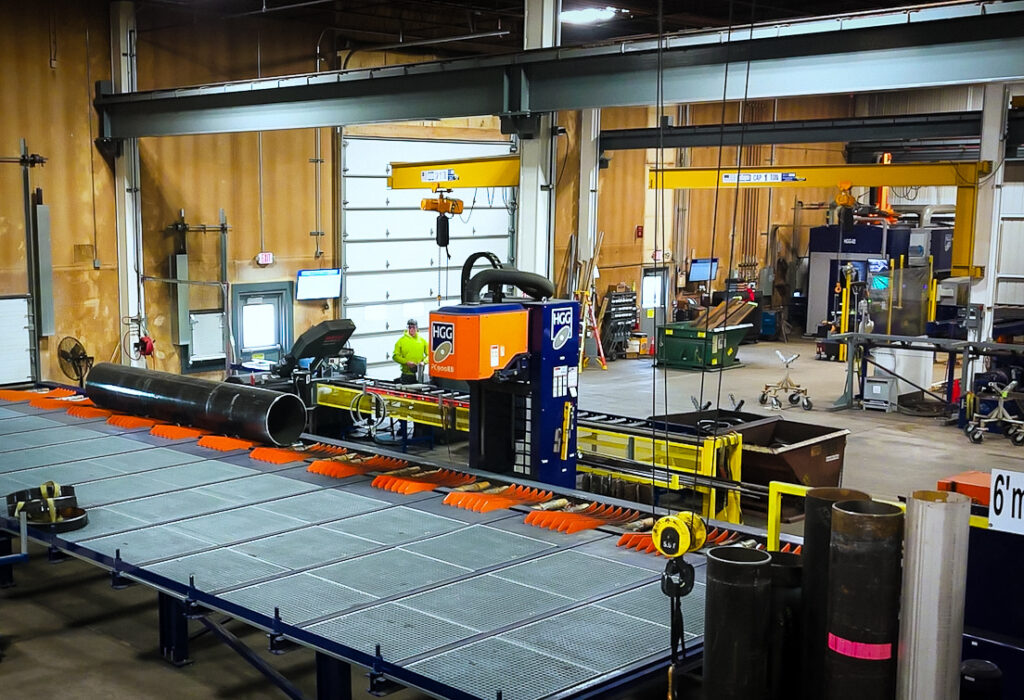

The ProCutter 900 RB features a roller-bed material handling system, side offloading, and a heavy-duty 5.5-ton chuck. The chuck rating should not be treated as the maximum supported pipe weight without confirmation. Please contact us directly to check for your application.
Model | Pipe Diameter | Material Weight |
|---|---|---|
SPC 500 PT | 48–510 mm (2″–20″) | 8 t / 17,636 lbs |
SPC 600 PT | 48–610 mm (2″–24″) | 8 t / 17,636 lbs |
SPC 800 PT | 48–815 mm (2″–32″) | 8 t / 17,636 lbs |
SPC 1000 PT | 48–1,020 mm (2″–40″) | 8–12 t / 17,636–26,455 lbs |
SPC 1200 PT | 48–1,225 mm (2″–48″) | 8–12 t / 17,636–26,455 lbs |
Model | Pipe Diameter | Material Weight |
|---|---|---|
SPC 1500 PT | 100–1,525 mm (4″–60″) | 12–30 t |
SPC 2000 PT | 100–2,035 mm (4″–80″) | 18–30 t |
SPC 2500 PT | 200–2,500 mm (8″–98″) | 30–40 t |
SPC 3000 PT | 300–3,000 mm (12″–118″) | 30–60 t |
SPC 4000 PT | 400–4,000 mm (15½”–160″) | Max 60 t |
Profile Type | Minimum Size | Maximum Size |
|---|---|---|
Bulb Flat | 100 × 55 mm | 420 × 220 mm |
Angle | 70 × 25 mm | 420 × 150 mm |
Flat Bar | 100 × 50 mm | 550 × 200 mm |
T-Bar | 50 mm | 220 mm |
Channel | 75 × 50 mm | 550 × 150 mm |
Beam | 60 mm | 430 mm |
Strip | 60 × 6 mm | 550 × 30 mm |
Specification | Capacity / Capability |
|---|---|
Machine Type | Robotic CNC structural profile cutting |
Supported Profiles | Beams, tubes, angles, channels, square tubes, plates, T-bars, bulb flats |
Published Minimum Profile | 100 × 5 mm (4″ × 0.2″) |
Published Maximum Profile | 1,220 × 430 mm (48″ × 17″) |
Cutting Technology | High-definition plasma |
Marking | Plasma marking |
Plasma Power Source | Hypertherm or Kjellberg |
Measurement | 3D laser measurement |
Software | 3D CAD/CAM integration |
Profile | Minimum Size | Maximum Size |
|---|---|---|
Round Pipe | 25 mm (1″) | 250 mm (10″) |
Square / Rectangular Tube | 25 × 25 mm (1″ × 1″) | 200 × 200 mm (8″ × 8″) |
Channel | 50 × 38 mm | 280 × 95 mm |
Angle | 25 × 25 mm (1″ × 1″) | 200 × 200 mm (8″ × 8″) |
Flat Bar | 10 × 50 mm | 20 × 280 mm |
Material Thickness | 3 mm (⅛”) | 20 mm (¾”) |
Additional Specification | Value |
|---|---|
Maximum Infeed Length | 7,315 mm (24 ft) |
Maximum Outfeed Length | 2,500 mm (approx. 8 ft) |
Maximum Infeed Weight | 400 kg (882 lbs) |
Maximum Outfeed Weight | 550 kg (1,213 lbs) |
Robotic System | Stäubli |
Cutting System | Hypertherm Plasma |
CAD File Support | DSTV / STEP |
Specification | Capability |
|---|---|
Machine Type | CNC Multi-Profile Cutting |
Supported Profiles | Pipe, box sections, flat bars, and compatible structural profiles |
Published Family Pipe Range | 2″–48″ |
Cutting Processes | Plasma / Oxy-fuel |
Measurement | 3D Laser Measurement |
Weld Preparation | X- and K-bevels with transition zones |
Primary Applications | Shipbuilding, offshore, process piping |
Key Advantage | Processing different profiles on one machine |
Founded in the Netherlands in 1984, HGG Group has spent more than four decades advancing CNC cutting and 3D profiling technology for the global steel fabrication industry. What began with the development of automated pipe profiling equipment has grown into a comprehensive range of cutting solutions for structural steel, industrial piping, offshore construction, shipbuilding, and complex fabrication applications.
HGG specializes in transforming digital designs into accurately cut steel components. Its machines combine advanced plasma and oxy-fuel cutting, robotic automation, precision measurement, intelligent material handling, and CAD/CAM integration to simplify demanding fabrication processes.
From compact robotic cutting systems to heavy-duty pipe profiling machines capable of processing extremely large diameters, HGG offers equipment designed to reduce manual layout, improve weld preparation, minimize material waste, and increase production efficiency.
As an authorized HGG partner, Bramac Machinery helps customers evaluate machine capabilities, compare configurations, and select equipment that aligns with their material requirements, production volume, and long-term fabrication goals.
If you don’t see the specific product you need in our catalog, don’t worry! Bramac provides all products from this brand. reach out to us using the form below, and one of our knowledgable product specialists we’ll help you find exactly what you’re looking for.
