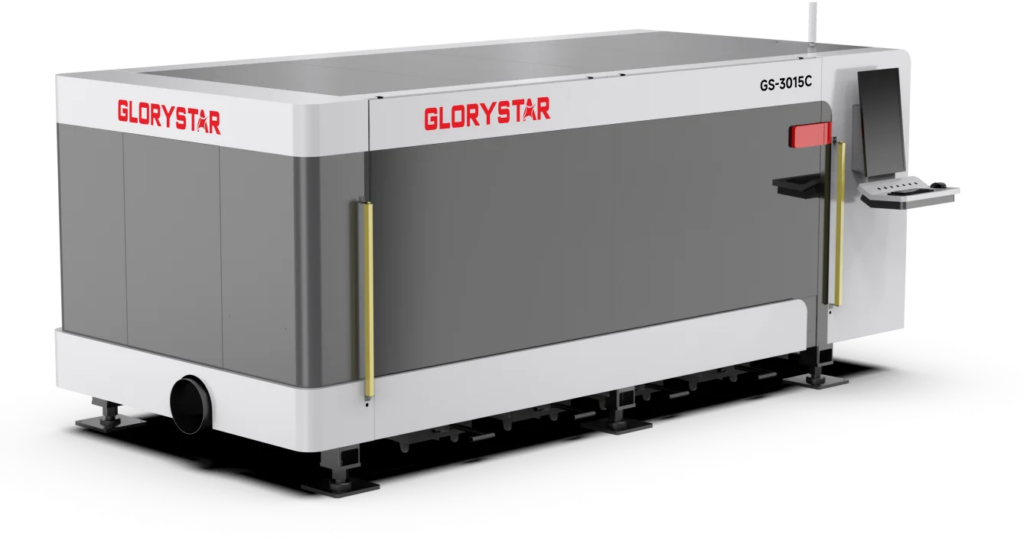

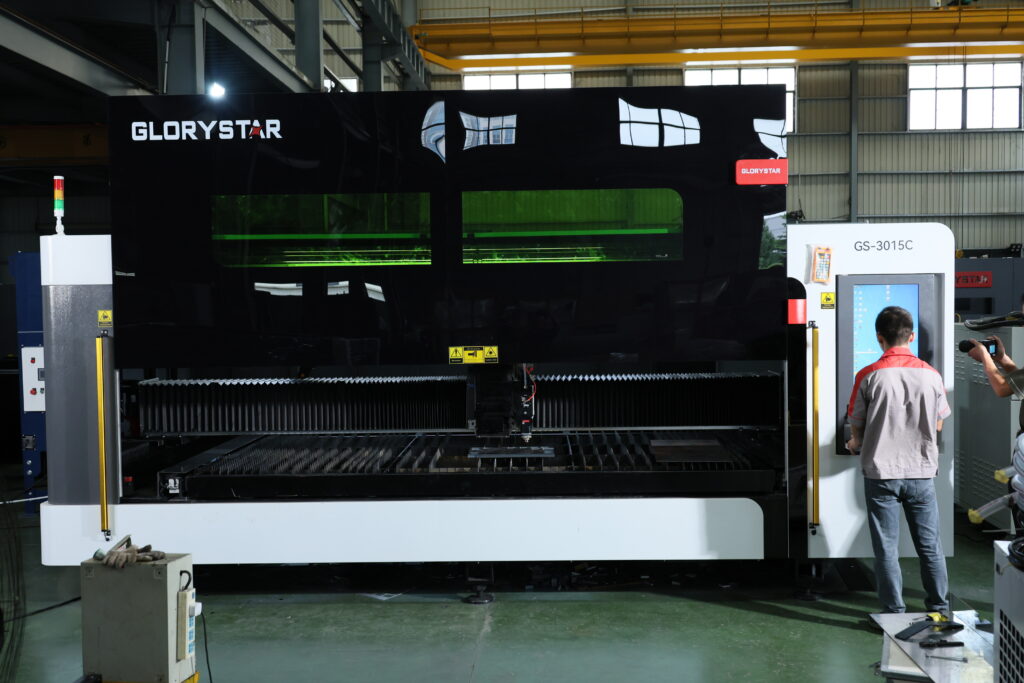

The all-new GS-C Series Fully Protected Lateral Laser Cutting Machine by Glorystar Laser. is a fast, flexible standard model designed for small-batch laser cutting, effortlessly meeting smart processing needs.

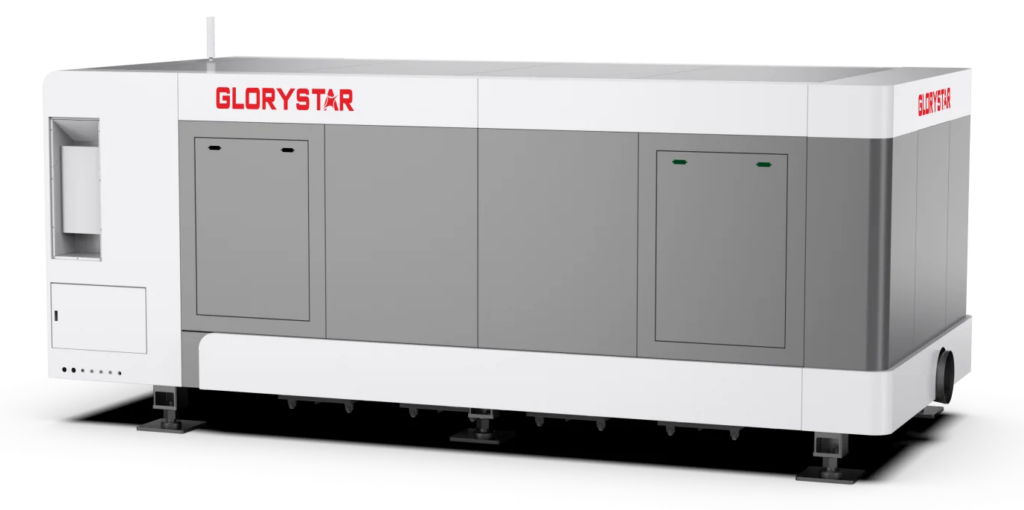

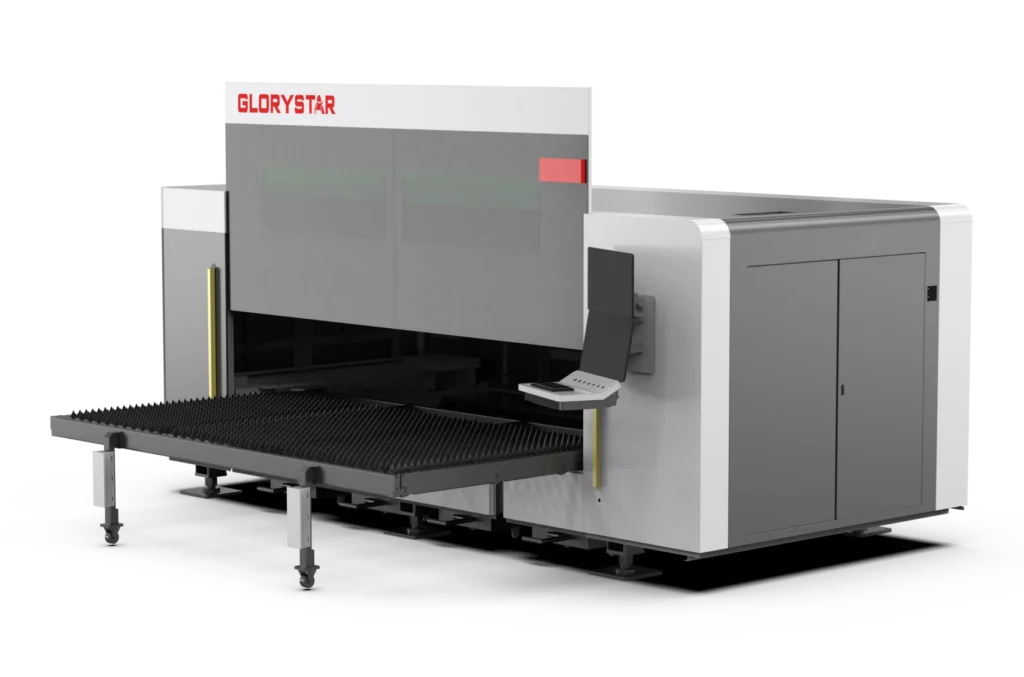

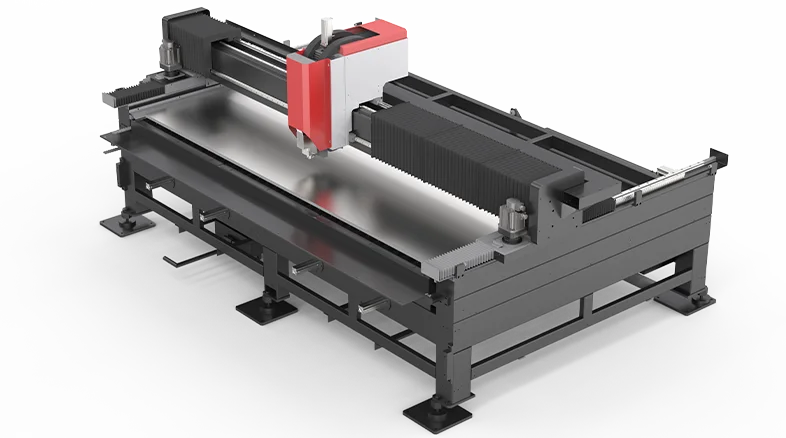

The GS-C series is a compact fully enclosed fiber laser cutting machine designed for safe and efficient sheet metal processing. The machine features a high-strength mortise-and-tenon bed structure that provides excellent rigidity and stability during long cutting cycles. A pull-out worktable simplifies loading and unloading while maintaining operator safety and environmental protection.
GS-1510C | GS-3015C | GS-4020C | |
Table Sizes | 1500x1000mm / 5×3.3ft | 3000x1500mm / 10x5ft | 4000x2000mm / 13.2×6.6ft |
Laser Power | 1.5kW – 6kW | ||
Max Positioning Speed | 140 m/min / 460ft/min | ||
Max Acceleration | 1.5G | ||
Positioning Accuracy | ≤0.03 mm/m / 0.00118in/39.4in | ||
Repeat Position Accuracy | ≤±0.02 mm / 0.00079in | ||
Control | BOCHU CNC | ||
Drive System | Rack & Pinion Dual Drive | ||
Monitor | 27″ LCD | ||
Power Requirement | 380V 3-Phase | ||
Protection Rating | IP51 | ||
A: The GS-C Series can cut carbon steel, stainless steel, aluminum, brass, and other metal sheets with high precision and speed.
A: It supports laser power options ranging from 1.5kW to 6kW. A 6kW Glorystar laser can typically cut steel up to 25mm (approx 1″) carbon steel, and 20mm stainless.
A: Yes, it features a fully enclosed design with a protective cover for safety and improved dust control in industrial settings. In addition, Glorystar Laser products come standard with light curtain sensors, enabling door interlock protection and motor torque monitoring for safer operation.
