GS-CE Series

The GS-CE Series fiber laser cutting machines are fast, flexible, and are offered with a variety of worktable sizes. The GS-CE Series are reliable, fast, cost-effective, and offer outstanding productivity for both thin and thick plates.

get quote
spec sheet

About

Key Features

Benefits

Specification

FAQ's

About GS-CE Series

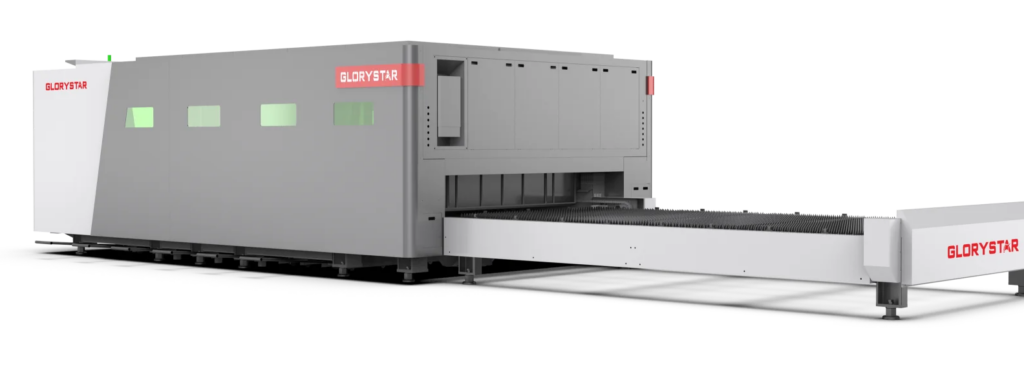

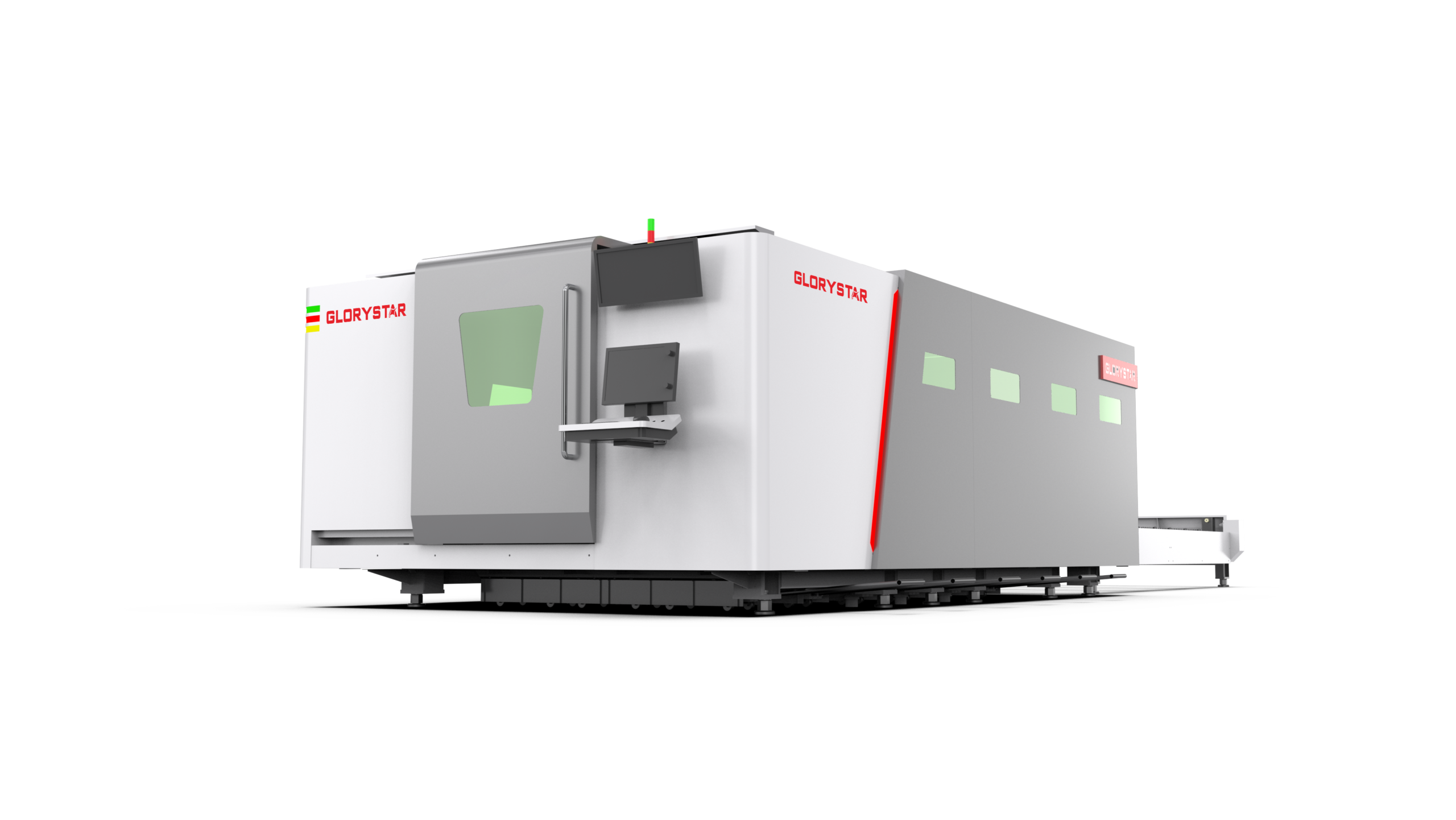

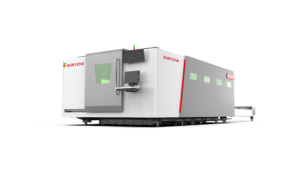

The GS-CE series is a high-speed enclosed fiber laser cutting system with dual exchange worktables designed for continuous sheet metal production. Its aerospace-grade aluminum beam and dual-drive rack-and-pinion system provide high acceleration, stability, and cutting precision. The intelligent dust extraction system and automated lubrication ensure reliable long-term operation in demanding fabrication environments. operator safety and environmental protection.

Learn more

Key Features of the GS-CE Series

reach out

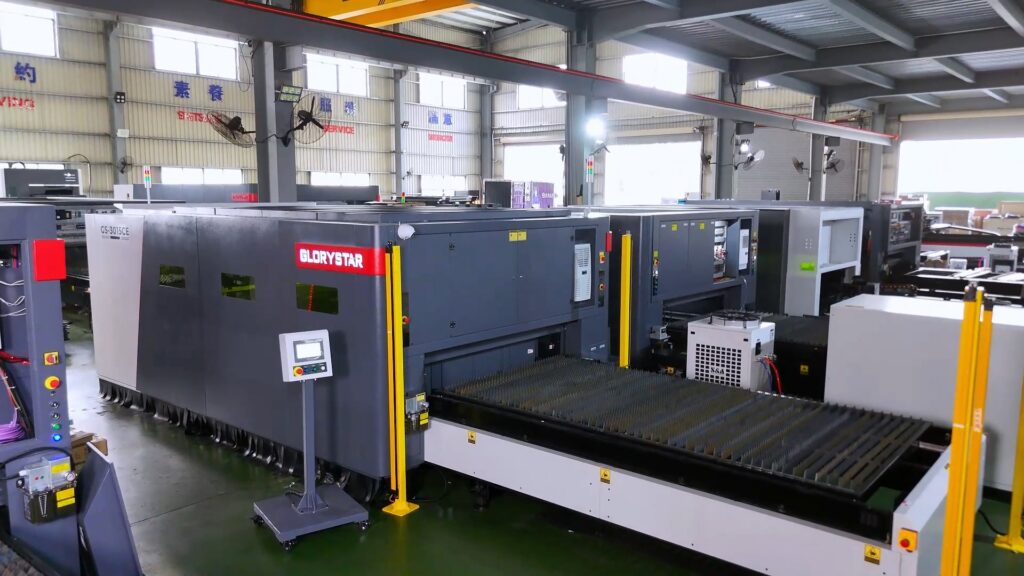

  • Features dual-station exchange platforms. Swap out tables in as little as 15 seconds,  allows operators to safely load and unload material during operation.
  • Glorystar uses oversized and lightweight aerospace grade aluminum beams that are mounted low for optimal performance. They are extremely rigid, minimize thermal deformation, and maintain accuracy over time (supports high-speed acceleration up to 2G.. without sacrificing cutting accuracy).

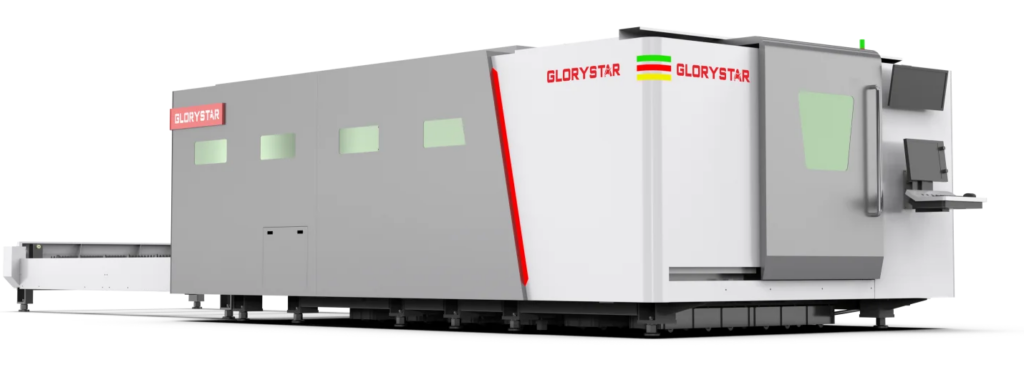

  • A full-enclosure safety guard meets strict European industrial environmental and safety standards. It shields the operator from laser radiation, stray sparks, and reduces noise.
  • Equipped with a zoned, high-suction negative pressure dust removal system that efficiently extracts smoke, debris, cand captures particles before they can contaminate core mechanical components.
  • Employs high-rigidity guide rails and rack-and-pinion drives supported by an automated grease lubrication system, ensuring long-term cutting precision (often up to ± 0.03mm).

Benefits of Choosing GS-CE Series

get quote
  • Additional standard features include beam light curtain collision protection, multi-scenario adaptability, an automatic grease lubrication system, and an MCA electrical box with temperature and humidity control, ensuring comprehensive safety and efficient operation of the equipment.
  • The combination of having an isolated/hollow bed structure, extremely rigid beam and frame, high end components, etc. provide exceptional accuracy as well as resistance to bending, vibration, torsion, and deformation, ensuring long-term stability and accuracy.
  • Glorystar has an extensive global spare-parts network, provides lifetime software updates, and optional process optimization and automation upgrades.

GS-CE Series Specifications

Click the dropdowns below to view detailed specifications for the GS-CE Series.

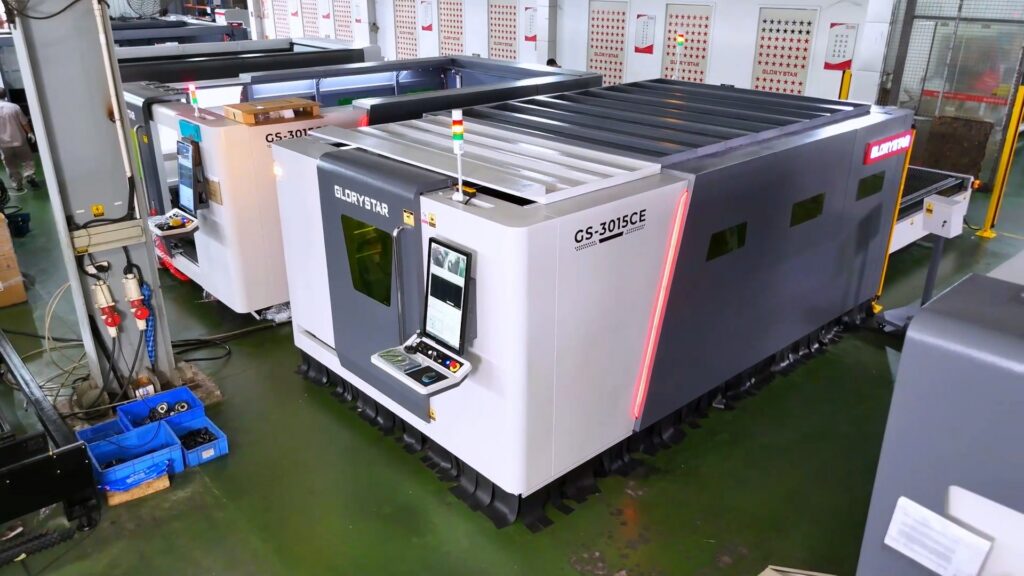

GS-3015CE

GS-4015CE

GS-4020CE

GS-6015CE

GS-6020CE

GS-6025CE

Table Sizes

3000x1500mm / 10x5ft

4000x1500mm / 13x5ft

4000x2000mm / 13x7ft

6000x1500mm / 20x5ft

6000x2000mm / 20x7ft

6000x2500mm / 20x8ft

Laser Power

3kW – 12kW

Max Positioning Speed

170 m/min / 557.8ft/min

Max Acceleration

2.8G

2.8G

2.5G

2.8G

2.5G

2.0G

Positioning Accuracy

≤0.03 mm/m / 0.00118in/39.4in

Repeat Position Accuracy

≤±0.02 mm / 0.00079in

Control

BOCHU CNC

Drive System

Rack & Pinion Dual Drive

Monitor

27″ LCD

Power Requirement

380V 3-Phase

Protection Rating

IP51

GS-CE Series FAQ's

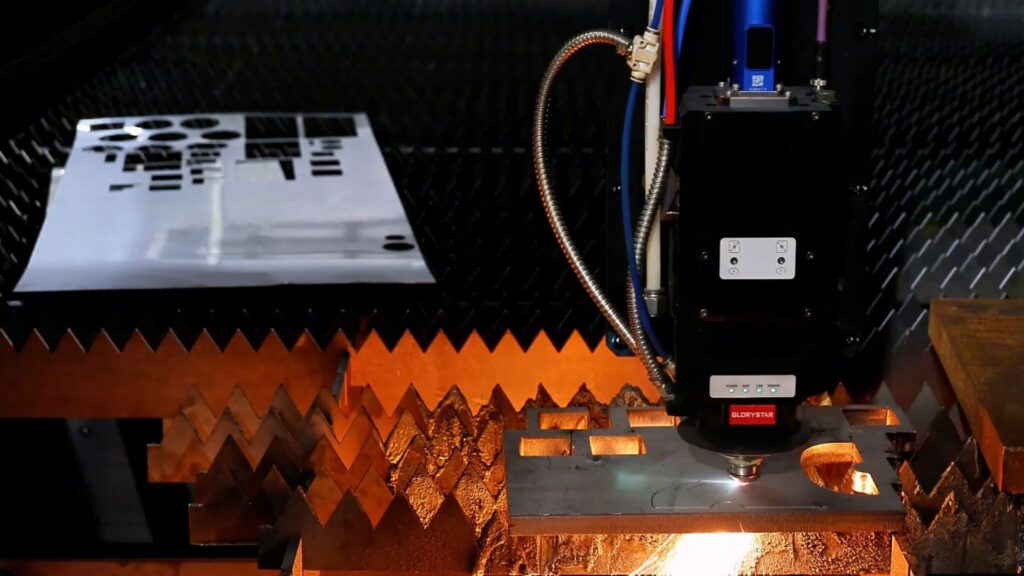

A: The GS-CE Series can cut carbon steel, stainless steel, aluminum, brass, and other metal sheets with high precision and speed.

A: It supports laser power options ranging from 3kW to 12kW. A 6kW Glorystar laser can typically cut steel up to 25mm (approx 1″) carbon steel, and 20mm stainless. While a 12kW laser can typically cutt carbon steel and stainless steel up to 40mm (in production).

A: Yes, it features a fully enclosed design with dual tables. One in operation, one available to load/unload materials. In addition, Glorystar Laser products come standard with light curtain sensors, enabling door interlock protection and motor torque monitoring for safer operation.
