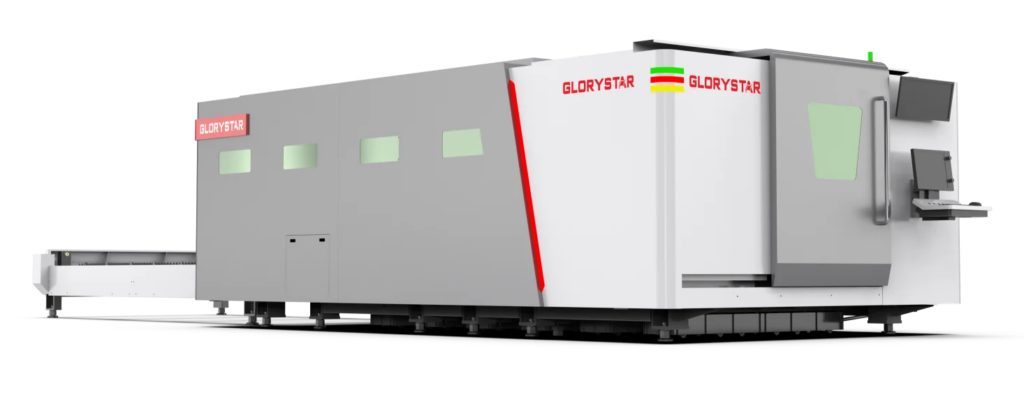

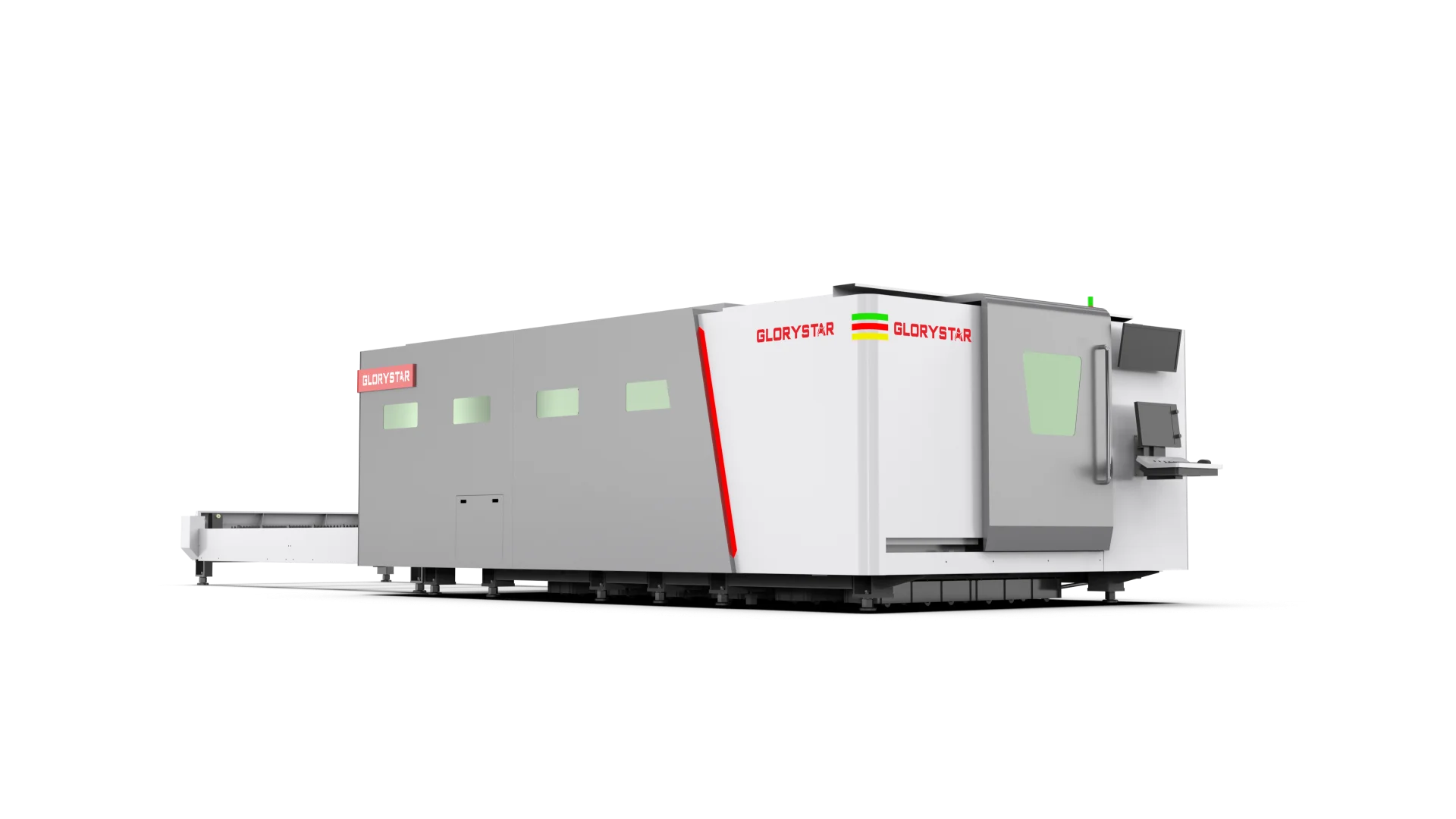

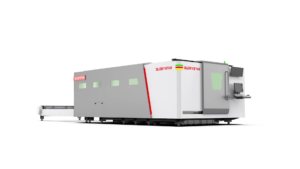

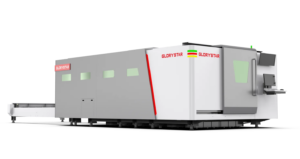

GS-CE Pro Series

The all-new GS-CE Pro Series fiber laser cutting machine, developed by Glorystar Laser , is a fast and flexible standard model designed to meet the demands of high-end laser cutting applications, capable of handling any cutting task.

About

About GS-CE Pro Series

The GS-CE PRO series is a heavy-duty fiber laser cutting system designed for high-volume processing of medium and thick plate materials. A patented dual-support machine bed improves rigidity and prevents deformation under heavy loads while maintaining high accuracy during long production runs. The 15-second dual exchange table enables simultaneous cutting and loading for maximum productivity.

Key Features of the GS-CE Pro Series

The GS-CE Pro Series offers multiple table sizes (3015, 4020, 6015, 6020, 6025, 8025, 12025) to suit various processing needs
Aerospace grade aluminum cross-sectional beam (industries largest), dual-drive rack-and-pinion system provide high acceleration, stability, and extreme accuracy.
Dual exchange worktables designed for continuous sheet metal production.
Intelligent dust removal system with 8 to 30 fully automated, high-suction negative-pressure dust extraction zones, provides thorough cleaning and smooth smoke extraction to the cutting area.
Its patented hollow bed structure inherently prevents risks from heavy loads and thermal deformation, resolving stability issues in medium-to-thick plate processing.

Benefits of Choosing GS-CE Pro Series

Additional standard features include beam light curtain collision protection, multi-scenario adaptability, an automatic grease lubrication system, and an MCA electrical box with temperature and humidity control, ensuring comprehensive safety and efficient operation of the equipment.
The combination of having an isolated/hollow bed structure, extremely rigid beam and frame, high end components, etc. provide exceptional accuracy as well as resistance to bending, vibration, torsion, and deformation, ensuring long-term stability and accuracy.
Glorystar has an extensive global spare-parts network, provides lifetime software updates, and optional process optimization and automation upgrades.

GS-CE Pro Series Specifications

Click the dropdowns below to view detailed specifications for the GS-CE Pro Series.

GS-CE Pro Series (Cover Exchanged Fiber Laser Sheet Cutting Machine) Specifications

	GS-3015CE PRO	GS-4020CE PRO	GS-6020CE PRO	GS-6025CE PRO	GS-8025CE PRO	GS-12025CE PRO
Table Sizes	3000x1500mm / 10x5ft	4000x2000mm / 13x7ft	6000x2000mm / 20x5ft	6000x2500mm / 20x8ft	8000x2500mm / 26x8ft	12000x2500mm / 40x8ft
Laser Power	12kW – 40kW
Max Positioning Speed	190 m/min / 624.5ft/min
Max Acceleration	4.0G	3.5G	3.5G	3G	2.8G	2.8G
Positioning Accuracy	≤0.03 mm/m / 0.00118in/39.4in
Repeat Position Accuracy	≤±0.02 mm / 0.00079in
Control	BOCHU CNC
Drive System	Rack & Pinion Dual Drive
Monitor	27″ LCD
Power Requirement	380V 3-Phase
Protection Rating	IP51

GS-CE Pro Series FAQ's

Q: What materials can the GS-CE Pro Series cut?

A: The GS-CE Pro Series can cut carbon steel, stainless steel, aluminum, brass, and other metal sheets with high precision and speed.

Q: What power options are available?

A: It supports laser power options ranging from 12kW to 40kW. A 12kW Glorystar laser can typically cut carbon steel and stainless steel up to 40mm (in production). While a 40kW (specifically the NS-CE series) can cut metal plates up to 10mm (approx 4″ thick).

Q: Is the GS-CE Pro Series machine fully enclosed? What safety features are included?

A: Yes, it features a fully enclosed design with dual tables. One in operation, one available to load/unload materials. In addition, Glorystar Laser products come standard with light curtain sensors, enabling door interlock protection and motor torque monitoring for safer operation.
