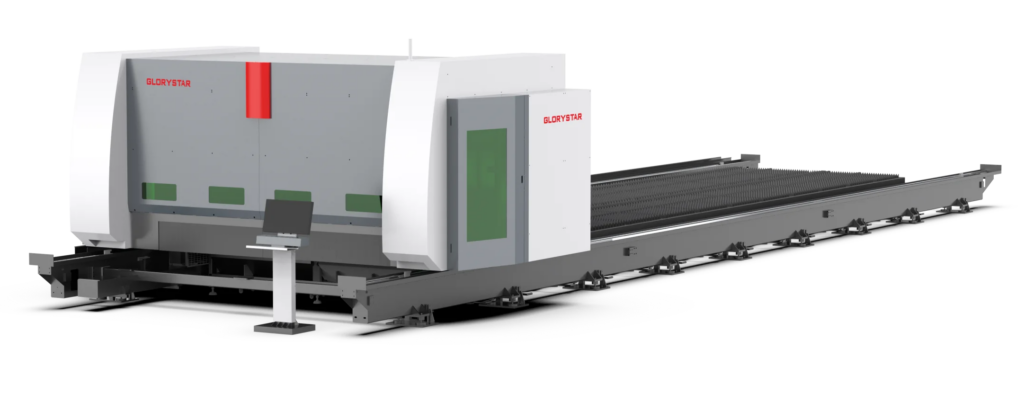

GS-CL Series

The all-new GS-CL Series features a modular split bed structure for reliable cutting with heavy plate. GS-CL also supports high-power cutting (up to 40kW+) with optional beveling, segmented/efficient dust removal, and a low center of gravity rigid beam for rapid acceleration/improved cycle times and accuracy.

About

About GS-CL Series

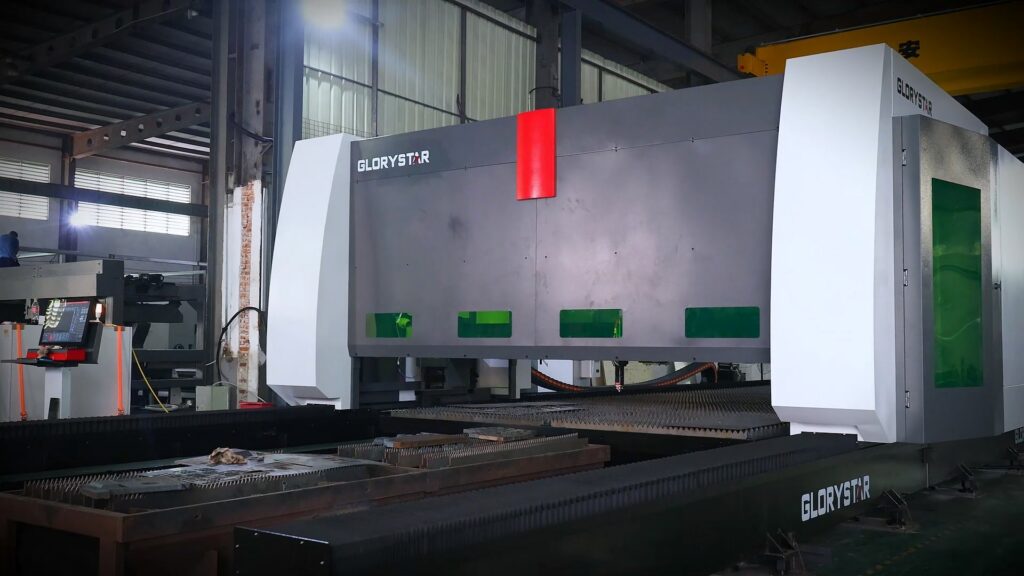

The GS-CL series is an ultra-large format fiber laser designed for oversized sheet processing in industries such as structural steel, shipbuilding, and heavy fabrication. Its modular split-bed design allows customizable working lengths while maintaining structural rigidity and precision. Optional multi-axis bevel cutting expands processing capabilities for complex structural components.

Key Features of the GS-CL Series

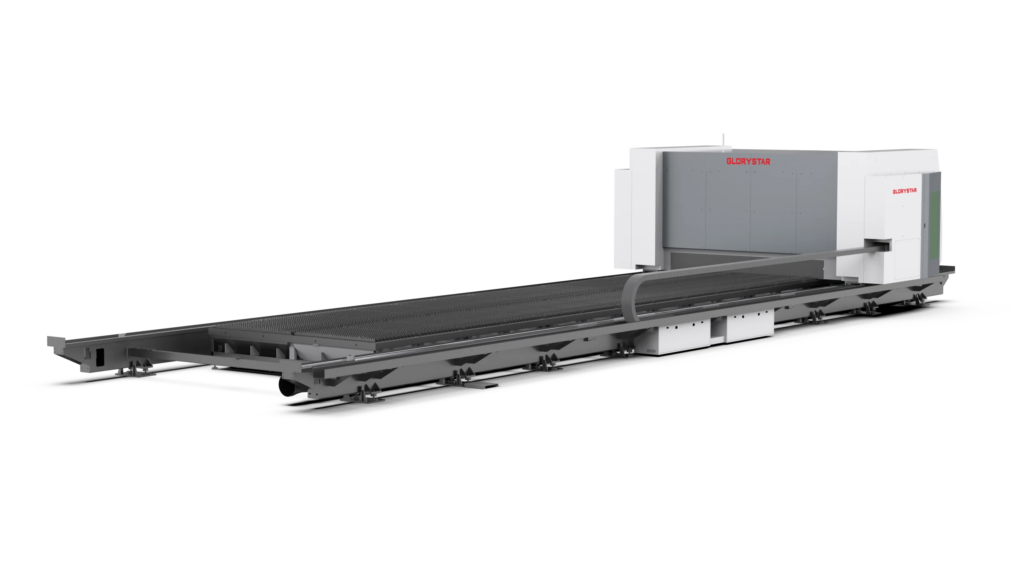

Extra-Large Modular Bed: Features a segmented, gantry-type, heavy-duty bed allowing for unlimited ultra-large format customization and easy replacement of worn sections to minimize downtime.
High-Speed Drive System: Equipped with industry-leading servo motors and a precision rack-and-pinion/ball screw system for high positioning speeds and swift, precise acceleration.
Exceptional Z-Axis Capacity: Provides unmatched Z-axis travel, making it highly capable of cutting square tubes, channel steel, and thick custom profiles.
Advanced Bevel Cutting: Features an optional AB swing axis for V, Y, X, and custom bevel profiles, enabling one-step bevel formation to save time and post-processing costs.
Intelligent Collision Detection: Built with an exclusive smart collision detection system to protect the cutting head and ensure advanced operational safety.
Fully Enclosed Enclosure & Fume Extraction: Designed with a protective enclosure to shield operators, coupled with a zoned and ducted dust extraction system to keep the cutting area clean and safe.
Smart Maintenance & Automation: Utilizes a fully automatic lubrication system to reduce manual maintenance and an intuitive software system featuring electric focusing, capacitive edge-finding, and power-off memory.
High-Efficiency Beam Design: Employs a low-center-of-gravity, high-rigidity beam that ensures structural stability, preventing thermal deformation even during continuous, high-power cutting.

Benefits of Choosing GS-CL Series

Additional standard features include beam light curtain collision protection, multi-scenario adaptability, an automatic grease lubrication system, and an MCA electrical box with temperature and humidity control, ensuring comprehensive safety and efficient operation of the equipment.
The combination of having an isolated/hollow bed structure, extremely rigid beam and frame, high end components, etc. provide exceptional accuracy as well as resistance to bending, vibration, torsion, and deformation, ensuring long-term stability and accuracy.
Glorystar has an extensive global spare-parts network, provides lifetime software updates, and optional process optimization and automation upgrades.

GS-CL Series Specifications

Click the dropdowns below to view detailed specifications for the GS-CL Series.

GS-CL Series (Ultra Large Format Fiber Laser) Specifications

	GS-13030CL	GS-16035Cl	GS-25035L
Table Sizes	13000×3000 mm / 40x10ft Bevel Cutting: 12500x2500mm / 41x8ft	16000x35000mm / 52x11ft Bevel Cutting: 15500x3000mm / 49x10ft	25000x3500mm / 82x11ft Bevel Cutting: 24500x3000mm / 80x10ft
Laser Power	12kW – 60kW
Max Positioning Speed	75 m/min / 246ft/min
Max Acceleration	0.5G
Positioning Accuracy	≤0.03 mm/m / 0.00118in/39.4in
Repeat Position Accuracy	≤±0.02 mm / 0.00079in
Control	BOCHU CNC
Drive System	Rack & Pinion Dual Drive
Monitor	27″ LCD
Power Requirement	380V 3-Phase
Protection Rating	IP51

GS-CL Pro Series FAQ's

Q: What materials can the GS-CL Pro Series cut?

A: The GS-CL Series can cut carbon steel, stainless steel, aluminum, brass, and other metal sheets with high precision and speed.

Q: What power options are available?

A: It supports laser power options ranging from 12kW to 60kW. A 12kW Glorystar laser can typically cut carbon steel and stainless steel up to 40mm (in production). While a 40kW (specifically the NS-CE series) can cut metal plates up to 10mm (approx 4″ thick).

Q: Is the GS-CL Pro Series machine fully enclosed? What safety features are included?

A: The GS-CL Series features flexible design options, offering both fully enclosed and semi-enclosed configurations depending on your specific safety and accessibility requirements. The full enclosure provides a light-tight environment that protects operators from laser reflections, eliminating the need for constant safety goggles. Built-in smoke and dust filtration systems keep the surrounding air clean and breathable. It is also outfitted with multi-point safety sensors and physical guards that monitor access points during operation.
