Servo Presses

Direct-drive servo presses engineered to combine the high-speed productivity of mechanical presses with programmable tonnage and slide control of hydraulic systems. Ranging from 80 to 2,750 tons, these machines deliver unmatched flexibility and precision for all your stamping needs.

About

About SEYI Servo Presses

SEYI has delivered industry-leading stamping press solutions for nearly six decades. By combining advanced servo technology with outstanding service and a worldwide support network, SEYI remains the premier choice for efficient and precision-driven metal forming.

Key Features of SEYI Servo Presses

SEYI servo presses integrate a direct-drive, high-torque in-house servo motor with fully programmable slide motions and built-in power management. This engineered system delivers the high-speed forming capabilities of mechanical presses combined with the extreme precision and adjustable stroke profiles typical of hydraulic systems.

Benefits of Choosing SEYI Servo Presses

SEYI servo presses maximize manufacturing efficiency by combining fully programmable slide control with low-speed, high-torque direct drive technology. This allows operators to consolidate multiple production stages, reduce tool wear, and cut energy consumption by up to 50% compared with traditional presses.

Servo Press Specifications

Click the dropdowns below to view detailed specifications for the Servo Presses.

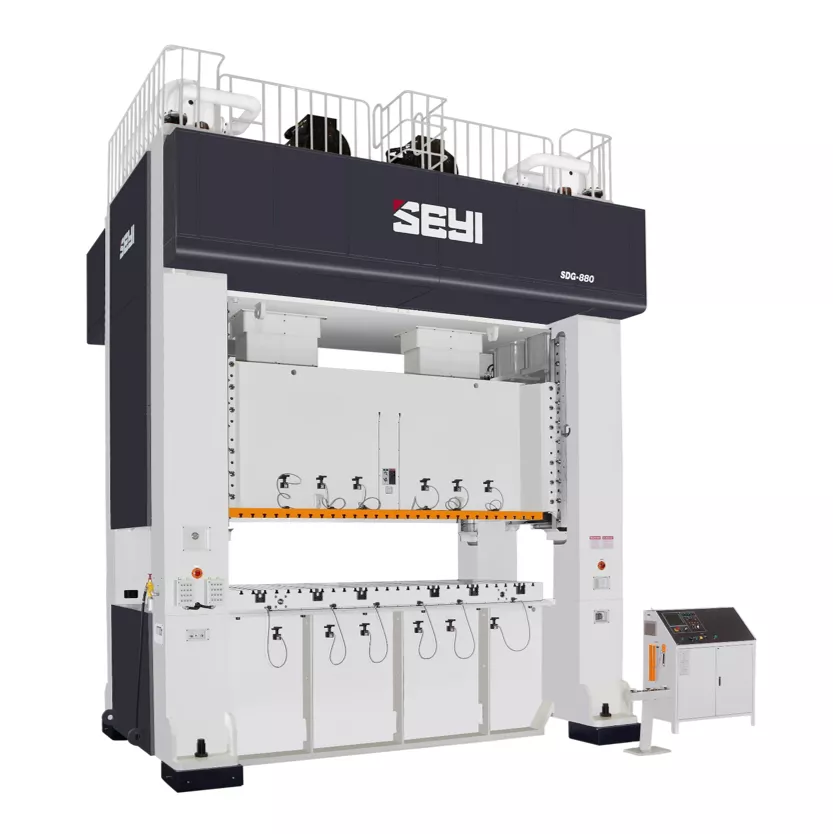

SDG Series｜Straight Side Crank Servo Press (SDG2-400~1200 / SDG4-400~2400 Specifications)

The best features for model SDG includes drawing, forming, blanking, punching and cutting of automotive parts, which comply and satisfy the trend and application of steel parts with light weight but high tensile strength in modern automotive industry. In addition, by combining progressive die with pendulum curve, the productivity can possibly be doubled, which saves more than 50% of energy.

Model				SDG2-400	SDG2-600	SDG2-800	SDG2-1000	SDG2-1200
Capacity			U.S. ton	440	660	880	1100	1320
Stroke Length			in	13.78	13.78	13.78	15.75	15.75
Pendulum Motion Stroke Length			in	3.94	3.94	3.94	3.94	3.94
Strokes per Minute			SPM	~50	~50	~50	~50	~50
Pendulum Motion Strokes per Minute			SPM	~ 74	~ 74	~ 74	~ 72	~ 72
Tonnage Rating Point			in	0.26	0.26	0.26	0.26	0.26
Die Height			in	27.56	27.56	31.50	31.50	31.50
Slide Adjustment			in	9.84	9.84	11.81	11.81	11.81
Slide Area (LR × FB)	1		in	98.43×55.12	98.43×61.02	110.24×61.02	122.05×61.02	133.86×61.02
	2			110.24×55.12	110.24×61.02	122.05×61.02	133.86×61.02	145.67×61.02
	3			122.05×55.12	122.05×61.02	133.86×61.02	145.67×61.02	157.48×61.02
	4			133.86×55.12	133.86×61.02	145.67×61.02	157.48×61.02	169.29×61.02
Bolster Area (LR × FB)	1		in	98.43×55.12	98.43×61.02	110.24×61.02	122.05×61.02	133.86×61.02
	2			110.24×55.12	110.24×61.02	122.05×61.02	133.86×61.02	145.67×61.02
	3			122.05×55.12	122.05×61.02	133.86×61.02	145.67×61.02	157.48×61.02
	4			133.86×55.12	133.86×61.02	145.67×61.02	157.48×61.02	169.29×61.02
Bolster Thickness			in	7.09	9.84	9.84	9.84	11.81
Window Opening	Bolster Only	(FB × UD)	in	43.31×23.62	51.18×23.62	59.06×27.56	59.06×27.56	59.06×27.56
	Front to Back Rolling Bolster			43.31×23.62	51.18×23.62	59.06×27.56	59.06×27.56	59.06×27.56
	Left to Right Rolling Bolster			66.93×31.50	72.83×31.50	72.83×35.43	72.83×35.43	72.83×35.43
Max. Upper Die Weight			LBS	8818	11023	12125	13228	15432
Required Air Pressure			PSI	71	71	71	71	71
Bolster Height	Fixed Bolster		in	33.46	33.46	33.46	33.46	33.46
Bolster Height	Rolling Bolster		in	25.98	25.98	25.98	29.13	29.13
Die Cushion	Type			Cylinder	Cylinder	Cylinder*	Cylinder*	Cylinder*
	Capacity		U.S ton	66	110	132**	165	165
	Stroke Length		in	7.87	7.87	8.66	8.66	8.66
	Adjustment		in	7.87	7.87	8.66	8.66	8.66
Cushion Pad Area (LR × FB)	1		in	78.74×35.43	78.74×37.40	90.55×51.18	102.36×51.18	114.17×51.18
	2			90.55×35.43	90.55×37.40	102.36×51.18	114.17×51.18	125.98×51.18
	3			102.36×35.43	102.36×37.40	114.17×51.18	125.98×51.18	137.80×51.18
	4			114.17×35.43	114.17×37.40	125.98×51.18	137.80×51.18	149.61×51.18

Model				SDG4-440	SDG4-550	SDG4-660	SDG4-880	SDG4-1100
Capacity			U.S. ton	440	550	660	880	1100
Stroke Length			in	13.78	13.78	13.78	13.78	15.75
Strokes per Minute			SPM	~50	~50	~50	~50	~50
Tonnage Rating Point			in	0.26	0.26	0.26	0.26	0.26
Die Height			in	27.56	27.56	27.56	31.50	31.50
Slide Adjustment			in	9.84	9.84	9.84	11.81	11.81
Slide Area (LR × FB)	1		in	98.43×78.74	98.43×78.74	98.43×78.74	110.24×86.61	122.05×86.61
	2			110.24×78.74	110.24×78.74	110.24×78.74	122.05×86.61	133.86×86.61
	3			122.05×78.74	122.05×78.74	122.05×78.74	133.86×86.61	145.67×86.61
	4			133.86×78.74	133.86×78.74	133.86×78.74	145.67×86.61	157.48×86.61
Bolster Area (LR × FB)	1		in	98.43×78.74	98.43×78.74	98.43×78.74	110.24×86.61	122.05×86.61
	2			110.24×78.74	110.24×78.74	110.24×78.74	122.05×86.61	133.86×86.61
	3			122.05×78.74	122.05×78.74	122.05×78.74	133.86×86.61	145.67×86.61
	4			133.86×78.74	133.86×78.74	133.86×78.74	145.67×86.61	157.48×86.61
Bolster Thickness			in	7.09	7.09	9.84	9.84	9.84
Window Opening	Bolster Only	(FB × UD)	in	70.87×23.62	70.87×23.62	70.87×23.62	78.74×27.56	78.74×27.56
	Front to Back Rolling Bolster			70.87×23.62	70.87×23.62	70.87×23.62	78.74×27.56	78.74×27.56
	Left to Right Rolling Bolster			90.55×31.50	90.55×31.50	90.55×31.50	98.43×35.43	98.43×35.43
Max. Upper Die Weight			LBS	17636	17636	19841	22046	22046
Required Air Pressure			PSI	71	71	71	71	71
Bolster Height	Fixed Bolster		in	25.98	25.98	25.98	25.98	29.13
Bolster Height	Rolling Bolster		in	25.98	25.98	25.98	25.98	29.13
Die Cushion	Type			Cylinder	Cylinder	Cylinder	Cylinder	Cylinder
	Capacity		U.S. ton	66	88	110	132*	165
	Stroke Length		in	7.87	7.87	7.87	8.66	8.66
	Adjustment		in	7.87	7.87	7.87	8.66	8.66
Cushion Pad Area (LR × FB)	1		in	78.74×51.18	78.74×51.18	78.74×51.18	90.55×59.06	102.36×59.06
	2			90.55×51.18	90.55×51.18	90.55×51.18	102.36×59.06	114.17×59.06
	3			102.36×51.18	102.36×51.18	102.36×51.18	114.17×59.06	125.98×59.06
	4			114.17×51.18	114.17×51.18	114.17×51.18	125.98×59.06	137.80×59.06

Model				SDG4-1320	SDG4-1760	SDG4-2200	SDG4-2640
Capacity			U.S. ton	1320	1760	2200	2640
Stroke Length			in	15.75	17.72	17.72	17.72
Strokes per Minute			SPM	~50	~40	~40	~40
Tonnage Rating Point			in	0.26	0.26	0.26	0.26
Die Height			in	31.50	35.43	39.37	39.37
Slide Adjustment			in	11.81	11.81	11.81	11.81
Slide Area (LR × FB)	1		mm	133.86×86.61	133.86×86.61	157.48×86.61	157.48×86.61
	2			145.67×86.61	145.67×86.61	169.29×86.61	169.29×86.61
	3			157.48×86.61	157.48×86.61	181.10×86.61	181.10×86.61
	4			169.29×86.61	169.29×86.61	192.91×86.61	192.91×86.61
Bolster Area (LR × FB)	1		in	133.86×86.61	133.86×86.61	157.48×86.61	157.48×86.61
	2			145.67×86.61	145.67×86.61	169.29×86.61	169.29×86.61
	3			157.48×86.61	157.48×86.61	181.10×86.61	181.10×86.61
	4			169.29×86.61	169.29×86.61	192.91×86.61	192.91×86.61
Bolster Thickness			in	11.81	11.81	11.81	11.81
Window Opening	Bolster Only	(FB × UD)	in	78.74×27.56	78.74×31.50	78.74×35.43	78.74×35.43
	Front to Back Rolling Bolster			78.74×27.56	78.74×31.50	78.74×35.43	78.74×35.43
	Left to Right Rolling Bolster			98.43×35.43	98.43×39.37	98.43×43.31	98.43×43.31
Max. Upper Die Weight			LBS	24250	28660	33069	44092
Required Air Pressure			PSI	71	71	71	71
Bolster Height	Fixed Bolster		in	29.13	29.13	29.13	29.13
Bolster Height	Rolling Bolster		in	29.13	29.13	29.13	29.13
Die Cushion	Type			Cylinder	Cylinder	Cylinder	Cylinder
	Capacity		U.S. ton	165	220	262	330
	Stroke Length		in	8.66	8.66	8.66	9.84
	Adjustment		in	8.66	8.66	8.66	9.84
Cushion Pad Area (LR × FB)	1		in	114.17×59.06	114.17×59.06	137.80×59.06	137.80×59.06
	2			125.98×59.06	125.98×59.06	149.61×59.06	149.61×59.06
	3			137.80×59.06	137.80×59.06	161.42×59.06	161.42×59.06
	4			149.61×59.06	149.61×59.06	173.23×59.06	173.23×59.06

* For selecting 132ton, 165ton and 220ton air cylinder die cushions, bolster area in FB should be at least 1700mm, cushion area in FB should be 1300mm.

** For SDG2-880-1, only 110ton die cushion is available.

* For SDG4-880-1, only 110ton die cushion is available.

※ This specification is subject to change without notice.

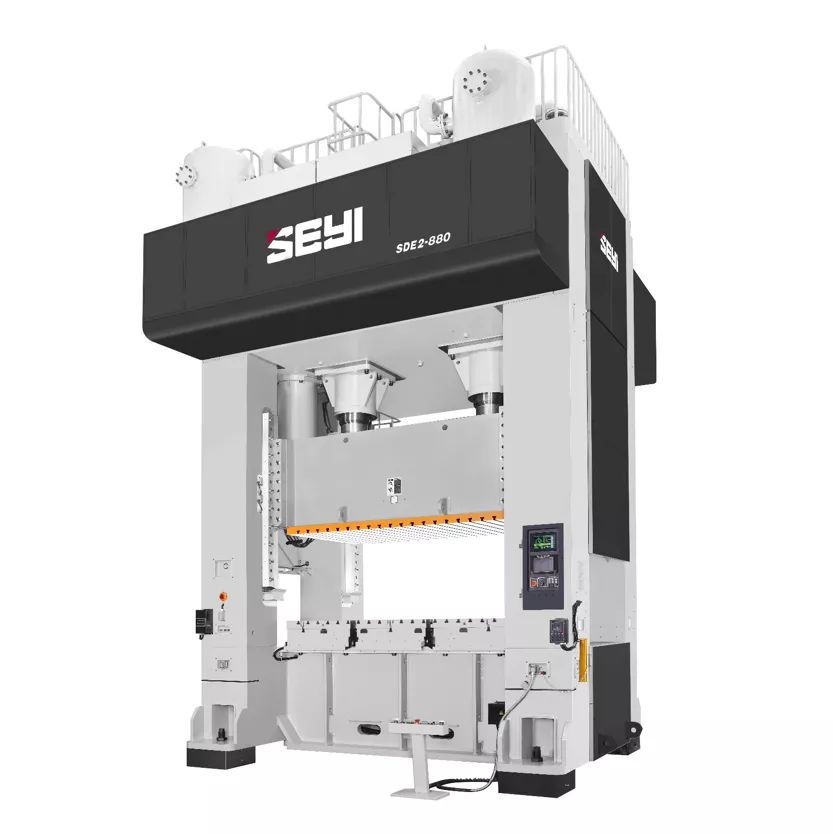

SDE Series｜Straight Side Eccentric Gear Servo Press (SDE2-400~1200 / SDE4-400~2400 Specifications)

The best features for model SDE includes drawing, forming, blanking, punching and cutting of automotive parts, which comply and satisfy the trend and application of steel parts with light weight but high tensile strength in modern automotive industry. In addition, by combining progressive die with pendulum curve, the productivity can be doubled, which saves more than 50% of energy.

Model				SDE2-440	SDE2-660	SDE2-880	SDE2-1100	SDE2-1320
Capacity			U.S. ton	440	660	880	1100	1320
Stroke Length			in	23.62	23.62	31.50	31.50	31.50
Strokes per Minute			SPM	~30	~30	~25	~25	~25
Tonnage Rating Point			in	0.51	0.51	0.51	0.51	0.51
Die Height			in	27.56	31.50	39.37	39.37	43.31
Slide Adjustment			in	11.81	15.75	19.69	19.69	19.69
Slide Area (LR × FB)	1		in	98.43×55.12	98.43×61.02	110.24×66.93	122.05×66.93	133.86×66.93
	2			110.24×55.12	110.24×61.02	122.05×66.93	133.86×66.93	145.67×66.93
	3			122.05×55.12	122.05×61.02	133.86×66.93	145.67×66.93	157.48×66.93
	4			133.86×55.12	133.86×61.02	145.67×66.93	157.48×66.93	169.29×66.93
	1		in	98.43×55.12	98.43×61.02	110.24×66.93	122.05×66.93	133.86×66.93
	2			110.24×55.12	110.24×61.02	122.05×66.93	133.86×66.93	145.67×66.93
	3			122.05×55.12	122.05×61.02	133.86×66.93	145.67×66.93	157.48×66.93
	4			133.86×55.12	133.86×61.02	145.67×66.93	157.48×66.93	169.29×66.93
Bolster Thickness			in	7.09	9.84	9.84	9.84	11.81
Window Opening	Bolster Only	FB × UD	in	47.24×23.62	53.15×27.56	59.06×35.43	59.06×35.43	59.06×39.37
	Front to Back Rolling Bolster			47.24×23.62	53.15×27.56	59.06×35.43	59.06×35.43	59.06×39.37
	Left to Right Rolling Bolster			66.93×31.50	72.83×35.43	78.74×43.31	78.74×43.31	78.43×47.24
Max. Upper Die Weight			LBS	11023	13228	15432	15432	17637
Required Air Pressure			PSI	71	71	71	71	71
Bolster Height	Fixed Bolster		in	33.46	33.46	33.46	33.46	33.46
Bolster Height	Rolling Bolster		in	25.98	25.98	25.98	29.13	29.13
Die Cushion	Type			Cylinder	Cylinder	Cylinder	Cylinder	Cylinder
	Capacity		U.S. ton	66	110	132	165	165
	Stroke Length		in	7.87	7.87	8.66	8.66	8.66
	Adjustment		in	7.87	7.87	8.66	8.66	8.66
Cushion Pad Area (LR × FB)	1		in	78.74×35.43	7.874×37.40	90.55×51.18	102.36×51.18	114.17×51.18
	2			90.55×35.43	90.55×37.40	102.36×51.18	114.17×51.18	125.98×51.18
	3			102.36×35.43	102.36×37.40	114.17×51.18	125.98×51.18	137.80×51.18
	4			114.17×35.43	114.17×37.40	125.98×51.18	137.80×51.18	149.61×51.18

Model				SDE4-440	SDE4-550	SDE4-660	SDE4-880	SDE4-1100
Capacity			U.S. ton	440	550	660	880	1100
Stroke Length			in	23.62	23.62	23.62	31.50	31.50
Strokes per Minute			SPM	~30	~30	~30	~25	~20
Tonnage Rating Point			in	0.51	0.51	0.51	0.51	0.51
Die Height			in	27.56	31.50	31.50	39.37	39.37
Slide Adjustment			in	11.81	15.75	15.75	15.75	15.75
Slide Area (LR × FB)	1		in	98.43×78.74	98.43×78.74	98.43×78.74	110.24×86.61	122.05×86.61
	2			110.24×78.74	110.24×78.74	110.24×78.74	122.05×86.61	133.86×86.61
	3			122.05×78.74	122.05×78.74	122.05×78.74	133.86×86.61	145.67×86.61
	4			133.86×78.74	133.86×78.74	133.86×78.74	145.67×86.61	157.48×86.61
Bolster Area (LR × FB)	1		in	98.43×78.74	98.43×78.74	98.43×78.74	110.24×86.61	122.05×86.61
	2			110.24×78.74	110.24×78.74	110.24×78.74	122.05×86.61	133.86×86.61
	3			122.05×78.74	122.05×78.74	122.05×78.74	133.86×86.61	145.67×86.61
	4			133.86×78.74	133.86×78.74	133.86×78.74	145.67×86.61	157.48×86.61
Bolster Thickness			in	7.09	7.09	9.84	9.84	9.84
Window Opening	Bolster Only	FB × UD	in	70.87×23.62	70.87×27.56	70.87×27.56	78.74×35.43	78.74×35.43
	Front to Back Rolling Bolster			70.87×23.62	70.87×27.56	70.87×27.56	78.74×35.43	78.74×35.43
	Left to Right Rolling Bolster			90.55×31.50	90.55×35.43	90.55×35.43	98.43×43.31	98.43×43.31
Max. Upper Die Weight			LBS	17636	17636	19841	22046	22046
Required Air Pressure			PSI	71	71	71	71	71
Bolster Height	Fixed Bolster		in	25.98	25.98	25.98	25.98	29.13
Bolster Height	Rolling Bolster		in	25.98	25.98	25.98	25.98	29.13
Die Cushion	Type			Cylinder	Cylinder	Cylinder	Cylinder	Cylinder
	Capacity		U.S. ton	66	88	110	132*	165
	Stroke Length		in	7.87	7.87	7.87	8.66	8.66
	Adjustment		in	7.87	7.87	7.87	8.66	8.66
Cushion Pad Area (LR × FB)	1		in x in	78.74×51.18	78.74×51.18	78.74×51.18	90.55×59.06	102.36×59.06
	2			90.55×51.18	90.55×51.18	90.55×51.18	102.36×59.06	114.17×59.06
	3			102.36×51.18	102.36×51.18	102.36×51.18	114.17×59.06	125.98×59.06
	4			114.17×51.18	114.17×51.18	114.17×51.18	125.98×59.06	137.80×59.06

Model				SDE4-1320	SDE4-1760	SDE4-2200	SDE4-2640
Capacity			U.S. ton	1320	1760	2200	2640
Stroke Length			in	31.50	31.50	35.43	39.37
Strokes per Minute			SPM	~20	~20	~20	~20
Tonnage Rating Point			in	0.51	0.51	0.51	0.51
Die Height			in	43.31	47.24	51.18	55.12
Slide Adjustment			in	19.69	19.69	23.62	23.62
Slide Area (LR × FB)	1		in	133.86×86.61	133.86×86.61	157.48×86.61	157.48×86.61
	2			145.67×86.61	145.67×86.61	169.29×86.61	169.29×86.61
	3			157.48×86.61	157.48×86.61	181.10×86.61	181.10×86.61
	4			169.29×86.61	169.29×86.61	192.91×86.61	192.91×86.61
Bolster Area (LR × FB)	1		in	133.86×86.61	133.86×86.61	157.48×86.61	157.48×86.61
	2			145.67×86.61	145.67×86.61	169.29×86.61	169.29×86.61
	3			157.48×86.61	157.48×86.61	181.10×86.61	181.10×86.61
	4			169.29×86.61	169.29×86.61	192.91×86.61	192.91×86.61
Bolster Thickness			in	11.81	11.81	11.81	11.81
Window Opening	Bolster Only	FB × UD	in	78.74×39.37	78.74×43.31	78.74×47.24	78.74×51.18
	Front to Back Rolling Bolster			78.74×39.37	78.74×43.31	78.74×47.24	78.74×51.18
	Left to Right Rolling Bolster			98.43×47.24	98.43×51.18	98.43×55.12	98.43×59.06
Max. Upper Die Weight			LBS	24250	28660	33069	44092
Required Air Pressure			PSI	71	71	71	71
Bolster Height	Fixed Bolster		in	29.13	29.13	29.13	29.13
Bolster Height	Rolling Bolster		in	29.13	29.13	29.13	29.13
Die Cushion	Type			Cylinder	Cylinder	Cylinder	Cylinder
	Capacity		U.S. ton	165	220	264	330
	Stroke Length		in	8.66	8.66	8.66	9.84
	Adjustment		in	8.66	8.66	8.66	9.84
Cushion Pad Area (LR × FB)	1		in x in	114.17×59.06	114.17×59.06	137.80×59.06	137.80×59.06
	2			125.98×59.06	125.98×59.06	149.61×59.06	149.61×59.06
	3			137.80×59.06	137.80×59.06	161.42×59.06	161.42×59.06
	4			149.61×59.06	149.61×59.06	173.23×59.06	173.23×59.06

* For SDE4-880-1, only 110ton die cushion is available.
※ This specification is subject to change without notice.

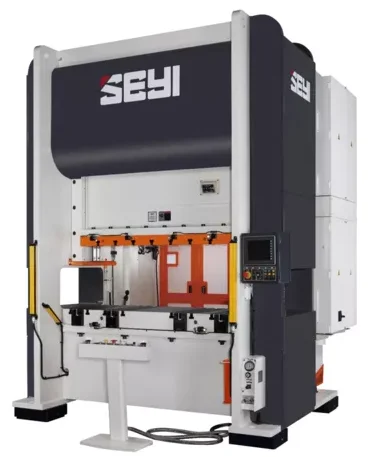

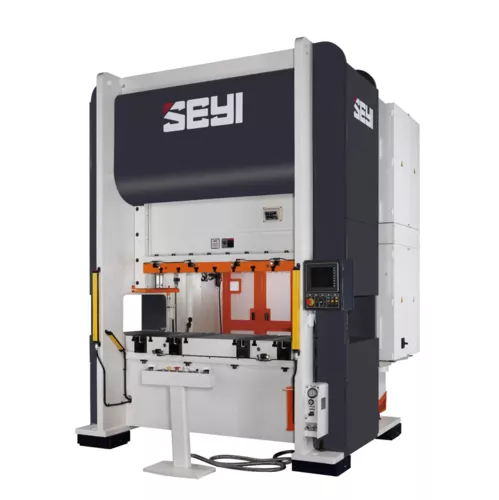

SD Series｜Solid Frame Crank Servo Press (SD1-80~300 / SD2-160~500 Specifications)

Suitable for application in auto parts, consumable electronics and household appliances. These can require perfect forming. By combining progressive die with pendulum curve, the productivity can possibly be doubled, which saves more than 50% of energy. Furthermore, automated transfer production line can also be added to upgrade the productivity.

Model			SD1-88	SD1-176	SD1-220	SD1-330
Capacity		U.S.ton	88	176	220	330
Stroke Length		in	7.09	8.66	9.84	11.81
Strokes per Minute		SPM	~ 80	~ 60	~ 50	~ 40
Tonnage Rating Point		in	0.20	0.24	0.24	0.24
Die Height		in	12.99	15.75	17.72	21.65
Slide Adjustment		in	3.15	3.94	4.33	4.72
Slide Area(LRxFB)		in	27.56×18.11	35.43×22.83	39.37×26.38	45.28×31.50
Bolster Area(LRxFB)		in	37.40×26.77	45.28×29.92	51.18×34.25	57.09×41.34
Bolster Thickness		in	5.51	6.50	7.09	7.87
Bolster Height(w/ Mounts)		in	38.94	41.50	44.65	45.43
Window Opening(FBxUD)		in	26.77×11.02	29.92×13.78	34.25×15.75	41.34×17.72
Floor Space Required		in	77.20×80.71	85.08×100.67	87.56×108.70	95.04×124.29
Press Height(w/ Mounts)		in	120.08	142.13	156.89	175.59
Max. Upper Die Weight		LBS	661	1102	1763	2866
Required Air Pressure		PSI	71	71	71	71
Die Cushion	Capacity	U.S.ton	6.6	8.8	11	15.4
	Stroke Length	in	3.74	4.33	5.12	5.51
	Cushion Pad Area(LRxFB)	in	18.90×13.39	22.05×14.57	27.56×17.72	27.56×17.72

Model			SD2-176	SD2-220	SD2-330	SD2-440	SD2-550
Capacity		U.S.ton	176	220	330	440	550
Stroke Length		in	8.66	9.84	11.81	13.78	13.78
Strokes per Minute		SPM	~ 60	~ 50	~ 40	~ 40	~ 40
Tonnage Rating Point		in	0.24	0.24	0.24	0.24	0.24
Die Height		in	17.72	19.69	23.62	25.59	25.59
Slide Adjustment		in	3.94	4.33	4.72	5.12	5.12
Slide Area(LRxFB)		in	63.78×22.83	74.80×26.38	89.76×31.50	93.70×39.37	93.70×43.31
Bolster Area(LRxFB)		in	75.20×29.92	86.61×34.25	101.57×41.34	105.51×47.24	105.51×51.18
Bolster Thickness		in	6.30	6.69	7.87	7.87	7.87
Bolster Height(w/ Mounts)		in	41.89	43.86	49.76	56.22	56.22
Window Opening(FBxUD)		in	29.92×15.75	34.25×17.72	41.34×19.69	47.24×21.65	51.18×21.65
Floor Space Required		in	115.00×98.82	122.01×104.96	138.54×122.64	146.97×127.95	157.48×133.86
Press Height(w/ Mounts)		in	145.16	161.38	185.43	201.46	204.88
Max. Upper Die Weight		LBS	1764	2866	3968	5512	5952
Required Air Pressure		PSI	71	71	71	71	71
Die Cushion	Capacity	U.S.ton	8.8×2	11×2	15.4×2	15.4×2	15.4×2
	Stroke Length	in	3.74	4.33	5.12	5.51	5.51
	Cushion Pad Area(LRxFB)	in	18.90×13.39×2	22.05×14.57×2	27.56×17.72×2	27.56×17.72×2	27.56×17.72×2

※ This specification is subject to change without notice.

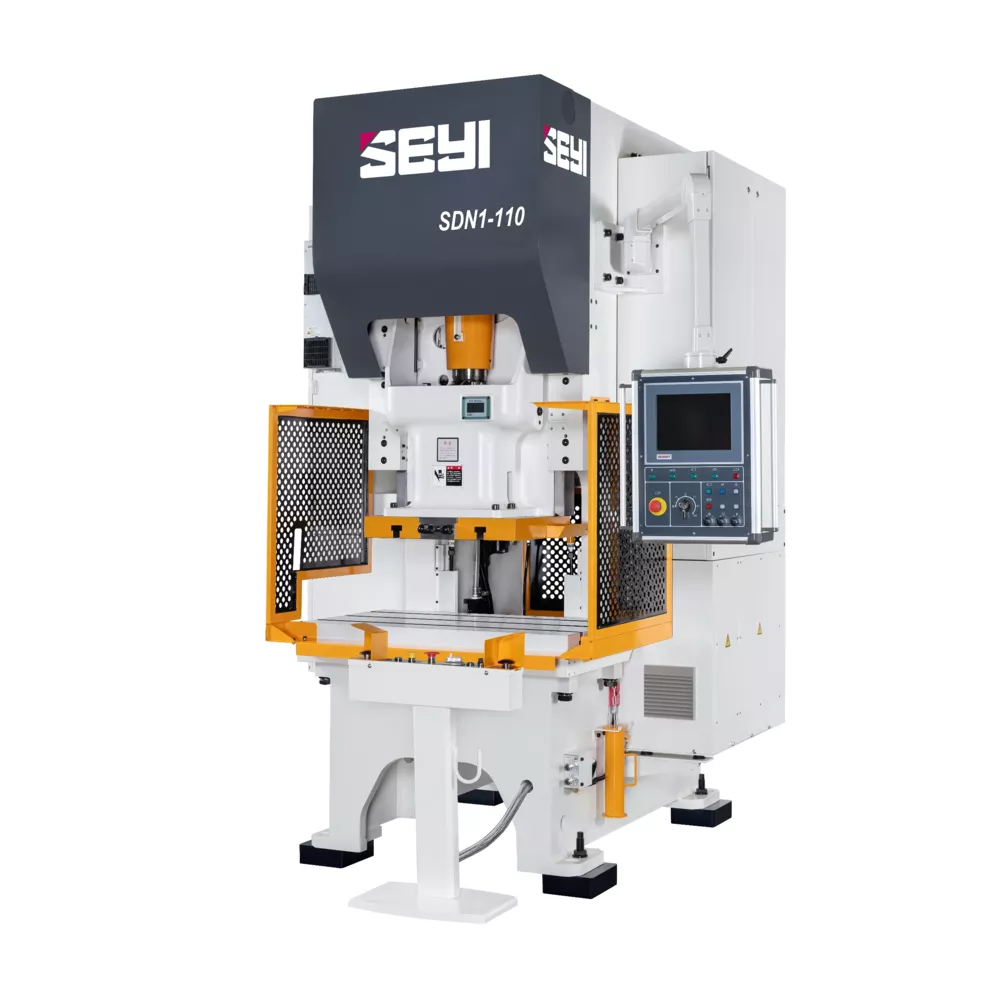

SDN1 Series｜C Frame Direct-Drive Servo Press (SDN1-80~250 Specifications)

Equipped with a new-generation direct-drive servo motor, the powerful but compact SDN1 series is suitable for various stamping processes such as cutting, blanking, and drawings. Be able to fulfill different applications with a stand-alone press or tandem line. Additionally, the outstanding energy-saving design helps reduce the operation’s carbon footprint.

Model		SDN1-88	SDN1-121	SDN1-176	SDN1-220	SDN1-275
Capacity	U.S.Ton	88	121	176	220	275
Stroke Length	in	6.3	7.1	7.9	9.8	11.8
Strokes per Minute	SPM	~ 80	~ 70	~ 60	~ 50	~ 40
Tonnage Rating Point	in	0.2	0.2	0.2	0.2	0.3
Die Height	in	12.6	13.78	15.75	17.72	21.26
Slide Adjustment	in	3.1	3.5	3.9	4.3	4.7
Slide Area(LRxFB)	in	22×18.1	25.6×20.5	28.3×22.8	33.8×25.6	43.3×28.7
Bolster Area(LRxFB)	in	41.3×23.6	45.3×26.8	49.2×29.9	57.9×33.1	68.9×35.4
Bolster Thickness	in	5.5	6.1	6.5	7.1	7.1
Press Height(w/ Mounts)	in	35.4	35.4	35.4	39.4	43.3
Frame-Inside Distance	in	15.3	19.7	22	28.7	37
Throat Depth	in	12.2	13.8	15.4	16.9	18.5
Max. Upper Die Weight	LBS	606	849	1069	2205	2866
Required Air Pressure	PSI	72	72	72	72	72

※ This specification is subject to change without notice. The product photo is for reference only.

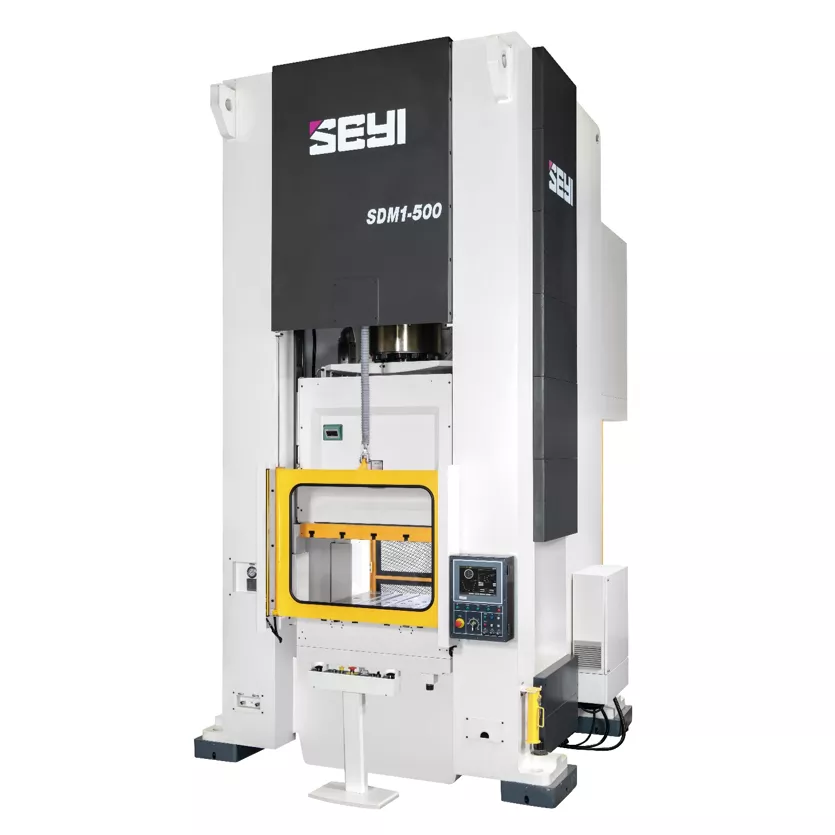

SDM1 Series｜Heavy Stamping Servo Press (SDM1-500~800 Specifications)

Equipped with new-generation SEYI servo control system, this high-efficiency heavy stamping servo press is designed for forming thick metal plates. The slide movement can be flexibly adjusted to fulfill different applications such as bending, drawing and piercing. Suitable to manufacture high-precision and high-quality parts for automobiles, motorcycles, ICT products, aerospace, and medical equipment.

Model		SDM1-550	SDM1-715	SDM1-880
Capacity	U.S. ton	550	715	880
Stroke Length	in	11.81	11.81	11.81
Strokes per Minute	SPM	1~40	1~35	1~30
Tonnage Rating Point	in	0.51	0.51	0.51
Die Height	in	25.59	27.56	29.53
Slide Adjustment	in	5.91	5.91	5.91
Slide Area(LRxFB)	in	47.24 x 43.31	51.18 x 47.24	59.06 x 51.18
Bolster Area(LRxFB)	in	47.24 x 47.24	51.18 x 51.18	59.06 x 59.06
Bolster Thickness	in	9.84	9.84	9.84
Bolster Height(w/ Mounts)	in	41.73	43.31	47.24
Max. Upper Die Weight	LBS	2204	3306	4409
Slide Adjustment Motor	HP×P	2 x 4	2.7 x 6	2.7 x 6
Window Opening(FBxUD)	in	27.56 x 21.65	31.50 x 23.62	33.46 x 25.59
Press Height	in	208.66	220.47	255.91
Required Air Pressure	PSI	71

※ This specification is subject to change without notice.

Servo Press FAQ's

Q: How does the programmable slide motion improve stamping quality?

A: Unlike conventional presses with a fixed mechanical cycle, SEYI Machinery servo presses offer 7 default motion profiles and 1 free motion. You can slow the slide down during the forming process for better material flow and speed it up upon return, which eliminates spring-back and cracks in high-strength materials while reducing tool wear.

Q: What are the best use cases for SEYI servo presses?

A: The flexibility of the servo series makes them ideal for a wide variety of applications. Common uses include complex progressive die stamping, deep drawing, and hot stamping lines. They are particularly effective for manufacturing high-precision parts in the automotive (including EV relay bases), aerospace, medical, and 3C (computer, communication, consumer) electronics industries.

Q: Can a servo press help me save on electricity and power?

A: Yes. By replacing traditional mechanical components with a high torque-low RPM servo motor, you only consume power when the press is actually working. Additionally, built-in power stabilization and regeneration systems capture and store mechanical energy in capacitors, which eliminates power surges and conserves electricity.

Q: How do SEYI servo presses handle difficult-to-form materials?

A: Using features like Hold motion (which pauses the slide at the bottom of the stroke) and Vibration motion (which facilitates material flow), the presses are expertly suited for advanced, high-tensile materials. You can even form highly complex, thin-walled parts in a single stage that would normally require multiple stages on a traditional press.

Q: What safety and machine protection features are included?

A: All machines are equipped with electronic overload protection, which responds immediately to prevent damage to the die and the press. Additionally, the heavy-duty ribbed frame structure is designed to absorb vibrations from pendulum motion, and the 8-point gib slide guiding helps maintain precise alignment.

Servo Presses

About SEYI Servo Presses

Key Features of SEYI Servo Presses

Benefits of Choosing SEYI Servo Presses

Servo Press Specifications

SDG Series｜Straight Side Crank Servo Press (SDG2-400~1200 / SDG4-400~2400 Specifications)

SDE Series｜Straight Side Eccentric Gear Servo Press (SDE2-400~1200 / SDE4-400~2400 Specifications)

SD Series｜Solid Frame Crank Servo Press (SD1-80~300 / SD2-160~500 Specifications)

SDN1 Series｜C Frame Direct-Drive Servo Press (SDN1-80~250 Specifications)

SDM1 Series｜Heavy Stamping Servo Press (SDM1-500~800 Specifications)

Servo Press FAQ's

Q: How does the programmable slide motion improve stamping quality?

Q: What are the best use cases for SEYI servo presses?

Q: Can a servo press help me save on electricity and power?

Q: How do SEYI servo presses handle difficult-to-form materials?

Q: What safety and machine protection features are included?

COMPANY

RESOURCES

Contact
