Mechanical Presses

SEYI manufactures mechanical presses engineered for high precision, reliability, and automation. Ranging from 25 to 2,640 tons, the heavy-duty mechanical press lineup includes gap-frame crank, straight-side eccentric gear, and link-motion configurations built to optimize blanking, deep drawing, and progressive die.

About

About SEYI Mechanical Presses

For nearly six decades, SEYI Machinery has delivered industry-leading metal stamping solutions. By combining robust mechanical press lines with outstanding service and a worldwide support network, SEYI remains the premier choice for ultimate reliability, tonnage capacity, and forming flexibility across multiple configurations.

Key Features of SEYI Mechanical Presses

SEYI Machinery mechanical presses span gap-frame, solid-frame, and straight-side designs are primarily characterized by high-rigidity frame designs with industry leading/minimal deflection. Key features across various models include eccentric gear drives for deep drawing, link motion mechanisms for extended tooling life, and hydraulic overload protection. They integrate low-noise wet clutches, user-friendly HMIs, and are designed for seamless automation integration.

Benefits of Choosing SEYI Mechanical Presses

SEYI mechanical presses (and advanced servo drives) maximize operational efficiency by offering highly programmable slide motions that extend die life up to three times longer, reduce energy consumption by up to 50% compared to traditional models, and seamlessly integrate with peripheral automation for maximum production throughput.

Mechanical Press Specifications

Click the dropdowns below to view detailed specifications for the Mechanical Presses.

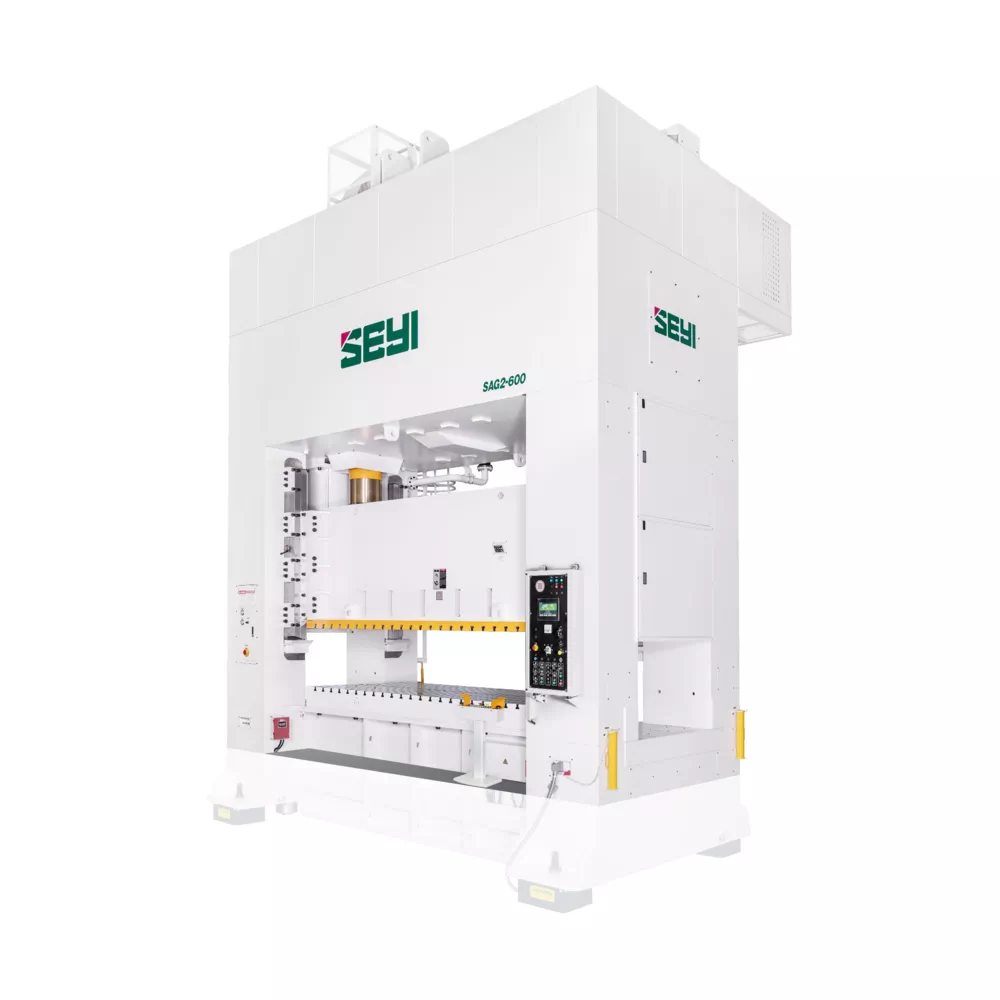

SAG Series | Straight Side Crank Press (SAG2-300~1200 / SAG4-400~1200 Specifications)

Needing a workhorse? The SAG series is the workaholic that is always taking shifts at the factory.
Its long history of power, precision, and reliability gives manufacturers the peace of mind knowing their plant can handle the toughest, grittiest jobs. Manufacturers looking to complete medium to large operations should look no further. The SAG series is engineered specifically for the most common, yet challenging operations today.

Model				SAG2-330		SAG2-440		SAG2-550
Type				S	H	S	H	S	H
Capacity			U.S. Ton	330		440		550
Stroke Length			in	11.81	7.87	15.75	9.84	17.72	9.84
Strokes per Minute			SPM	15~30	25~50	15~26	25~50	12~22	25~50
Tonnage Rating Point			in	0.51	0.26	0.51	0.26	0.51	0.26
Die Height			in	23.62		27.56		27.56
Slide Adjustment			in	7.87		9.84		9.84
Slide Area(LR×FB)		1	in	86.61×47.24		98.42×55.11		98.42×57.09
		2		98.42×47.24		110.23×55.11		110.23×57.09
		3		110.23×47.24		122.04×55.11		122.04×57.09
		4		122.04×47.24		133.85×55.11		133.85×57.09
		5		133.85×47.24		145.67×55.11		145.67×57.09
Bolster Area(LR×FB)		1	in	86.61×53.93		98.42×55.11		98.42×57.09
		2		98.42×53.93		110.23×55.11		110.23×57.09
		3		110.23×53.93		122.04×55.11		122.04×57.09
		4		122.04×53.93		133.85×55.11		133.85×57.09
		5		133.85×53.93		145.67×55.11		145.67×57.09
Bolster Thickness			in	7.09		7.09		7.09
Window Opening	Bolster Only	FB × UD	in	39.37×19.68		43.31×23.62		47.24×23.62
	Front to Back Rolling Bolster			39.37×19.68		43.31×23.62		47.24×23.62
	Left to Right Rolling Bolster			65.74×27.56		66.93×31.5		68.9×31.5
Max. Upper Die Weight*			LBS	6600		8800		9900
Required Air Pressure			PSI	85.34		85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46		33.46
	Rolling Bolster			25.98		25.98		25.98
Main Motor	w/o Die Cushion		HP×P	50×4		60×4		75×4
	w/ Die Cushion
Die Cushion	Type**			bellows		cylinder		cylinder
	Capacity		U.S. Ton	60.5		66		88
	Stroke Length		in	5.91		7.87		8.66
	Adjustment		in	—		7.87		8.66
Cushion Pad Area(LR×FB)		1	in	66.92×35.43	—	78.74×35.43	—	78.74×37.4	—
		2		78.74×35.43	—	90.55×35.43	—	90.55×37.4	—
		3		90.55×35.43	—	102.36×35.43	—	102.36×37.4	—
		4		102.36×35.43	—	114.17×35.43	—	114.17×37.4	—

Model				SAG2-660		SAG2-880
Type				S	H	S	H
Capacity			U.S. Ton	660		880
Stroke Length			in	17.72	9.84	17.72	11.81
Strokes per Minute			SPM	12~22	25~50	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26
Die Height			in	27.56		31.50
Slide Adjustment			in	9.84		11.81
Slide Area(LR×FB)		1	in	98.42×61.02		110.23×61.02
		2		110.23×61.02		122.04×61.02
		3		122.04×61.02		133.85×61.02
		4		133.85×61.02		145.67×61.02
		5		145.67×61.02		157.48×61.02
Bolster Area(LR×FB)		1	in	98.42×61.02		110.23×61.02
		2		110.23×61.02		122.04×61.02
		3		122.04×61.02		133.85×61.02
		4		133.85×61.02		145.67×61.02
		5		145.67×61.02		157.48×61.02
Bolster Thickness			in	9.84		9.84
Window Opening	Bolster Only	FB × UD	in	51.18×23.62		59.06×27.56
	Front to Back Rolling Bolster			51.18×23.62		59.06×27.56
	Left to Right Rolling Bolster			72.83×31.5		72.83×35.43
Max. Upper Die Weight*			LBS	11000		12100
Required Air Pressure			PSI	85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46
	Rolling Bolster			25.98		25.98
Main Motor	w/o Die Cushion		HP×P	75×4		100×4
	w/ Die Cushion
Die Cushion	Type**			cylinder		cylinder
	Capacity		U.S. Ton	110		132(**)
	Stroke Length		in	8.66		8.66
	Adjustment		in	8.66		8.66
Cushion Pad Area(LR×FB)		1	in	78.74×37.4	—	90.55×51.18	—
		2		90.55×37.4	—	102.36×51.18	—
		3		102.36×37.4	—	114.17×51.18	—
		4		114.17×37.4	—	125.98×51.18	—

Model				SAG2-1100		SAG2-1320
Type				S	H	S	H
Capacity			U.S. Ton	1100		1320
Stroke Length			in	17.72	11.81	17.72	11.81
Strokes per Minute			SPM	10~20	20~40	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26
Die Height			in	31.50		31.50
Slide Adjustment			in	11.81		11.81
Slide Area(LR×FB)		1	in	122.04×61.02		133.85×61.02
		2		133.85×61.02		145.67×61.02
		3		145.67×61.02		157.48×61.02
		4		157.48×61.02		169.29×61.02
		5		169.29×61.02		181.1×61.02
Bolster Area(LR×FB)		1	in	122.04×61.02		133.85×61.02
		2		133.85×61.02		145.67×61.02
		3		145.67×61.02		157.48×61.02
		4		157.48×61.02		169.29×61.02
		5		169.29×61.02		181.1×61.02
Bolster Thickness			in	9.84		11.81
Window Opening	Bolster Only	FB × UD	in	59.06×27.56		59.06×27.56
	Front to Back Rolling Bolster			59.06×27.56		59.06×27.56
	Left to Right Rolling Bolster			72.83×35.43		72.83×35.43
Max. Upper Die Weight*			LBS	13200		15400
Required Air Pressure			PSI	85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46
	Rolling Bolster			29.13		29.13
Main Motor	w/o Die Cushion		HP×P	125×4		125×4
	w/ Die Cushion					150×4
Die Cushion	Type**			cylinder		cylinder
	Capacity		U.S. Ton	165		220
	Stroke Length		in	8.66		8.66
	Adjustment		in	8.66		8.66
Cushion Pad Area(LR×FB)		1	in	102.36×51.18	—	114.17×51.18	—
		2		114.17×51.18	—	125.98×51.18	—
		3		125.98×51.18	—	137.8×51.18	—
		4		137.8×51.18	—	149.61×51.18	—

Model				SAG4-550		SAG4-660		SAG4-880
Type				S	H	S	H	S	H
Capacity			U.S. Ton	550		660		880
Stroke Length			in	17.72	9.84	17.72	9.84	17.72	11.81
Strokes per Minute			SPM	12~22	25~50	12~22	25~50	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26	0.51	0.26
Die Height			in	27.56		27.56		31.50
Slide Adjustment			in	9.84		9.84		11.81
Slide Area(LR×FB)		1	in	98.43×78.74		98.43×78.74		110.24×86.61
		2		110.24×78.74		110.24×78.74		122.05×86.61
		3		122.05×78.74		122.05×78.74		133.86×86.61
		4		133.86×78.74		133.86×78.74		145.67×86.61
		5		145.67×78.74		145.67×78.74		157.48×86.61
Bolster Area(LR×FB)		1	in	98.43×78.74		98.43×78.74		110.24×86.61
		2		110.24×78.74		110.24×78.74		122.05×86.61
		3		122.05×78.74		122.05×78.74		133.86×86.61
		4		133.86×78.74		133.86×78.74		145.67×86.61
		5		145.67×78.74		145.67×78.74		157.48×86.61
Bolster Thickness			in	7.09		9.84		9.84
Window Opening	Bolster Only	FB × UD	in	70.87×23.62		70.87×23.62		78.74×27.55
	Front to Back Rolling Bolster			70.87×23.62		70.87×23.62		78.74×27.55
	Left to Right Rolling Bolster			90.55×31.50		90.55×31.50		98.43×35.43
Max. Upper Die Weight*			LBS	15400		17600		19800
Required Air Pressure			PSI	85.34		85.34		85.34
Bolster Height	Fixed Bolster		in	25.98		25.98		25.98
	Rolling Bolster			25.98		25.98		25.98
Main Motor	w/o Die Cushion		HP×P	75×4		75×4		100×4
	w/ Die Cushion
Die Cushion	Type**			cylinder		cylinder		cylinder
	Capacity		U.S. Ton	88		110	–	132(*)	—
	Stroke Length		in	8.66		8.66	—	8.66	—
	Adjustment		in	8.66		8.66	—	8.66	—
Cushion Pad Area(LR×FB)		1	in	78.74×51.18		78.74×51.18	—	90.55×59.06	—
		2		90.55×51.18		90.55×51.18	—	102.36×59.06	—
		3		102.36×51.18		102.36×51.18	—	114.17×59.06	—
		4		114.17×51.18		114.17×51.18	—	125.98×59.06	—

Model				SAG4-1100		SAG4-1320
Type				S	H	S	H
Capacity			U.S. Ton	1100		1320
Stroke Length			in	17.72	11.81	17.72	11.81
Strokes per Minute			SPM	10~20	20~40	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26
Die Height			in	31.50		31.50
Slide Adjustment			in	11.81		11.81
Slide Area(LR×FB)		1	in	122.05×86.61		133.86×86.61
		2		133.86×86.61		145.67×86.61
		3		145.67×86.61		157.48×86.61
		4		157.48×86.61		169.29×86.61
		5		169.29×86.61		181.1×86.61
Bolster Area(LR×FB)		1	in	122.05×86.61		133.86×86.61
		2		133.86×86.61		145.67×86.61
		3		145.67×86.61		157.48×86.61
		4		157.48×86.61		169.29×86.61
		5		169.29×86.61		181.1×86.61
Bolster Thickness			in	9.84		11.81
Window Opening	Bolster Only	FB × UD	in	78.74×27.55		78.74×27.55
	Front to Back Rolling Bolster			78.74×27.55		78.74×27.55
	Left to Right Rolling Bolster			98.43×35.43		98.43×35.43
Max. Upper Die Weight*			LBS	19800		22000
Required Air Pressure			PSI	85.34		85.34
Bolster Height	Fixed Bolster		in	29.13		29.13
	Rolling Bolster			29.13		29.13
Main Motor	w/o Die Cushion		HP×P	125×4		125×4
	w/ Die Cushion					150×4
Die Cushion	Type**			cylinder		cylinder
	Capacity		U.S. Ton	165	—	220	—
	Stroke Length		in	8.66	—	8.66	—
	Adjustment		in	8.66	—	8.66	—
Cushion Pad Area(LR×FB)		1	in	223.62×59.06	—	114.17×59.06	—
		2		114.17×59.06	—	125.98×59.06	—
		3		125.98×59.06	—	137.8×59.06	—
		4		137.8×59.06	—	149.61×59.06	—

* Upper die weight may vary in table size. Please contact your sales representative for more information.
** For selecting 132T, 165T and 220T air cylinder die cushions, bolster area in FB should be at least 66.93in.
*** For selecting 264T, 330T air cylinder die cushions, bolster area in FB should be at least 74.80in.
**** For SAG2-880-1, only 110T die cushion is available.

* For SAG4-880-1, only 110T die cushion is available
※ Slide and bolster area up to 216.53×61.02in by request.
※ This specification is subject to change without notice.

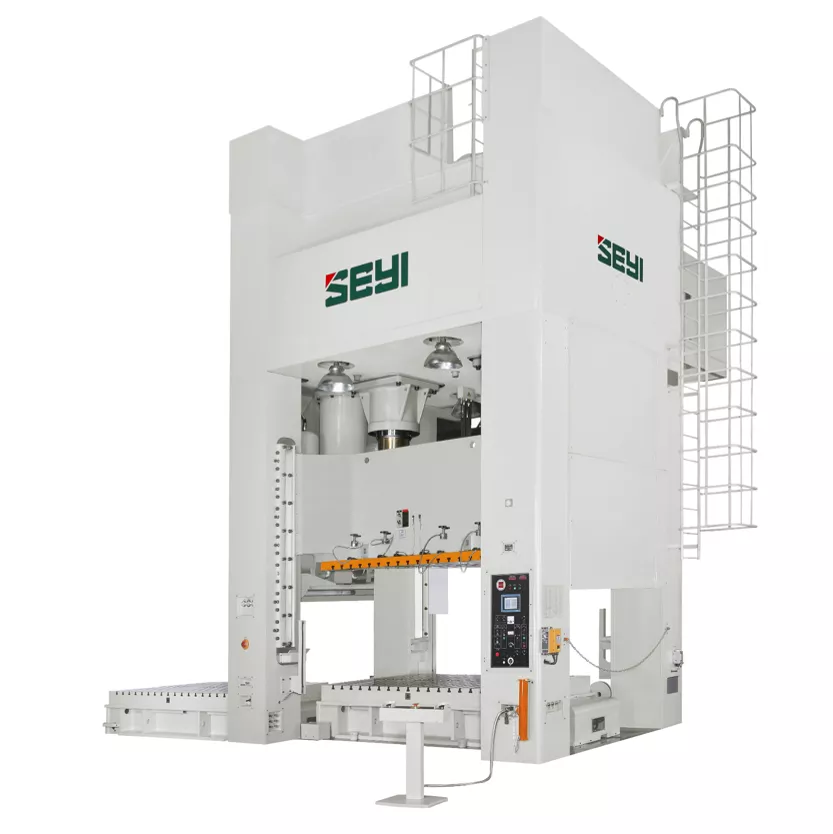

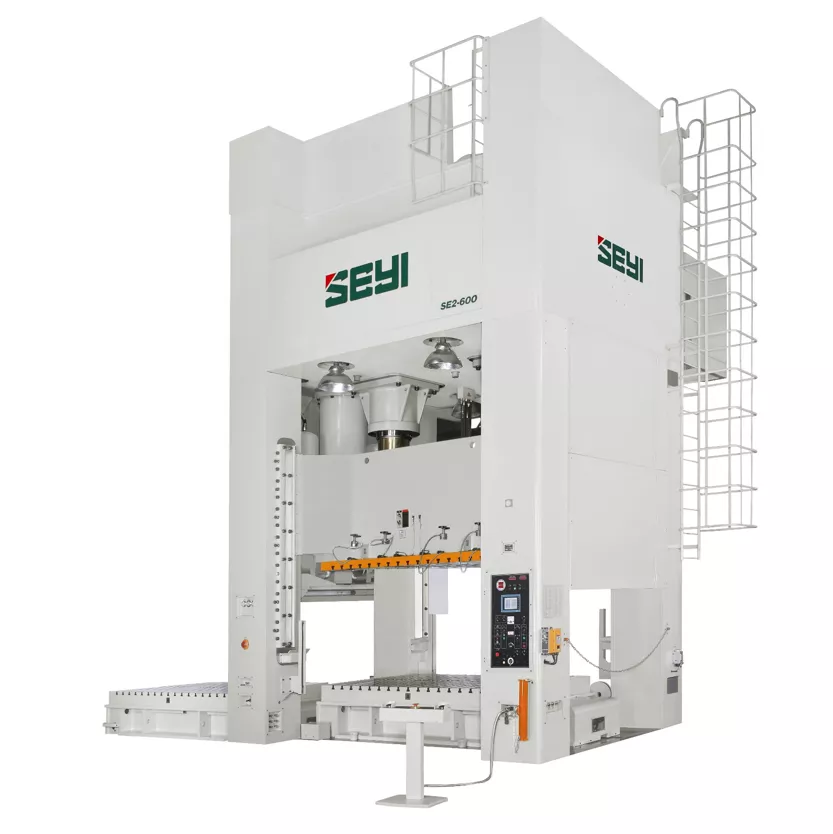

SE Series｜Straight Side Eccentric Gear Press (SE2-400~1200 / SE4-400~2400 Specifications)

As an excellent equipment for processing high-tensile steel panels, the SE series with tough rigidity is mainly applied with large dies in automotive industry. The model adopts design of eccentric gear drive component and 8-point guided slide for high precision. The design of energy and electricity conservation allows saving more than 20% of energy and the large overload capacity extends the lifetime of use.

Model				SE2-440		SE2-550		SE2-660
Type				S	H	S	H	S	H
Capacity			U.S. Ton	440		550		660
Stroke Length			in	19.69		19.69		19.69
Strokes per Minute			SPM	15~26		12~24		12~22
Tonnage Rating Point			in	0.51	0.26	0.51	0.26	0.51	0.26
Die Height			in	27.56		31.50		31.50
Slide Adjustment			in	11.81		15.75		15.75
Slide Area(LR×FB)		1	in	98.43×55.12		98.43×57.09		98.43×61.02
		2		110.24×55.12		110.24×57.09		110.24×61.02
		3		122.05×55.12		122.05×57.09		122.05×61.02
		4		133.86×55.12		133.86×57.09		133.86×61.02
		5		145.67×55.12		145.67×57.09		145.67×61.02
Bolster Area(LR×FB)		1	in	98.43×55.12		98.43×57.09		98.43×61.02
		2		110.24×55.12		110.24×57.09		110.24×61.02
		3		122.05×55.12		122.05×57.09		122.05×61.02
		4		133.86×55.12		133.86×57.09		133.86×61.02
		5		145.67×55.12		145.67×57.09		145.67×61.02
Bolster Thickness			in	7.09		7.09		9.84
Window Opening	Bolster Only	FB × UD	in	47.24×23.62		47.24×27.56		53.15×27.56
	Front to Back Rolling Bolster			47.24×23.62		47.24×27.56		53.15×27.56
	Left to Right Rolling Bolster			66.93×31.5		68.90×35.43		72.83×35.43
Max. Upper Die Weight*			LBS	11000		13200		13200
Required Air Pressure			PSI	85.34		85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46		33.46
	Rolling Bolster			25.98		25.98		25.98
Main Motor	w/o Die Cushion		HP×P	60×4		75×4		75×4
	w/ Die Cushion
Die Cushion	Type			cylinder		cylinder		cylinder
	Capacity		U.S. Ton	66		88		110
	Stroke Length		in	7.87		8.66		8.66
	Adjustment		in	7.87		8.66		8.66
Cushion Pad Area(LR×FB)		1	in	78.74×35.43	–	78.74×37.4	–	78.74×37.4	–
		2		90.55×35.43	–	90.55×37.4	–	90.55×37.4	–
		3		102.36×35.43	–	102.36×37.4	–	102.36×37.4	–
		4		114.17×35.43	–	114.17×37.4	–	114.17×37.4	–

Model				SE2-880	SE2-1100	SE2-1320
Type				S	S	S
Capacity			U.S. Ton	880	1100	1320
Stroke Length			in	23.62	23.62	31.50
Strokes per Minute			SPM	10~18	10~18	10~18
Tonnage Rating Point			in	0.51	0.51	0.51
Die Height			in	39.37	39.37	43.31
Slide Adjustment			in	15.75	15.75	19.69
Slide Area(LR×FB)		1	in	110.24×66.93	122.05×66.93	133.86×66.93
		2		122.05×66.93	133.86×66.93	145.67×66.93
		3		133.86×66.93	145.67×66.93	157.48×66.93
		4		145.67×66.93	157.48×66.93	169.29×66.93
		5		157.48×66.93	169.29×66.93	181.1×66.93
Bolster Area(LR×FB)		1	in	110.24×66.93	122.05×66.93	133.86×66.93
		2		122.05×66.93	133.86×66.93	145.67×66.93
		3		133.86×66.93	145.67×66.93	157.48×66.93
		4		145.67×66.93	157.48×66.93	169.29×66.93
		5		157.48×66.93	169.29×66.93	181.1×66.93
Bolster Thickness			in	9.84	9.84	11.81
Window Opening	Bolster Only	FB × UD	in	59.06×35.43	59.06×35.43	59.06×39.37
	Front to Back Rolling Bolster			59.06×35.43	59.06×35.43	59.06×39.37
	Left to Right Rolling Bolster			78.74×43.31	78.74×43.31	78.74×47.24
Max. Upper Die Weight*			LBS	15400	15400	17600
Required Air Pressure			PSI	85.34	85.34	85.34
Bolster Height	Fixed Bolster		in	33.46	33.46	33.46
Bolster Height	Rolling Bolster		in	25.98	29.13	29.13
Main Motor	w/o Die Cushion		HP×P	100×4	125×4	125×4
Main Motor	w/ Die Cushion		HP×P	100×4	125×4	150×4
Die Cushion	Type			cylinder	cylinder	cylinder
	Capacity		U.S. Ton	132**	165	220
	Stroke Length		in	8.66	8.66	8.66
	Adjustment		in	8.66	8.66	8.66
Cushion Pad Area(LR×FB)		1	in	90.55×51.18	102.36×51.18	114.17×51.18
		2		102.36×51.18	114.17×51.18	125.98×51.18
		3		114.17×51.18	125.98×51.18	137.8×51.18
		4		125.98×51.18	137.8×51.18	149.61×51.18

Model				SE4-550	SE4-660	SE4-880
Type				S	S	S
Capacity			U.S. Ton	550	660	880
Stroke Length			in	19.69	19.69	23.62
Strokes per Minute			SPM	12~24	12~22	10~20
Tonnage Rating Point			in	0.51	0.51	0.51
Die Height			in	31.50	31.50	39.37
Slide Adjustment			in	15.75	15.75	15.75
Slide Area(LR×FB)		1	in	98.43×78.74	98.43×78.74	110.24×86.61
		2		110.24×78.74	110.24×78.74	122.05×86.61
		3		122.05×78.74	122.05×78.74	133.86×86.61
		4		133.86×78.74	133.86×78.74	145.67×86.61
		5		145.67×78.74	145.67×78.74	157.48×86.61
Bolster Area(LR×FB)		1	in	98.43×78.74	98.43×78.74	110.24×86.61
		2		110.24×78.74	110.24×78.74	122.05×86.61
		3		122.05×78.74	122.05×78.74	133.86×86.61
		4		133.86×78.74	133.86×78.74	145.67×86.61
		5		145.67×78.74	145.67×78.74	157.48×86.61
Bolster Thickness			in	7.09	9.84	9.84
Window Opening	Bolster Only	FB × UD	in	70.87×27.56	70.87×27.56	78.74×35.43
	Front to Back Rolling Bolster			70.87×27.56	70.87×27.56	78.74×35.43
	Left to Right Rolling Bolster			90.55×35.43	90.55×35.43	98.43×43.31
Max. Upper Die Weight*			LBS	17600	19800	22000
Required Air Pressure			PSI	85.34	85.34	85.34
Bolster Height	Fixed Bolster		in	25.98	25.98	25.98
Bolster Height	Rolling Bolster		in	25.98	25.98	25.98
Main Motor	w/o Die Cushion		HP×P	75×4	75×4	100×4
Main Motor	w/ Die Cushion		HP×P	75×4	75×4	100×4
Die Cushion	Type			cylinder	cylinder	cylinder
	Capacity		U.S. Ton	88	110	132(*)
	Stroke Length		in	8.66	8.66	9.84
	Adjustment		in	8.66	8.66	9.84
Cushion Pad Area(LR×FB)		1	in	78.74×51.18	78.74×51.18	90.55×59.06
		2		90.55×51.18	90.55×51.18	102.36×59.06
		3		102.36×51.18	102.36×51.18	114.17×59.06
		4		114.17×51.18	114.17×51.18	125.98×59.06

Model				SE4-1100	SE4-1320	SE4-1760
Type				S	S	S
Capacity			U.S. Ton	1100	1320	1760
Stroke Length			in	23.62	31.50	31.50
Strokes per Minute			SPM	10~20	10~20	10~20
Tonnage Rating Point			in	0.51	0.51	0.51
Die Height			in	39.37	43.31	47.24
Slide Adjustment			in	15.75	19.69	19.69
Slide Area(LR×FB)		1	in	122.05×86.61	133.86×86.61	133.86×86.61
		2		133.86×86.61	145.67×86.61	145.67×86.61
		3		145.67×86.61	157.48×86.61	157.48×86.61
		4		157.48×86.61	169.29×86.61	169.29×86.61
		5		169.29×86.61	181.1×86.61	181.1×86.61
Bolster Area(LR×FB)		1	in	122.05×86.61	133.86×86.61	133.86×86.61
		2		133.86×86.61	145.67×86.61	145.67×86.61
		3		145.67×86.61	157.48×86.61	157.48×86.61
		4		157.48×86.61	169.29×86.61	169.29×86.61
		5		169.29×86.61	181.1×86.61	181.1×86.61
Bolster Thickness			in	9.84	11.81	11.81
Window Opening	Bolster Only	FB × UD	in	78.74×35.43	78.74×39.37	78.74×43.31
	Front to Back Rolling Bolster			78.74×35.43	78.74×39.37	78.74×43.31
	Left to Right Rolling Bolster			98.43×43.31	98.43×47.24	98.43×51.18
Max. Upper Die Weight*			LBS	22000	24200	28600
Required Air Pressure			PSI	85.34	85.34	85.34
Bolster Height	Fixed Bolster		in	29.13	29.13	29.13
Bolster Height	Rolling Bolster		in	29.13	29.13	29.13
Main Motor	w/o Die Cushion		HP×P	125×4	125×4	175×4
Main Motor	w/ Die Cushion		HP×P	125×4	150×4	200×4
Die Cushion	Type			cylinder	cylinder	cylinder
	Capacity		U.S. Ton	165	220	264
	Stroke Length		in	9.84	9.84	9.84
	Adjustment		in	9.84	9.84	9.84
Cushion Pad Area(LR×FB)		1	in	102.36×59.06	114.17×59.06	114.17×59.06
		2		114.17×59.06	125.98×59.06	125.98×59.06
		3		125.98×59.06	137.8×59.06	137.8×59.06
		4		137.8×59.06	149.61×59.06	149.61×59.06

Model				SE4-2200	SE4-2640
Type				S	S
Capacity			U.S. Ton	2200	2640
Stroke Length			in	35.43	39.37
Strokes per Minute			SPM	10~20	10~20
Tonnage Rating Point			in	0.51	0.51
Die Height			in	51.18	55.12
Slide Adjustment			in	23.62	23.62
Slide Area(LR×FB)		1	in	157.48×86.61	157.48×86.61
		2		169.29×86.61	169.29×86.61
		3		181.1×86.61	181.1×86.61
		4		192.91×86.61	192.91×86.61
		5		204.72×86.61	204.72×86.61
Bolster Area(LR×FB)		1	in	157.48×86.61	157.48×86.61
		2		169.29×86.61	169.29×86.61
		3		181.1×86.61	181.1×86.61
		4		192.91×86.61	192.91×86.61
		5		204.72×86.61	204.72×86.61
Bolster Thickness			in	11.81	11.81
Window Opening	Bolster Only	FB × UD	in	78.74×47.24	78.74×51.18
	Front to Back Rolling Bolster			78.74×47.24	78.74×51.18
	Left to Right Rolling Bolster			98.43×55.12	98.43×59.06
Max. Upper Die Weight*			LBS	33000	44000
Required Air Pressure			PSI	85.34	85.34
Bolster Height	Fixed Bolster		in	29.13	29.13
Bolster Height	Rolling Bolster		in	29.13	29.13
Main Motor	w/o Die Cushion		HP×P	200 ×4	250 ×4
Main Motor	w/ Die Cushion		HP×P	200 ×4	300 ×4
Die Cushion	Type**			cylinder	cylinder
	Capacity		U.S. Ton	330	330
	Stroke Length		in	11.81	11.81
	Adjustment		in	11.81	11.81
Cushion Pad Area(LR×FB)		1	in	137.8×59.06	137.8×59.06
		2		149.61×59.06	149.61×59.06
		3		161.42×59.06	161.42×59.06
		4		173.23×59.06	173.23×59.06

* For SE4-880-1, only 110T die cushion is available
※ Slide and bolster area up to 216.53×61.02in by request.
※ This specification is subject to change without notice.

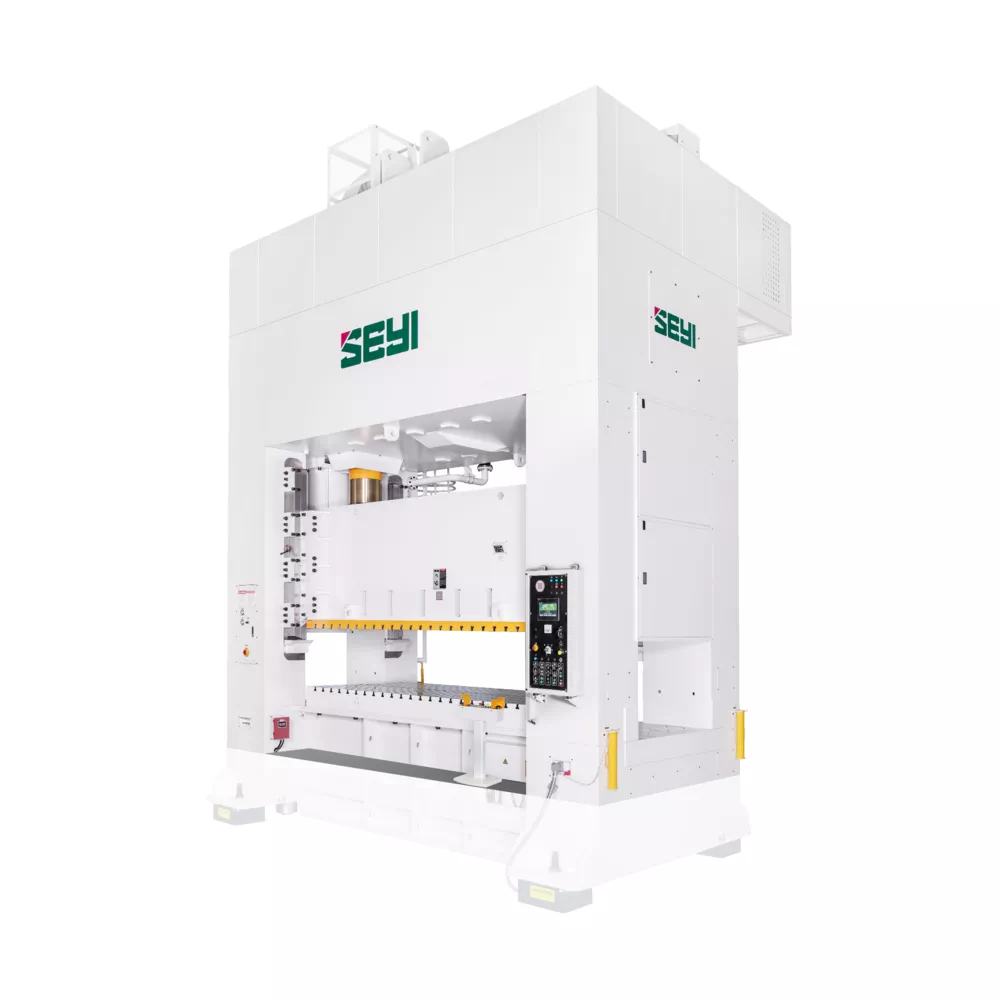

SLG Series｜Straight Side Crank Link-Motion Press (SLG2-300~1200 / SLG4-400~1200 Specifications)

This series is the prime choice for large parts forming, which makes it applicable for automotive parts forming. The crank shaft and connecting rods are adopted to drive the gear component. The soft contact during forming extensively reduces vibration, noise and heat, as well as extending die lifetime. The design of low energy consumption can effectively save more than 20% of energy.

Model				SLG2-330		SLG2-440		SLG2-550
Type				S	H	S	H	S	H
Capacity			U.S. Ton	330		440		550
Stroke Length			in	11.81	7.87	15.75	9.84	17.72	9.84
Strokes per Minute			SPM	15~30	25~50	15~26	25~50	12~22	25~50
Tonnage Rating Point			in	0.51	0.26	0.51	0.26	0.51	0.26
Die Height			in	23.62		27.56		27.56
Slide Adjustment			in	7.87		9.84		9.84
Slide Area(LR×FB)		1	in	86.61×47.24		98.43×55.12		98.43×57.09
		2		98.43×47.24		110.24×55.12		110.24×57.09
		3		110.24×47.24		122.05×55.12		122.05×57.09
		4		122.05×47.24		133.86×55.12		133.86×57.09
		5		133.86×47.24		145.67×55.12		145.67×57.09
Bolster Area(LR×FB)		1	in	86.61×53.94		98.43×55.12		98.43×57.09
		2		98.43×53.94		110.24×55.12		110.24×57.09
		3		110.24×53.94		122.05×55.12		122.05×57.09
		4		122.05×53.94		133.86×55.12		133.86×57.09
		5		133.86×53.94		145.67×55.12		145.67×57.09
Bolster Thickness			in	7.09		7.09		7.09
Window Opening	Bolster Only	FB × UD	in	39.37×19.69		43.31×23.62		47.24×23.62
	Front to Back Rolling Bolster			39.37×19.69		43.31×23.62		47.24×23.62
	Left to Right Rolling Bolster			65.74×27.56		66.93×31.5		68.90×31.5
Max. Upper Die Weight*			LBS	6600		8800		9900
Required Air Pressure			PSI	85.34		85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46		33.46
	Rolling Bolster			25.98		25.98		25.98
Main Motor	w/o Die Cushion		HP×P	50×4		60×4		75×4
	w/ Die Cushion
Die Cushion	Type**			bellows		cylinder		cylinder
	Capacity		U.S. Ton	60.5		66		88
	Stroke Length		in	5.91		7.87		8.66
	Adjustment		in	—		7.87		8.66
Cushion Pad Area(LR×FB)		1	in	66.93×35.43	—	78.74×35.43	—	78.74×37.4	—
		2		78.74×35.43	—	90.55×35.43	—	90.55×37.4	—
		3		90.55×35.43	—	102.36×35.43	—	102.36×37.4	—
		4		102.36×35.43	—	114.17×35.43	—	114.17×37.4	—

Model				SLG2-660		SLG2-880
Type				S	H	S	H
Capacity			U.S. Ton	660		880
Stroke Length			in	17.72	9.84	17.72	11.81
Strokes per Minute			SPM	12~22	25~50	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26
Die Height			in	27.56		31.50
Slide Adjustment			in	9.84		11.81
Slide Area(LR×FB)		1	in	98.43×61.02		110.24×61.02
		2		110.24×61.02		122.05×61.02
		3		122.05×61.02		133.86×61.02
		4		133.86×61.02		145.67×61.02
		5		145.67×61.02		157.48×61.02
Bolster Area(LR×FB)		1	in	98.43×61.02		110.24×61.02
		2		110.24×61.02		122.05×61.02
		3		122.05×61.02		133.86×61.02
		4		133.86×61.02		145.67×61.02
		5		145.67×61.02		157.48×61.02
Bolster Thickness			in	9.84		9.84
Window Opening	Bolster Only	FB × UD	in	51.18×23.62		59.06×27.56
	Front to Back Rolling Bolster			51.18×23.62		59.06×27.56
	Left to Right Rolling Bolster			72.83×31.5		72.83×35.43
Max. Upper Die Weight*			LBS	11000		12100
Required Air Pressure			PSI	85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46
	Rolling Bolster			25.98		25.98
Main Motor	w/o Die Cushion		HP×P	75×4		100×4
	w/ Die Cushion
Die Cushion	Type**			cylinder		cylinder
	Capacity		U.S. Ton	110		132(**)
	Stroke Length		in	8.66		8.66
	Adjustment		in	8.66		8.66
Cushion Pad Area(LR×FB)		1	in	78.74×37.4	—	90.55×51.18	—
		2		90.55×37.4	—	102.36×51.18	—
		3		102.36×37.4	—	114.17×51.18	—
		4		114.17×37.4	—	125.98×51.18	—

Model				SLG2-1100		SLG2-1320
Type				S	H	S	H
Capacity			U.S. Ton	1100		1320
Stroke Length			in	17.72	11.81	17.72	11.81
Strokes per Minute			SPM	10~20	20~40	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26
Die Height			in	31.50		31.50
Slide Adjustment			in	11.81		11.81
Slide Area(LR×FB)		1	in	122.05×61.02		133.86×61.02
		2		133.86×61.02		145.67×61.02
		3		145.67×61.02		157.48×61.02
		4		157.48×61.02		169.29×61.02
		5		169.29×61.02		181.1×61.02
Bolster Area(LR×FB)		1	in	122.05×61.02		133.86×61.02
		2		133.86×61.02		145.67×61.02
		3		145.67×61.02		157.48×61.02
		4		157.48×61.02		169.29×61.02
		5		169.29×61.02		181.1×61.02
Bolster Thickness			in	9.84		11.81
Window Opening	Bolster Only	FB × UD	in	59.06×27.56		59.06×27.56
	Front to Back Rolling Bolster			59.06×27.56		59.06×27.56
	Left to Right Rolling Bolster			72.83×35.43		72.83×35.43
Max. Upper Die Weight*			LBS	13200		15400
Required Air Pressure			PSI	85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46
	Rolling Bolster			29.13		29.13
Main Motor	w/o Die Cushion		HP×P	125×4		125×4
	w/ Die Cushion					150×4
Die Cushion	Type**			cylinder		cylinder
	Capacity		U.S. Ton	165		220
	Stroke Length		in	8.66		8.66
	Adjustment		in	8.66		8.66
Cushion Pad Area(LR×FB)		1	in	102.36×51.18	—	114.17×51.18	—
		2		114.17×51.18	—	125.98×51.18	—
		3		125.98×51.18	—	137.8×51.18	—
		4		137.8×51.18	—	149.61×51.18	—

Model				SLG4-550		SLG4-660		SLG4-880
Type				S	H	S	H	S	H
Capacity			U.S. Ton	550		660		880
Stroke Length			in	17.72	9.84	17.72	9.84	17.72	11.81
Strokes per Minute			SPM	12~22	25~50	12~22	25~50	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26	0.51	0.26
Die Height			in	27.56		27.56		31.50
Slide Adjustment			in	9.84		9.84		11.81
Slide Area(LR×FB)		1	in	98.43×78.74		98.43×78.74		110.24×86.61
		2		110.24×78.74		110.24×78.74		122.05×86.61
		3		122.05×78.74		122.05×78.74		133.86×86.61
		4		133.86×78.74		133.86×78.74		145.67×86.61
		5		145.67×78.74		145.67×78.74		157.48×86.61
Bolster Area(LR×FB)		1	in	98.43×78.74		98.43×78.74		110.24×86.61
		2		110.24×78.74		110.24×78.74		122.05×86.61
		3		122.05×78.74		122.05×78.74		133.86×86.61
		4		133.86×78.74		133.86×78.74		145.67×86.61
		5		145.67×78.74		145.67×78.74		157.48×86.61
Bolster Thickness			in	7.09		9.84		9.84
Window Opening	Bolster Only	FB × UD	in	70.87×23.62		70.87×23.62		78.74×27.56
	Front to Back Rolling Bolster			70.87×23.62		70.87×23.62		78.74×27.56
	Left to Right Rolling Bolster			90.55×31.5		90.55×31.5		98.43×35.43
Max. Upper Die Weight*			LBS	15400		17600		19800
Required Air Pressure			PSI	85.34		85.34		85.34
Bolster Height	Fixed Bolster		in	25.98		25.98		25.98
	Rolling Bolster			25.98		25.98		25.98
Main Motor	w/o Die Cushion		HP×P	75×4		75×4		100×4
	w/ Die Cushion
Die Cushion	Type**			cylinder		cylinder		cylinder
	Capacity		U.S. Ton	88		110	—	132(*)	—
	Stroke Length		in	8.66		8.66	—	8.66	—
	Adjustment		in	8.66		8.66	—	8.66	—
Cushion Pad Area(LR×FB)		1	in	78.74×51.18		78.74×51.18	–	90.55×59.06	—
		2		90.55×51.18		90.55×51.18	–	102.36×59.06	—
		3		102.36×51.18		102.36×51.18	–	114.17×59.06	—
		4		114.17×51.18		114.17×51.18	–	125.98×59.06	—

Model				SLG4-1100		SLG4-1320
Type				S	H	S	H
Capacity			U.S. Ton	1100		1320
Stroke Length			in	17.72	11.81	17.72	11.81
Strokes per Minute			SPM	10~20	20~40	10~20	20~40
Tonnage Rating Point			in	0.51	0.26	0.51	0.26
Die Height			in	31.50		31.50
Slide Adjustment			in	11.81		11.81
Slide Area(LR×FB)		1	in	122.05×86.61		133.86×86.61
		2		133.86×86.61		145.67×86.61
		3		145.67×86.61		157.48×86.61
		4		157.48×86.61		169.29×86.61
		5		169.29×86.61		181.1×86.61
Bolster Area(LR×FB)		1	in	122.05×86.61		133.86×86.61
		2		133.86×86.61		145.67×86.61
		3		145.67×86.61		157.48×86.61
		4		157.48×86.61		169.29×86.61
		5		169.29×86.61		181.1×86.61
Bolster Thickness			in	9.84		11.81
Window Opening	Bolster Only	FB × UD	in	78.74×27.56		78.74×27.56
	Front to Back Rolling Bolster			78.74×27.56		78.74×27.56
	Left to Right Rolling Bolster			98.43×35.43		98.43×35.43
Max. Upper Die Weight*			LBS	19800		22000
Required Air Pressure			PSI	85.34		85.34
Bolster Height	Fixed Bolster		in	29.13		29.13
	Rolling Bolster			29.13		29.13
Main Motor	w/o Die Cushion		HP×P	125×4		125×4		150×4
	w/ Die Cushion
Die Cushion	Type**			cylinder		cylinder		cylinder
	Capacity		U.S. Ton	165	—	220	—
	Stroke Length		in	8.66	—	8.66	—
	Adjustment		in	8.66	—	8.66	—
Cushion Pad Area(LR×FB)		1	in	102.36×59.06	—	114.17×59.06	—
		2		114.17×59.06	—	125.98×59.06	—
		3		125.98×59.06	—	137.8×59.06	—
		4		137.8×59.06	—	149.61×59.06	—

* For SLG4-880-1, only 110T die cushion is available
※ Slide and bolster area up to 216.53×61.02in by request.
※ This specification is subject to change without notice.

SEL Series｜Straight Side Eccentric Gear Link-Motion Press (SEL2-400~1200 / SEL4-400~2400 Specifications)

The prime choice of press equipment for forming process of large pieces, which makes it applicable for forming of large automotive parts. The eccentric gear and connecting rods are adopted for the drive component. The design of low energy consumption can effectively save more than 20% of energy.

Model				SEL2-440		SEL2-550		SEL2-660
Type				S	H	S	H	S	H
Capacity			U.S. Ton	440		550		660
Stroke Length			in	19.69		19.69		19.69
Strokes per Minute			SPM	15~26		12~24		12~22
Tonnage Rating Point			in	0.51	0.26	0.51	0.26	0.51	0.26
Die Height			in	27.56		31.50		31.50
Slide Adjustment			in	11.81		15.75		15.75
Slide Area(LR×FB)		1	in	98.43×55.12		98.43×57.09		98.43×61.02
		2		110.24×55.12		110.24×57.09		110.24×61.02
		3		122.05×55.12		122.05×57.09		122.05×61.02
		4		133.86×55.12		133.86×57.09		133.86×61.02
		5		145.67×55.12		145.67×57.09		145.67×61.02
Bolster Area(LR×FB)		1	in	98.43×55.12		98.43×57.09		98.43×61.02
		2		110.24×55.12		110.24×57.09		110.24×61.02
		3		122.05×55.12		122.05×57.09		122.05×61.02
		4		133.86×55.12		133.86×57.09		133.86×61.02
		5		145.67×55.12		145.67×57.09		145.67×61.02
Bolster Thickness			in	7.09		7.09		9.84
Window Opening	Bolster Only	FB × UD	in	47.24×23.62		47.24×27.56		53.15×27.56
	Front to Back Rolling Bolster			47.24×23.62		47.24×27.56		53.15×27.56
	Left to Right Rolling Bolster			66.93×31.5		68.9×35.43		72.83×35.43
Max. Upper Die Weight*			LBS	11000		13200		13200
Required Air Pressure			PSI	85.34		85.34		85.34
Bolster Height	Fixed Bolster		in	33.46		33.46		33.46
	Rolling Bolster			25.98		25.98		25.98
Main Motor	w/o Die Cushion		HP×P	60×4		75×4		75×4
	w/ Die Cushion
Die Cushion	Type			cylinder		cylinder		cylinder
	Capacity		U.S. Ton	66		88		110
	Stroke Length		in	7.87		8.66		8.66
	Adjustment		in	7.87		8.66		8.66
Cushion Pad Area(LR×FB)		1	in	78.74×35.43	—	78.74×37.4	—	78.74×37.4	—
		2		90.55×35.43	—	90.55×37.4	—	90.55×37.4	—
		3		102.36×35.43	—	102.36×37.4	—	102.36×37.4	—
		4		114.17×35.43	—	114.17×37.4	—	114.17×37.4	—

Model				SEL2-880	SEL2-1100	SEL2-1320
Type				S	S	S
Capacity			U.S. Ton	880	1100	1320
Stroke Length			in	23.62	23.62	31.50
Strokes per Minute			SPM	10~18	10~18	10~18
Tonnage Rating Point			in	0.51	0.51	0.51
Die Height			in	39.37	39.37	43.31
Slide Adjustment			in	15.75	15.75	19.69
Slide Area(LR×FB)		1	in	110.24×66.93	122.05×66.93	133.86×66.93
		2		122.05×66.93	133.86×66.93	145.67×66.93
		3		133.86×66.93	145.67×66.93	157.48×66.93
		4		145.67×66.93	157.48×66.93	169.29×66.93
		5		157.48×66.93	169.29×66.93	181.1×66.93
Bolster Area(LR×FB)		1	in	110.24×66.93	122.05×66.93	133.86×66.93
		2		122.05×66.93	133.86×66.93	145.67×66.93
		3		133.86×66.93	145.67×66.93	157.48×66.93
		4		145.67×66.93	157.48×66.93	169.29×66.93
		5		157.48×66.93	169.29×66.93	181.1×66.93
Bolster Thickness			in	9.84	9.84	11.81
Window Opening	Bolster Only	FB × UD	in	59.06×35.43	59.06×35.43	59.06×39.37
	Front to Back Rolling Bolster			59.06×35.43	59.06×35.43	59.06×39.37
	Left to Right Rolling Bolster			78.74×43.31	78.74×43.31	78.74×47.24
Max. Upper Die Weight*			LBS	15400	15400	17600
Required Air Pressure			PSI	85.34	85.34	85.34
Bolster Height	Fixed Bolster		in	33.46	33.46	33.46
Bolster Height	Rolling Bolster		in	25.98	29.13	29.13
Main Motor	w/o Die Cushion		HP×P	100×4	125×4	125×4
Main Motor	w/ Die Cushion		HP×P	100×4	125×4	150×4
Die Cushion	Type			cylinder	cylinder	cylinder
	Capacity		U.S. Ton	132(*)	165	220
	Stroke Length		in	8.66	8.66	8.66
	Adjustment		in	8.66	8.66	8.66
Cushion Pad Area(LR×FB)		1	in	90.55×51.18	102.36×51.18	114.17×51.18
		2		102.36×51.18	114.17×51.18	125.98×51.18
		3		114.17×51.18	125.98×51.18	137.8×51.18
		4		125.98×51.18	137.8×51.18	149.61×51.18

Model				SEL4-550	SEL4-660	SEL4-880
Type				S	S	S
Capacity			U.S. Ton	550	660	880
Stroke Length			in	19.69	19.69	23.62
Strokes per Minute			SPM	12~24	12~22	10~20
Tonnage Rating Point			in	0.51	0.51	0.51
Die Height			in	31.50	31.50	39.37
Slide Adjustment			in	15.75	15.75	15.75
Slide Area(LR×FB)		1	in	98.43×78.74	98.43×78.74	110.24×86.61
		2		110.24×78.74	110.24×78.74	122.05×86.61
		3		122.05×78.74	122.05×78.74	133.86×86.61
		4		133.86×78.74	133.86×78.74	145.67×86.61
		5		145.67×78.74	145.67×78.74	157.48×86.61
Bolster Area(LR×FB)		1	in	98.43×78.74	98.43×78.74	110.24×86.61
		2		110.24×78.74	110.24×78.74	122.05×86.61
		3		122.05×78.74	122.05×78.74	133.86×86.61
		4		133.86×78.74	133.86×78.74	145.67×86.61
		5		145.67×78.74	145.67×78.74	157.48×86.61
Bolster Thickness			in	7.09	9.84	9.84
Window Opening	Bolster Only	FB × UD	in	70.87×27.56	70.87×27.56	78.74×35.43
	Front to Back Rolling Bolster			70.87×27.56	70.87×27.56	78.74×35.43
	Left to Right Rolling Bolster			90.55×35.43	90.55×35.43	98.43×43.31
Max. Upper Die Weight*			LBS	17600	19800	22000
Required Air Pressure			PSI	85.34	85.34	85.34
Bolster Height	Fixed Bolster		in	25.98	25.98	25.98
Bolster Height	Rolling Bolster		in	25.98	25.98	25.98
Main Motor	w/o Die Cushion		HP×P	75×4	75×4	100×4
Main Motor	w/ Die Cushion		HP×P	75×4	75×4	100×4
Die Cushion	Type			cylinder	cylinder	cylinder
	Capacity		U.S. Ton	88	110	132(*)
	Stroke Length		in	8.66	8.66	9.84
	Adjustment		in	8.66	8.66	9.84
Cushion Pad Area(LR×FB)		1	in	78.74×51.18	78.74×51.18	90.55×59.06
		2		90.55×51.18	90.55×51.18	102.36×59.06
		3		102.36×51.18	102.36×51.18	114.17×59.06
		4		114.17×51.18	114.17×51.18	125.98×59.06

Model				SEL4-1100	SEL4-1320	SEL4-1760
Type				S	S	S
Capacity			U.S. Ton	1100	1320	1760
Stroke Length			in	23.62	31.50	31.50
Strokes per Minute			SPM	10~20	10~20	10~20
Tonnage Rating Point			in	0.51	0.51	0.51
Die Height			in	39.37	43.31	47.24
Slide Adjustment			in	15.75	19.69	19.69
Slide Area(LR×FB)		1	in	122.05×86.61	133.86×86.61	133.86×86.61
		2		133.86×86.61	145.67×86.61	145.67×86.61
		3		145.67×86.61	157.48×86.61	157.48×86.61
		4		157.48×86.61	169.29×86.61	169.29×86.61
		5		169.29×86.61	181.1×86.61	181.1×86.61
Bolster Area(LR×FB)		1	in	122.05×86.61	133.86×86.61	133.86×86.61
		2		133.86×86.61	145.67×86.61	145.67×86.61
		3		145.67×86.61	157.48×86.61	157.48×86.61
		4		157.48×86.61	169.29×86.61	169.29×86.61
		5		169.29×86.61	181.1×86.61	181.1×86.61
Bolster Thickness			in	9.84	11.81	11.81
Window Opening	Bolster Only	FB × UD	in	78.74×35.43	78.74×39.37	78.74×43.31
	Front to Back Rolling Bolster			78.74×35.43	78.74×39.37	78.74×43.31
	Left to Right Rolling Bolster			98.43×43.31	98.43×47.24	98.43×51.18
Max. Upper Die Weight*			LBS	22000	24200	28600
Required Air Pressure			PSI	85.34	85.34	85.34
Bolster Height	Fixed Bolster		in	29.13	29.13	29.13
Bolster Height	Rolling Bolster		in	29.13	29.13	29.13
Main Motor	w/o Die Cushion		HP×P	125×4	125×4	175×4
Main Motor	w/ Die Cushion		HP×P	125×4	150×4	200×4
Die Cushion	Type			cylinder	cylinder	cylinder
	Capacity		U.S. Ton	165	220	264
	Stroke Length		in	9.84	9.84	9.84
	Adjustment		in	9.84	9.84	9.84
Cushion Pad Area(LR×FB)		1	in	102.36×59.06	114.17×59.06	114.17×59.06
		2		114.17×59.06	125.98×59.06	125.98×59.06
		3		125.98×59.06	137.8×59.06	137.8×59.06
		4		137.8×59.06	149.61×59.06	149.61×59.06

Model				SEL4-2200	SEL4-2640
Type				S	S
Capacity			U.S. Ton	2200	2640
Stroke Length			in	35.43	39.37
Strokes per Minute			SPM	10~20	10~20
Tonnage Rating Point			in	0.51	0.51
Die Height			in	51.18	55.12
Slide Adjustment			in	23.62	23.62
Slide Area(LR×FB)		1	in	157.48×86.61	157.48×86.61
		2		169.29×86.61	169.29×86.61
		3		181.1×86.61	181.1×86.61
		4		192.91×86.61	192.91×86.61
		5		204.72×86.61	204.72×86.61
Bolster Area(LR×FB)		1	in	157.48×86.61	157.48×86.61
		2		169.29×86.61	169.29×86.61
		3		181.1×86.61	181.1×86.61
		4		192.91×86.61	192.91×86.61
		5		204.72×86.61	204.72×86.61
Bolster Thickness			in	11.81	11.81
Window Opening	Bolster Only	FB × UD	in	78.74×47.24	78.74×51.18
	Front to Back Rolling Bolster			78.74×47.24	78.74×51.18
	Left to Right Rolling Bolster			98.43×55.12	98.43×59.06
Max. Upper Die Weight*			LBS	33000	44000
Required Air Pressure			PSI	85.34	85.34
Bolster Height	Fixed Bolster		in	29.13	29.13
Bolster Height	Rolling Bolster		in	29.13	29.13
Main Motor	w/o Die Cushion		HP×P	200×4	250×4
Main Motor	w/ Die Cushion		HP×P	250×4	300×4
Die Cushion	Type			cylinder	cylinder
	Capacity		U.S. Ton	330	330
	Stroke Length		in	11.81	11.81
	Adjustment		in	11.81	11.81
Cushion Pad Area(LR×FB)		1	in	137.8×59.06	137.8×59.06
		2		149.61×59.06	149.61×59.06
		3		161.42×59.06	161.42×59.06
		4		173.23×59.06	173.23×59.06

* For SEL4-880-1, only 110T die cushion is available
※ Slide and bolster area up to 216.53×61.02in by request.
※ This specification is subject to change without notice.

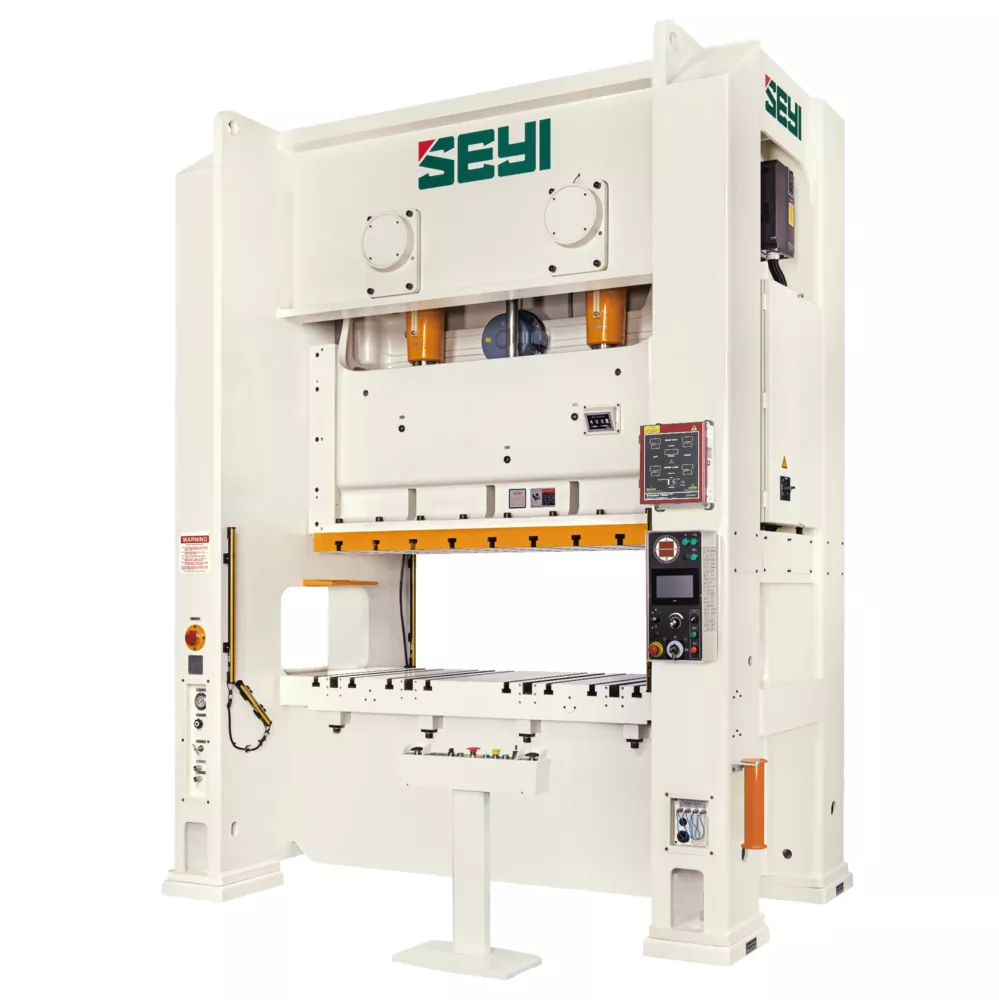

SNS Series｜Solid Frame Crank Press (SNS1-80~300 / SNS2-160~500 Specifications)

This series is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical Robot or added with transfer system.

Model		SNS1-88		SNS1-121		SNS1-176
Type		S	H	S	H	S	H
Capacity	U.S. ton	88		121		176
Stroke Length	in	5.91	3.94	7.09	4.33	7.87	5.12
Strokes per Minute	SPM	40~75	55~125	35~65	50~110	30~55	40~95
Tonnage Rating Point	in	0.20		0.20		0.24
Die Height	in	12.99	11.81	13.78	12.60	15.75	14.17
Slide Adjustment	in	3.15		3.54		3.94
Slide Area(LRxFB)	in	27.56×18.11		31.50×20.47		35.43×22.83
Diameter of Shank Hole	in	ø2		ø2		ø2.56
Bolster Area(LRxFB)	in	35.43×26.77	35.43×18.11	39.37×26.77	39.37×20.47	45.28×29.92	45.28×33.62
Bolster Thickness	in	5.51		6.10		6.50
Bolster Height(w/o Mounts)	in	35.43		35.43		37.01	35.43
Main Motor (Fixed Speed+Inverter)	HP x P	10×4		15×4		20×4
Slide Adjustment Motor	HP x P	0.5×4		0.5×4		1×4
Window Opening(FBxUD)	in	17.32×11.02	14.57×9.84	19.69×11.81	16.54×10.63	22.05×13.78	18.50×12.20
Foot Print	in	56.30×57.87	56.30×55.91	61.42×62.99	61.42×61.02	67.72×70.08	67.72×68.11
Floor Space Required	in	64.17×68.50		69.49×73.82		75×80.91
Press Height(w/o Mounts)	in	108.86		118.11		130.71	129.13
Max. Upper Die Weight	LBS	660		880		880
Required Air Pressure	PSI	71		71		71
Die Cushion (Option)
Capacity	U.S. ton	6.6	–	6.6	–	8.8	–
Stroke Length	in	3.74	–	3.74	–	4.33	–
Cushion Pad Area (LR × FB)	in	18.90×13.39	–	18.90×13.39	–	22.05×14.57	–

Model		SNS1-220		SNS1-275		SNS1-330
Type		S	H	S	H	S	H
Capacity	U.S. ton	220		275		330
Stroke Length	in	8.66	5.91	9.84	7.09	11.02	7.09
Strokes per Minute	SPM	25~45	35~80	22~40	30~60	20~35	25~50
Tonnage Rating Point	in	0.24		0.24		0.24
Die Height	in	17.72	15.75	17.72	15.75	19.69	15.75
Slide Adjustment	in	4.33		4.72		4.72
Slide Area(LRxFB)	in	39.37×25.59		43.31×28.35		45.28×31.50
Diameter of Shank Hole	in	ø2.56		ø2.56		ø2.56
Bolster Area(LRxFB)	in	49.21×33.07	49.21×26.77	53.15×35.43	53.15×29.53	55.12×41.34	55.12×33.46
Bolster Thickness	in	7.09		7.09		7.87
Bolster Height(w/o Mounts)	in	40.16	39.37	40.16	39.37	40.94	40.16
Main Motor (Fixed Speed+Inverter)	HP x P	25×4		30×4		40×4
Slide Adjustment Motor	HP x P	1×4		1×4		2×4
Window Opening(FBxUD)	in	24.41×15.75	20.47×13.78	26.77×15.75	22.44×13.78	29.92×17.72	25.59×13.78
Foot Print	in	73.62×77.95	73.62×75.98	78.35×84.65	78.35×82.68	81.50×90.43	81.50×88.46
Floor Space Required	in	80.91×88.39		85.63×98.43		88.78×101.57
Press Height(w/o Mounts)	in	147.24	146.46	158.27	157.48	165.35	158.66
Max. Upper Die Weight	LBS	1760		2200		2700
Required Air Pressure	PSI	71		71		71
Die Cushion (Option)
Capacity	U.S. ton	11	–	11	–	15.4	–
Stroke Length	in	5.12	–	5.12	–	5.51	–
Cushion Pad Area (LR × FB)	in	27.56×17.72	–	27.56×17.72	–	27.56×17.72	–

Model		SNS2-176		SNS2-220		SNS2-275
Type		S	H	S	H	S		H
Capacity	U.S. ton	176		220		275
Stroke Length	in	7.87	5.12	9.06	5.91	9.84		7.09
Strokes per Minute	SPM	30~60	40~90	25~50	35~70	22~40		30~60
Tonnage Rating Point	in	0.24	0.16	0.28	0.16	0.28		0.20
Die Height	in	17.72	15.75	19.69	17.72	21.65		17.72
Slide Adjustment	in	3.94		3.94		4.72
Slide Area(LRxFB)	in	61.42×25.59		72.83×29.53		1	86.61×32.28
						2	98.43×32.28
Diameter of Shank Hole	in	Φ2.01×3		Φ2.01×3		Φ2.01×3
Bolster Area(LRxFB)	in	72.83×29.92		86.61×33.07		1	98.43×36.22
						2	110.24×36.22
Bolster Thickness	in	6.30		6.69		7.09
Bolster Height (w/o Mounts)	in	37.10		39.37		1	43.31
						2	45.28
Main Motor (Fixed Speed+Inverter)	HP×P	20×4		25×4		30×4
Slide Adjustment Motor	HP×P	2×4		2×4		2×4
Window Opening(FB)	in	25.98		29.13		32.28
Window Opening(UD)	in	15.75	12.60	17.72	13.78	18.11		13.78
Foot Print	in	102.36×56.30		115.35×64.96		1	129.53×70.47
						2	145.28×70.47
Floor Space Required	in	106.50×92.32		119.88×98.03		1	133.46×100.59
						2	149.21×100.59
Press Height (w/o Mounts)	in	138.19	135.83	152.95	150.79	1	164.57	3	159.45
						2	166.54	4	161.42
Max. Upper Die Weight	LBS	3086		4409		1	4850
						2	5510
Required Air Pressure	PSI	85		85		85
Die Cushion (Option)
Capacity	U.S. ton	8.8×2	–	11×2	–	15.4×2	–
Stroke Length	in	4.33	–	5.12	–	5.51	–
Cushion Pad Area (LR × FB)	in	22.05×14.57×2		27.56×17.72×2		27.56×17.72×2

Model		SNS2-330				SNS2-440				SNS2-550
Type		S		H		S		H		S			H
Capacity	U.S. ton	330				440				550
Stroke Length	in	11.02		7.09		11.81		7.87		11.81			7.87
Strokes per Minute	SPM	20~40		25~50		20~40		25~50		20~40			25~50
Tonnage Rating Point	in	0.28		0.20		0.28		0.24		0.28			0.24
Die Height	in	21.65		17.72		23.62		17.72		23.62			17.72
Slide Adjustment	in	4.72				4.72				4.72
Slide Area(LRxFB)	in	1	86.61×35.43			1	86.61×39.37			1		86.61×43.31
		2	98.43×35.43			2	98.43×39.37			2		98.43×43.31
		3	110.24×35.43			3	110.24×39.37			3		110.24×43.31
		4	122.05×35.43			4	122.05×39.37			4		122.05×43.31
Diameter of Shank Hole	in	Φ2.01×3				Φ2.01×3				Φ2.01×3
Bolster Area(LRxFB)	in	1	98.43×39.37			1	98.43×43.31			1		98.43×47.24
		2	110.24×39.37			2	110.24×43.31			2		110.24×47.24
		3	122.05×39.37			3	122.05×43.31			3		122.05×47.24
		4	133.86×39.37			4	133.86×43.31			4		133.86×47.24
Bolster Thickness	in	7.87				7.87				7.87
Bolster Height (w/o Mounts)	in	1、2	45.28			49.21				49.21
		3、4	49.21
Main Motor (Fixed Speed+Inverter)	HP×P	40×4				50×4				60×4
Slide Adjustment Motor	HP×P	2×4				2×4				2×4
Window Opening(FB)	in	35.43				39.37				43.31
Window Opening(UD)	in	19.69		13.78		21.65		15.75		21.65			15.75
Foot Print	in	1	133.46×73.62			1	134.25×81.50			1	144.49×85.43
		2	145.28×73.62			2	146.06×81.50			2	156.30×85.43
		3	157.48×73.62			3	157.87×81.50			3	159.45×85.43
		4	169.29×73.62			4	169.69×81.50			4	171.26×85.43
Floor Space Required	in	1	137.40×104.92			1	139.57×116.34			1	149.61×126.38
		2	149.21×104.92			2	151.38×116.34			2	161.42×126.38
		3	161.42×101.38			3	163.19×116.34			3	164.57×126.38
		4	173.23×101.38			4	175×116.34			4	176.38×126.38
Press Height (w/o Mounts)	in	1,2	177.36	1,2	171.46	1,2	189.76	1,2	179.72	1,2	197.64		1,2	187.80
		3,4	181.89	3,4	175.98	3,4	191.54	3,4	185.63	3,4	197.64		3,4	187.80
Max. Upper Die Weight	LBS	1,2	6172			1,2	6614			1,2	7055
		3,4	6614			3,4	7055			3,4	7496
Required Air Pressure	PSI	85				85				85
Die Cushion (Option)
Capacity	U.S. ton	15.4×2	–			15.4×2	–			15.4×2	–
Stroke Length	in	5.51	–			5.51	–			5.51	–
Cushion Pad Area (LR × FB)	in	27.56×17.72×2				27.56×17.72×2				27.56×17.72×2

※ For special specifications or requirements of 1100T or above, please contact your local supplier.
※ This specification is subject to change without notice.

SLS Series｜Solid Frame Link-Motion Press (SLS1-80~300 / SLS2-160~500 Specifications)

This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical Robot or added with transfer system.

Model		SLS1-88		SLS1-121		SLS1-176
Type		S	H	S	H	S	H
Capacity	U.S. ton	88		121		176
Stroke Length	in	5.91	3.94	7.09	4.33	7.87	5.12
Strokes per Minute	SPM	40~80	55~110	35~65	50~110	30~55	40~85
Tonnage Rating Point	in	0.20		0.20		0.24
Die Height	in	12.99	11.81	13.78	12.60	15.75	14.17
Slide Adjustment	in	3.15		3.54		3.94
Slide Area(LRxFB)	in	27.56×18.11		31.50×20.47		35.43×22.83
Diameter of Shank Hole	in	ø2		ø2		ø2.56
Bolster Area(LRxFB)	in	35.43×26.77	35.43×18.11	39.37×26.77	39.37×20.47	45.28×29.92	45.28×33.62
Bolster Thickness	in	5.51		6.10		6.50
Bolster Height(w/o Mounts)	in	35.43		35.43		37.01	35.43
Main Motor (Fixed Speed+Inverter)	HP x P	10×4		15×4		20×4
Slide Adjustment Motor	HP x P	0.5×4		0.5×4		1×4
Window Opening(FBxUD)	in	17.32×11.02	14.57×9.84	19.69×11.81	16.54×10.63	22.05×13.78	18.50×12.20
Foot Print	in	56.30×57.87	56.30×55.91	61.42×62.99	61.42×61.02	67.72×70.08	67.72×68.11
Floor Space Required	in	64.17×68.50		69.49×73.82		75×80.91
Press Height(w/o Mounts)	in	108.86		118.11		130.71	129.13
Max. Upper Die Weight	LBS	660		880		880
Required Air Pressure	PSI	71		71		71
Die Cushion (Option)
Capacity	U.S. ton	6.6	–	6.6	–	8.8	–
Stroke Length	in	3.74	–	3.74	–	4.33	–
Cushion Pad Area (LR × FB)	in	18.90×13.39	–	18.90×13.39	–	22.05×14.57	–

Model		SLS1-220		SLS1-275		SLS1-330
Type		S	H	S	H	S	H
Capacity	U.S. ton	220		275		330
Stroke Length	in	8.66	5.91	9.84	7.09	11.02	7.09
Strokes per Minute	SPM	25~45	35~70	22~40	30~65	20~35	25~50
Tonnage Rating Point	in	0.24		0.24		0.24
Die Height	in	17.72	15.75	17.72	15.75	19.69	15.75
Slide Adjustment	in	4.33		4.72		4.72
Slide Area(LRxFB)	in	39.37×25.59		43.31×28.35		45.28×31.50
Diameter of Shank Hole	in	ø2.56		ø2.56		ø2.56
Bolster Area(LRxFB)	in	49.21×33.07	49.21×26.77	53.15×35.43	53.15×29.53	55.12×41.34	55.12×33.46
Bolster Thickness	in	7.09		7.09		7.87
Bolster Height(w/o Mounts)	in	40.16	39.37	40.16	39.37	40.94	40.16
Main Motor (Fixed Speed+Inverter)	HP x P	25×4		30×4		40×4
Slide Adjustment Motor	HP x P	1×4		1×4		2×4
Window Opening(FBxUD)	in	24.41×15.75	20.47×13.78	26.77×15.75	22.44×13.78	29.92×17.72	25.59×13.78
Foot Print	in	73.62×77.95	73.62×75.98	78.35×84.65	78.35×82.68	81.50×90.43	81.50×88.46
Floor Space Required	in	80.91×88.39		85.63×98.43		88.78×101.57
Press Height(w/o Mounts)	in	147.24	146.46	158.27	157.48	165.35	158.66
Max. Upper Die Weight	LBS	1760		2200		2700
Required Air Pressure	PSI	71		71		71
Die Cushion (Option)
Capacity	U.S. ton	11	–	11	–	15.4	–
Stroke Length	in	5.12	–	5.12	–	5.51	–
Cushion Pad Area (LR × FB)	in	27.56×17.72	–	27.56×17.72	–	27.56×17.72	–

Model		SLS2-176		SLS2-220		SLS2-275
Type		S	H	S	H	S		H
Capacity	U.S. ton	176		220		275
Stroke Length	in	7.87	5.12	9.06	5.91	9.84		5.91
Strokes per Minute	SPM	30~55	40~90	25~50	35~70	22~40		30~60
Tonnage Rating Point	in	0.24	0.20	0.28	0.20	0.28		0.24
Die Height	in	17.72	15.75	19.69	17.72	21.65		17.72
Slide Adjustment	in	3.94		3.94		4.72
Slide Area(LRxFB)	in	61.42×25.59		72.83×29.53		1	86.61×32.28
						2	98.43×32.28
Diameter of Shank Hole	in	Φ2.01×3		Φ2.01×3		Φ2.01×3
Bolster Area(LRxFB)	in	72.83×29.92		86.61×33.07		1	98.43×36.22
						2	110.24×36.22
Bolster Thickness	in	6.30		6.69		7.09
Bolster Height (w/o Mounts)	in	37.40		39.37		1	43.31
						2	45.28
Main Motor (Fixed Speed+Inverter)	HP×P	20×4		25×4		30×4
Slide Adjustment Motor	HP×P	2×4		2×4		2×4
Window Opening(FB)	in	25.98		29.13		32.28
Window Opening(UD)	in	15.75	12.60	17.72	13.78	18.11		13.78
Foot Print	in	102.36×61.42		115.35×64.96		1	129.53×72.83
						2	145.28×72.83
Floor Space Required	in	105.32×94.69		118.31×98.23		1	132.48×106.10
						2	148.23×106.10
Press Height (w/o Mounts)	in	145.67	143.31	158.46	156.10	1	168.70	3	163.39
						2	170.67	4	172.05
Max. Upper Die Weight	LBS	3086		4409		1	4850
						2	5511
Required Air Pressure	PSI	85		85		85
Die Cushion (Option)
Capacity	U.S. ton	8.8×2	–	11×2	–	15.4×2	–
Stroke Length	in	4.33	–	5.12	–	5.51	–
Cushion Pad Area (LR × FB)	in	22.05×14.57×2		27.56×17.72×2		27.56×17.72×2

Model		SLS2-330				SLS2-440				SLS2-550
Type		S		H		S		H		S			H
Capacity	U.S. ton	330				440				550
Stroke Length	in	11.02		5.91		11.81		7.87		11.81			7.87
Strokes per Minute	SPM	20~35		25~50		15~35		25~45		15~30			25~40
Tonnage Rating Point	in	0.28		0.28		0.28		0.28		0.28			0.28
Die Height	in	21.65		17.72		23.62		17.72		23.62			17.72
Slide Adjustment	in	4.72				4.72				4.72
Slide Area(LRxFB)	in	1	86.61×35.43			1	86.61×39.37			1		86.61×43.31
		2	98.43×35.43			2	98.43×39.37			2		98.43×43.31
		3	110.24×35.43			3	110.24×39.37			3		110.24×43.31
		4	122.05×35.43			4	122.05×39.37			4		122.05×43.31
Diameter of Shank Hole	in	Φ2.01×3				Φ2.01×3				Φ2.01×3
Bolster Area(LRxFB)	in	1	98.43×39.37			1	98.43×43.31			1		98.43×47.24
		2	110.24×39.37			2	110.24×43.31			2		110.24×47.24
		3	122.05×39.37			3	122.05×43.31			3		122.05×47.24
		4	133.86×39.37			4	133.86×43.31			4		133.86×47.24
Bolster Thickness	in	7.87				7.87				7.87
Bolster Height (w/o Mounts)	in	1、2	45.28			49.21				49.21
		3、4	49.21
Main Motor (Fixed Speed+Inverter)	HP×P	40×4				50×4				60×4
Slide Adjustment Motor	HP×P	2×4				2×4				2×4
Window Opening(FB)	in	35.43				39.37				43.31
Window Opening(UD)	in	19.69		13.78		21.65		15.75		21.65			15.75
Foot Print	in	1	133.46×75.98			1	134.25×81.50			1	144.49×85.43
		2	145.28×75.98			2	146.06×81.50			2	156.30×85.43
		3	157.48×75.98			3	157.87×81.50			3	159.45×85.43
		4	169.29×75.98			4	169.69×81.50			4	171.26×85.43
Floor Space Required	in	1	137.40×109.45			1	137.20×124.41			1	147.44×128.54
		2	148.23×109.45			2	149.02×124.41			2	160.43×128.54
		3	160.43×110.43			3	160.83×124.41			3	172.24×128.54
		4	172.24×110.43			4	172.64×124.41			4	184.06×128.54
Press Height (w/o Mounts)	in	1,2	177.36	1,2	171.46	1,2	193.31	1,2	187.80	1,2	200.98		1,2	195.08
		3,4	187.60	3,4	183.66	3,4	196.46	3,4	190.55	3,4	203.74		3,4	197.83
Max. Upper Die Weight	LBS	1,2	6172			1,2	6614			1,2	7055
		3,4	6614			3,4	7055			3,4	7496
Required Air Pressure	PSI	85				85				85
Die Cushion (Option)
Capacity	U.S. ton	15.4×2	–			15.4×2	–			15.4×2	–
Stroke Length	in	5.51	–			5.51	–			5.51	–
Cushion Pad Area (LR × FB)	in	27.56×17.72×2				27.56×17.72×2				27.56×17.72×2

※ For special specifications or requirements of 1100T or above, please contact your local supplier.
※ This specification is subject to change without notice.

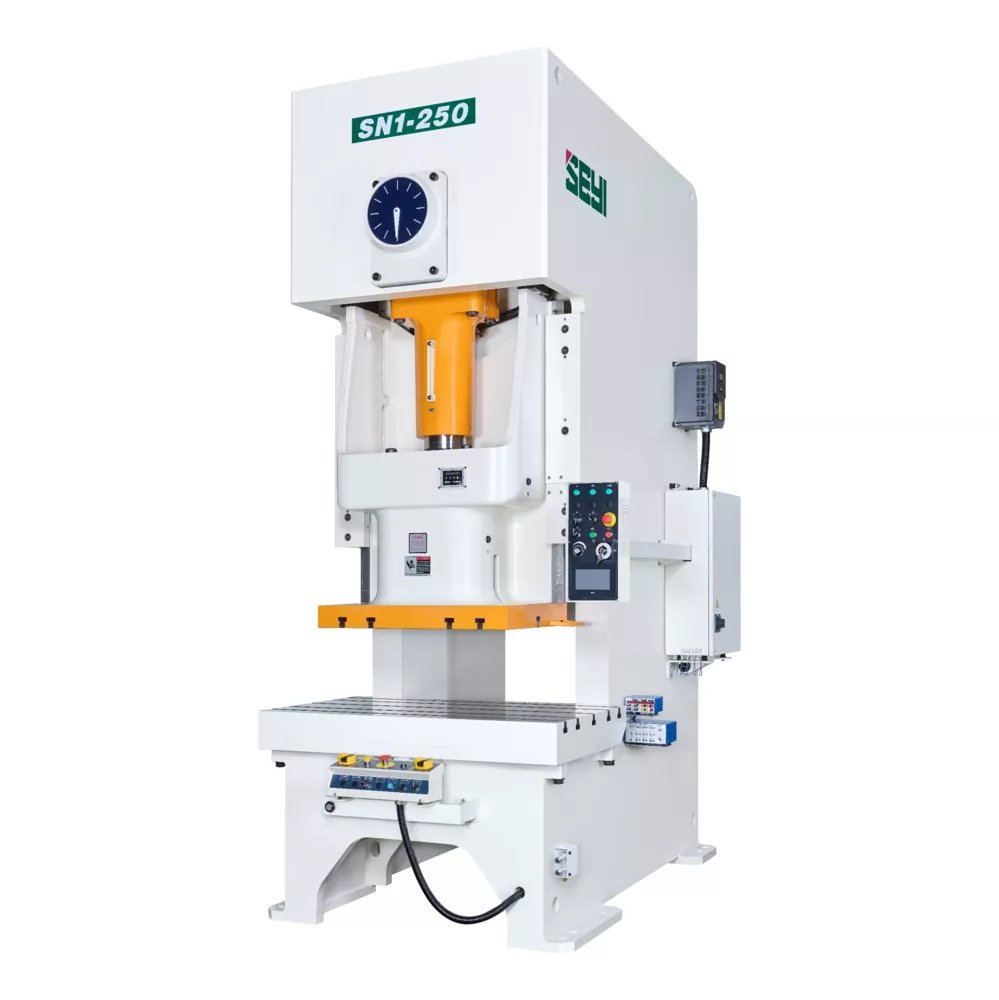

SN Series｜C Frame Crank Press (SN1-25~250 / SN2-110~300 Specifications)

Model			SN1-28			SN1-39
Type			S	H	P	S	H	P
Capacity		U.S. ton	28			39
Stroke Length		in	3.15	1.97	1.38	3.54	2.36	1.57
Strokes per Minute	Fixed Speed	SPM	90	110	140	80	100	130
	Variable Speed		70-110	80-140	80-180	60-105	70-140	80-180
Tonnage Rating Point		in	0.13		0.09	0.13		0.09
Die Height		in	9.06	7.87		9.84	8.66
Slide Adjustment		in	1.97			1.97
Slide Area(LRxFB)		in	12.99×9.84			14.96×11.81
Diameter of Shank Hole		in	Φ1.50			Φ2
Bolster Area(LRxFB)		in	27.56×12.60			30.71×15.75
Bolster Thickness		in	3.35			3.94
Bolster Height		in	31.50			31.50
Frame-Inside Distance		in	15.28			19.13
Frame-Gap Distance		in	6.69			8.27
P.T.O. Shaft Position		in	13.82×38.70×15.08			15.87×42.05×15.94
Main Motor	Fixed Speed	HPxP	5×4			5×4
	Variable Speed		5×4			5×4
Slide Adjustment Motor		HPxP	—			—
Foot Print		in	28.35×41.65			32.68×44.29
Position of Anchor Bolts		in	24.41×34.57			28.74×36.42
Floor Space Required		in	34.45×53.54			38.78×56.10
Press Height		in	81.10			86.02
Required Air Pressure		PSI	71			71
Die Cushion	Capacity	kN	2.42	—	—	2.42	—	—
	Stroke Length	mm	1.97	—	—	1.97	—	—
	Cushion Pad Area(LRxFB)	mm	11.61×8.27	—	—	11.61×8.27	—	—

Model			SN1-50			SN1-66
Type			S	H	P	S	H	P
Capacity		U.S. ton	50			66
Stroke Length		in	4.33	2.76	1.77	5.12	3.15	1.97
Strokes per Minute	Fixed Speed	SPM	70	90	120	60	80	100
	Variable Speed		50-85	60-120	80-160	40-85	55-110	70-150
Tonnage Rating Point		in	0.13		0.09	0.16		0.09
Die Height		in	10.63	9.45		11.81	10.63
Slide Adjustment		in	2.36			2.76
Slide Area(LRxFB)		in	16.93×13.78			18.90×15.75
Diameter of Shank Hole		in	Φ2			Φ2
Bolster Area(LRxFB)		in	33.07×17.32			35.43×20.47
Bolster Thickness		in	4.53			5.12
Bolster Height		in	31.50			35.43
Frame-Inside Distance		in	20.31			21.42
Frame-Gap Distance		in	9.06			10.63
P.T.O. Shaft Position		in	16.85×45.59×17.20			17.72×50.59×18.82
Main Motor	Fixed Speed	HPxP	5×4			7.5×4
	Variable Speed		5×4			7.5×4
Slide Adjustment Motor		HPxP	—			0.4×4
Foot Print		in	35.04×47.64			37.01×51.77
Position of Anchor Bolts		in	31.10×39.76			33.07×43.90
Floor Space Required		in	40.75×59.45			42.72×63.78
Press Height		in	90.16			100.00
Required Air Pressure		PSI	71			71
Die Cushion	Capacity	kN	3.85	—	—	3.85	—	—
	Stroke Length	mm	2.76	—	—	2.76	—	—
	Cushion Pad Area(LRxFB)	mm	13.39×9.21	—	—	13.39×9.21	—	—

Model			SN1-88			SN1-121
Type			S	H	P	S	H	P
Capacity		U.S. ton	88			121
Stroke Length		in	5.91	3.94	2.36	7.09	4.33	2.76
Strokes per Minute	Fixed Speed	SPM	60	80	100	50	70	90
	Variable Speed		40-85	50-100	65-150	35-75	45-100	60-135
Tonnage Rating Point		in	0.20		0.13	0.20		0.13
Die Height		in	12.99	11.81		13.78	12.60
Slide Adjustment		in	3.15			3.54
Slide Area(LRxFB)		in	22.05×18.11			25.59×20.47
Diameter of Shank Hole		in	Φ2			Φ2
Bolster Area(LRxFB)		in	41.34×23.62			45.28×26.77
Bolster Thickness		in	5.51			6.10
Bolster Height		in	35.43			35.43
Frame-Inside Distance		in	24.17			26.38
Frame-Gap Distance		in	12.20			13.78
P.T.O. Shaft Position		in	19.96×56.89×20.16			23.46×64.17×24.17
Main Motor	Fixed Speed	HPxP	7.5×4			10×4
	Variable Speed		10×4			10×4	15×4
Slide Adjustment Motor		HPxP	0.4×4			0.4×4
Foot Print		in	41.34×58.27			45.67×66.14
Position of Anchor Bolts		in	37.40×48.43			41.73×54.33
Floor Space Required		in	47.05×70.28			51.57×78.15
Press Height		in	108.46			117.72
Required Air Pressure		PSI	71			71
Die Cushion	Capacity	kN	6.60	—	—	8.80	—	—
	Stroke Length	mm	3.15	—	—	3.54	—	—
	Cushion Pad Area(LRxFB)	mm	16.14×10.24	—	—	18.90×11.81	—	—

Model			SN1-176			SN1-220
Type			S	H	P	S	H	P
Capacity		U.S. ton	176			220
Stroke Length		in	7.87	5.12	3.15	8.66	5.91	3.54
Strokes per Minute	Fixed Speed	SPM	40	60	80	35	50	65
	Variable Speed		30-50	35-70	50-100	25-55	30-70	40-95
Tonnage Rating Point		in	0.24		0.16	0.24		0.16
Die Height		in	15.75	14.17		17.72	15.75
Slide Adjustment		in	3.94			4.33
Slide Area(LRxFB)		in	28.35×22.83			33.86×25.59
Diameter of Shank Hole		in	Φ2.56			Φ2.56
Bolster Area(LRxFB)		in	49.21×29.92			55.12×33.07
Bolster Thickness		in	6.50			7.09
Bolster Height		in	35.43			39.37
Frame-Inside Distance		in	28.74			35.43
Frame-Gap Distance		in	15.35			16.93
P.T.O. Shaft Position		in	25.43×71.22×27.01			29.76×81.38×28.58
Main Motor	Fixed Speed	HPxP	15×4			20×4
	Variable Speed		15×4	20×4		20×4
Slide Adjustment Motor		HPxP	0.7×4			0.7×4
Foot Print		in	51.18×78.15			58.27×83.19
Position of Anchor Bolts		in	46.46×65.16			53.54×69.02
Floor Space Required		in	59.45×90.16			66.54×95.08
Press Height		in	128.74			146.65
Required Air Pressure		PSI	71			71
Die Cushion	Capacity	kN	11.00	—	—	15.40	—	—
	Stroke Length	mm	3.94	—	—	4.33	—	—
	Cushion Pad Area(LRxFB)	mm	21.26×13.39	—	—	25.20×17.32	—	—

Model			SN1-275			SN1-330
Type			S	H	P	S	H	P
Capacity		U.S. ton	275			330
Stroke Length		in	9.84	7.09	3.94	9.84	7.09
Strokes per Minute	Fixed Speed	SPM	30	45	55	30	45	55
	Variable Speed		22-50	30-60	30-80	20-40	25-50	30-70
Tonnage Rating Point		in	0.24		0.16	0.24		0.16
Die Height		in	17.72	15.75		19.69	15.75
Slide Adjustment		in	4.72			4.72
Slide Area(LRxFB)		in	37.80×28.35			39.37×29.53
Diameter of Shank Hole		in	Φ2.56			Φ2.56
Bolster Area(LRxFB)		in	59.06×35.43			1600×900
Bolster Thickness		in	7.09			7.87
Bolster Height		in	39.37			40.94
Frame-Inside Distance		in	38.19			39.76
Frame-Gap Distance		in	18.11			18.11
P.T.O. Shaft Position		in	31.34×89.06×33.23			33.31×97.17×36.22
Main Motor	Fixed Speed	HPxP	25×4			22×4
	Variable Speed		25×4			22×4
Slide Adjustment Motor		HPxP	0.7×4			1.5×4
Foot Print		in	61.42×94.49			65.35×94.49
Position of Anchor Bolts		in	56.69×78.74			60.63×78.74
Floor Space Required		in	69.69×106.50			78.19×107.56
Press Height		in	157.68			173.46
Required Air Pressure		PSI	71			71
Die Cushion	Capacity	kN	15.40	—	—	15.40	―	―
	Stroke Length	mm	4.72	—	—	4.72	―	―
	Cushion Pad Area(LRxFB)	mm	29.13×21.26	—	—	29.13×21.26	―	―

Model				SN2-121		SN2-176		SN2-220
Type				S	H	S	H	S	H
Capacity			U.S. ton	121		176		220
Stroke Length			in	7.09	4.33	7.87	5.12	9.06	5.91
Strokes per Minute	Fixed Speed		SPM	50	70	40	60	35	50
	Variable Speed			35~65	45~90	30~60	35~75	25~50	30~60
Tonnage Rating Point			in	0.20		0.24		0.28
Die Height			in	15.75	13.78	17.72	15.75	19.69	17.72
Slide Adjustment			in	3.54		3.94		4.33
Slide Area(LRxFB)			in	56.30×20.47		61.42×22.83		72.83×25.59
Diameter of Shank Hole			in	Φ2.01×3		Φ2.01×3		Φ2.01×3
Bolster Area(LRxFB)			in	74.02×26.77		80.31×29.92		95.28×33.07
Bolster Thickness			in	5.91		6.30		6.69
Bolster Height			in	35.43		37.40		39.37
Frame-Inside Distance			in	57.87		62.60		75.98
Frame-Gap Distance			in	13.78		15.35		16.93
P.T.O. Shaft Position			in	39.57×66.34×24.21	39.57×62.99×24.21	42.72×73.03×25.98	42.72×69.69×25.98	49.61×82.95×27.95	49.61×79.41×27.95
Main Motor			HPxP	10×4	15×4	15×4	20×4	20×4
Slide Adjustment Motor			HPxP	1×4		1×4		2×4
Foot Print			in	77.17×69.29	77.17×67.13	85.43×79.92	85.43×77.56	99.21×85.24	99.21×83.27
Position of Anchor Bolts			in	73.23×55.51	73.23×53.35	80.71×62.60	80.71×60.24	94.49×67.91	94.49×65.94
Floor Space Required			in	86.22×71.26	86.22×71.26	93.50×82.09	93.50×82.09	107.28×87.80	107.28×87.80
Press Height			in	122.44	119.09	133.07	129.72	148.03	144.49
Required Air Pressure			PSI	71		71		71
Die Cushion		Capacity		6.6×2	—	8.8×2	—	11×2	—
		Stroke Length		3.74	—	4.83	—	5.12	—
		Cushion Pad Area(LRxFB)		18.90×13.39×2	—	22.05×14.57×2	—	27.56×17.72×2	—

Model				SN2-275		SN2-330
Type				S	H	S	H
Capacity			U.S. ton	275		330
Stroke Length			in	9.84	7.09	11.02	7.09
Strokes per Minute		Fixed Speed	SPM	30	45	30	45
		Variable Speed		22~45	30~50	20~35	30~50
Tonnage Rating Point			in	0.28		0.28
Die Height			in	21.65	17.72	21.65	17.72
Slide Adjustment			in	4.72		4.72
Slide Area(LRxFB)			in	82.68×27.56		82.68×31.50
Diameter of Shank Hole			in	Φ2.01×3		Φ2.01×3
Bolster Area(LRxFB)			in	106.30×36.22		106.30×37.01
Bolster Thickness			in	7.09		7.87
Bolster Height			in	43.31		43.31
Frame-Inside Distance			in	86.22		85.83
Frame-Gap Distance			in	18.50		18.90
P.T.O. Shaft Position			in	55.31×90.75×30.31	55.31×85.43×30.31	55.91×95.87×31.50	55.91×89.96×31.50
Main Motor			HPxP	30×4		30×4
Slide Adjustment Motor			HPxP	2×4		2×4
Foot Print			in	110.63×97.24	110.63×94.29	111.81×101.18	111.81×97.24
Position of Anchor Bolts			in	105.91×77.56	105.91×74.61	107.09×80.12	107.09×76.18
Floor Space Required			in	118.70×99.61	118.70×99.61	119.88×102.36	119.88×102.36
Press Height			in	163.39	158.07	172.44	166.54
Required Air Pressure			PSI	71		71
Die Cushion	Capacity			15.4×2	—	15.4×2	—
	Stroke Length			5.51	—	5.51	—
	Cushion Pad Area(LRxFB)			27.56×17.72×2	—	27.56×17.72×2	—

※ This specification is subject to change without notice.

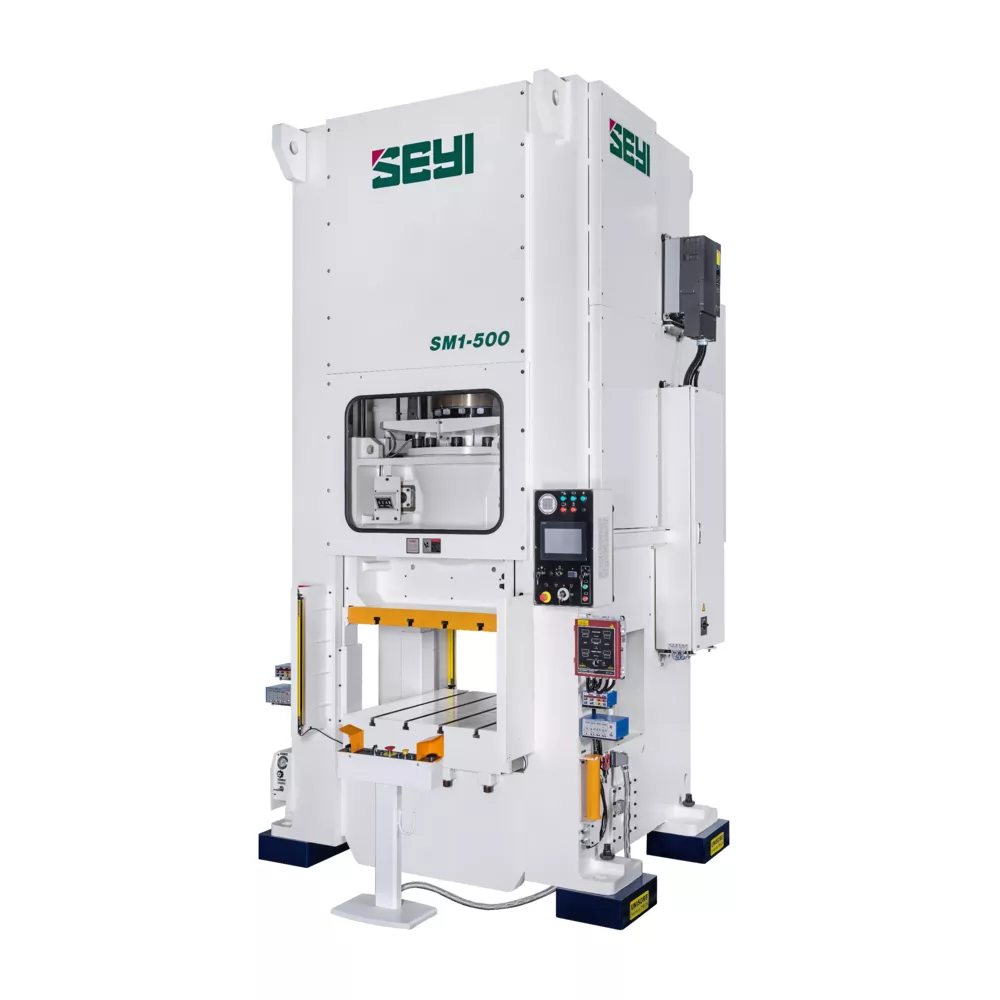

SM1 Series｜Heavy Stamping Link-Motion Press (SM1-300~800 Specifications)

This is generally applicable for blanking, punching, bending and forming process on small size parts produced from progressive die pressing, or single work steel plates of more than 6mm in thickness for heavy duty, which can connect with progressive die and also single punch.

Model		SM1-330		SM1-550		SM1-715	SM1-880
Type		S	H	S	H	S	S
Capacity	U.S.Ton	330		550		715	880
Stroke Length	in	9.84	4.72	11.81	5.91	11.81	300
Stroke per Minute	SPM	20~50	40~70	20~40	30~55	20~35	15~30
Tonnage Rating Point	in	0.51	0.26	0.51	0.26	0.51	0.51
Die Height	in	23.62	15.75	25.59	15.75	27.56	29.53
Slide Adjustment	in	5.91		5.91		5.91	5.91
Slide Area(LRxFB)	in x in	39.37 x 35.43		47.24 x 43.3		51.18 x 47.24	59.05 x 51.18
Bolster Area(LRxFB)	in x in	39.37 x 39.37		47.24 x 47.24		51.18 x 51.18	59.05 x 59.05
Bolster Thickness	mm	7.09		9.84		9.84	9.84
Bolster Height(w/ Mounts)	in	41.73		41.73		43.31	47.24
Max. Upper Die Weight	LBS	1100		2200		3300	4400
Main Motor	HP×P	50 x 4		60 x 4		75 x 4	100 x 4
Slide Adjustment Motor	HP×P	2 x 4		2 x 4		3 x 6	3 x 6
Window Opening(FBxUD)	in x in	23.62 x 17.17	23.62 x 11.81	27.56 x 21.65	27.56 x 15.74	31.50 x 23.62	117.32 x 75.20
Press Height	in	181.10	169.29	188.98	173.23	200.79	236.22
Fundation Bolts Postion	in x in	78.81 x 49.21		86.61 x 52.95		98.42 x 64.96	117.32 x 75.20
Required Floor Space	in x in	93.30 x 104.33		101.18 x 15.16		112.99 x 133.07	131.89 x 145.28
Required Air Pressure	PSI	71

※ This specification is subject to change without notice.

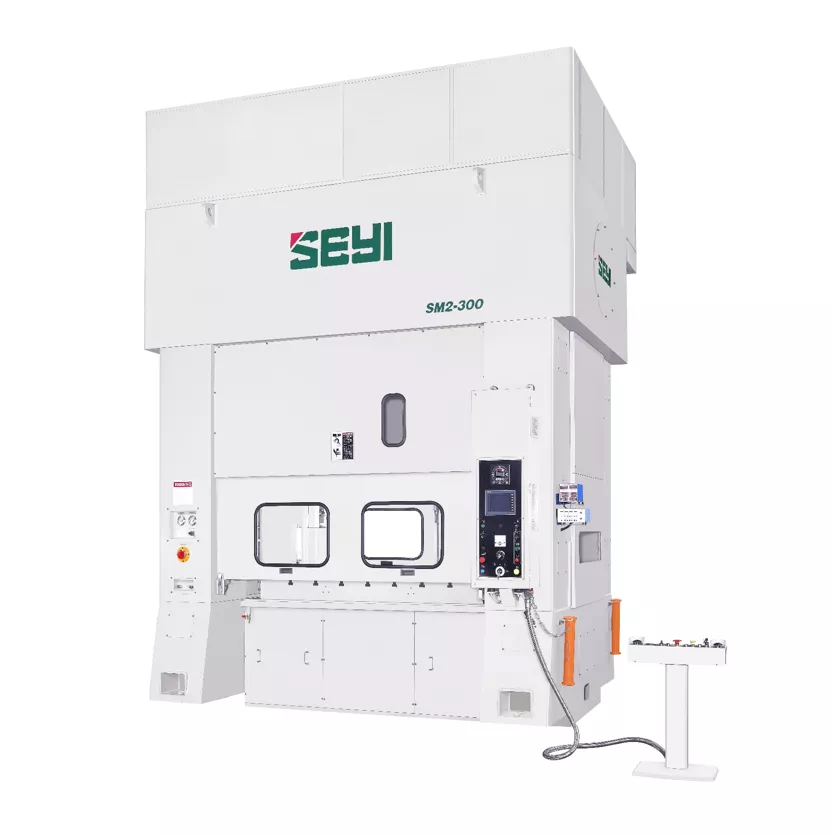

SM2 Series｜Progressive Stamping Link-Motion Press (SM2-200~600 Specifications)

This is generally applicable for blanking, punching, bending and forming process on small size but large quantity of parts produced from progressive die pressing, which can connect with progressive die or added with transfer system.

Model			SM2-220	SM2-330	SM2-440	SM2-660
Tonnage Capacity		U.S.Ton	220	330	440	660
Stroke Length		in	7.87	7.87	7.87	9.84
Stroke per Minute		SPM	50~120	40~100	30~80	30~70
Tonnage Rating Point		in	0.26	0.26	0.26	0.39
Die Height		in	17.72	21.65	25.59	29.53
Slide Adjustment		in	3.94	3.94	3.94	5.91
Slide Area(LRxFB)	1	in	59.05 x 35.43	70.87 x 39.37	82.68 x 43.31	94.49 x 49.21
	2		70.86 x 35.43	82.68 x 39.37	94.49 x 43.31	106.3 x 49.21
	3		82.67 x 35.43	94.49 x 39.37	106.3 x 43.31	118.11 x 49.21
Bolster Area(LRxFB)	1	in	59.05 x 39.37	70.87 x 43.31	70.87 x 47.24	94.49 x 55.12
	2		70.86 x 39.37	82.68 x 43.31	82.68 x 47.24	106.3x 55.12
	3		82.67 x 39.37	94.49 x 43.31	106.3 x 47.24	118.11 x 55.12
Bolster Thickness		in	7.09	7.09	9.84	9.84
Bolster Height(w/ Mounts)		in	39.37	45.28	49.27	33.46 (w/ Foundation)
Max. Upper Die Weight		LBS	2200	3300	6600	6600
Main Motor		HP×P	40×4	50×4	60×4	100×4
Window Opening (FBxUD)		in	27.55 x 9.84	31.5 x 9.84	35.43 x 9.84	41.34 x 9.84
Press Height		in	173.62	196.85	216.54	251.97 (from FL)
Required Air Pressure		PSI	71.11

※ This specification is subject to change without notice.

Mechanical Press FAQ's

Q: What are the key advantages of using SEYI's direct-drive servo mechanical presses?

A: SEYI’s servo technology completely eliminates the traditional flywheel and clutch, offering full control over slide motion. Benefits include programmable slide profiles, extended die life, reduced reverse tonnage, and massive energy savings. Unlike traditional presses, they offer specialized movements like Hold Motion (for hot stamping), Vibration Motion, and Free Motion (coining).

Q: Can SEYI mechanical presses be used for progressive die and transfer applications?

A: Yes, SEYI’s mechanical press series (such as the SAG Series and SLG Series) are engineered for seamless automation, progressive die stamping, and transfer operations. They feature wide-spaced connecting rods and tie-rod frames that deliver superior rigidity, ensuring the stability required for complex geometries and multi-station forming.

Q: How do I prevent die damage in the event of a tonnage overload?

A: All SEYI mechanical presses are equipped with either advanced hydraulic or electric overload protection systems. In the event of an overload, the system instantaneously releases pressure to stop the press, protecting both your tooling and the machine’s structural integrity. It is recommended to reverse the press into “inch” mode and return the slide to Top Dead Center (TDC) to reset.

Q: What types of materials and industries are best suited for these presses?

A: SEYI presses are heavily utilized in the automotive, aerospace, 3C (Computer, Communication, Consumer electronics), and appliance industries. They are highly capable of processing advanced, difficult-to-form materials like high-strength steel, magnesium alloys, and titanium, while effectively preventing springback issues.

Q: What automation and control features come standard with SEYI presses?

A: Most SEYI mechanical presses come standard with robust automation packages, including the WPC clutch/brake controller and Smartpack 2 press automation. These systems integrate hundreds of input die protection sensors, programmable cams, and tonnage monitors, while meeting global OSHA and CSA safety regulations.

Mechanical Presses

About SEYI Mechanical Presses

Key Features of SEYI Mechanical Presses

Benefits of Choosing SEYI Mechanical Presses

Mechanical Press Specifications

SAG Series | Straight Side Crank Press (SAG2-300~1200 / SAG4-400~1200 Specifications)

SE Series｜Straight Side Eccentric Gear Press (SE2-400~1200 / SE4-400~2400 Specifications)

SLG Series｜Straight Side Crank Link-Motion Press (SLG2-300~1200 / SLG4-400~1200 Specifications)

SEL Series｜Straight Side Eccentric Gear Link-Motion Press (SEL2-400~1200 / SEL4-400~2400 Specifications)

SNS Series｜Solid Frame Crank Press (SNS1-80~300 / SNS2-160~500 Specifications)

SLS Series｜Solid Frame Link-Motion Press (SLS1-80~300 / SLS2-160~500 Specifications)

SN Series｜C Frame Crank Press (SN1-25~250 / SN2-110~300 Specifications)

SM1 Series｜Heavy Stamping Link-Motion Press (SM1-300~800 Specifications)

SM2 Series｜Progressive Stamping Link-Motion Press (SM2-200~600 Specifications)

Mechanical Press FAQ's

Q: What are the key advantages of using SEYI's direct-drive servo mechanical presses?

Q: Can SEYI mechanical presses be used for progressive die and transfer applications?

Q: How do I prevent die damage in the event of a tonnage overload?

Q: What types of materials and industries are best suited for these presses?

Q: What automation and control features come standard with SEYI presses?

COMPANY

RESOURCES

Contact
