TX Series from HSG Laser offers versatile laser cutting machines engineered for superior precision, efficiency, and automation in tube processing across industries.

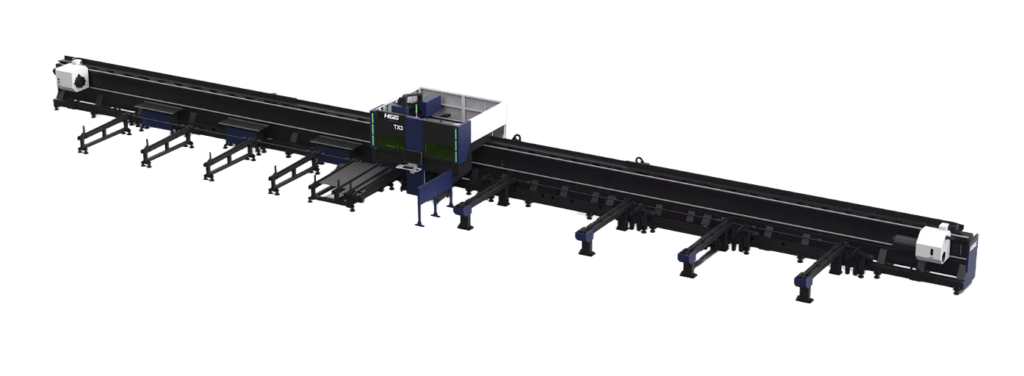

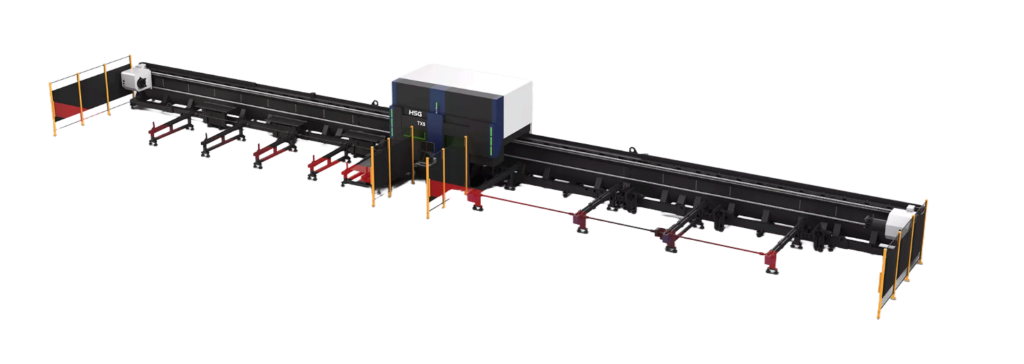

The TX Series laser cutting machines by HSG Laser revolutionize tube processing with unmatched speed, accuracy, and automation. Ideal for industries requiring intricate cuts and fast throughput, these machines handle round, square, and special-shaped tubes with ease. Their advanced design meets growing demand for high-quality tube fabrication solutions.

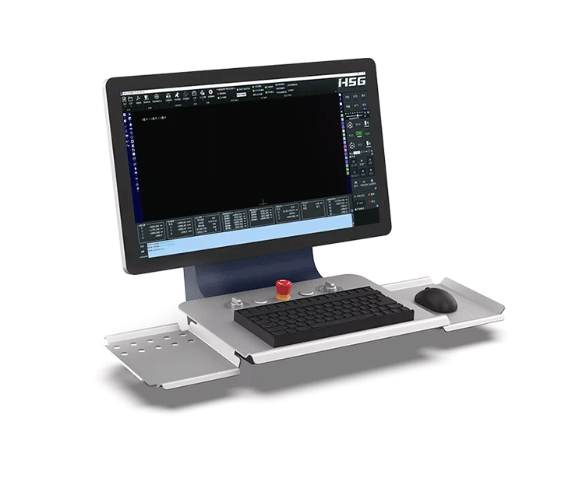

TX Series machines feature auto-loading/unloading, 3D cutting capabilities, and intelligent software for complex geometries. Designed for tubes up to 6.5 meters, they support high-speed rotary cutting, multi-profile recognition, and seamless material switching—delivering optimal efficiency for manufacturing, automotive, and metal fabrication industries.
Choosing the TX Series means increased productivity, reduced labor, and precision tube cutting. Their automation and smart systems boost workflow, making them ideal for businesses seeking consistent, high-output performance.
Specification | Metric | Imperial |
Laser Power | 6kW – 20kW | 6000W – 20000W |
Tube Processing Range | TX12036 Round tube: 50mm – 500mm Square tube: 50mm x 50mm – 350mm x 350mm Diagonal≤500mm TX12050 Round tube: 40mm- 360mm Square tube: 40mm x 40mm – 250mm x 250mm Diagonal≤360mm | TX12036 Round tube: 1.97in – 19.69in Square tube: 1.97in x 1.97in – 13.78in x 13.78in Diagonal≤19.69in TX12050 Round tube: 1.57in – 14.17in Square tube: 1.57in x 1.57in – 9.84in x 9.84in Diagonal≤14.17in |
Range of Incoming Materials for Tube | 2000mm – 12000mm (TX12036) 2500mm – 12000mm (TX12050) | 78.74in – 472.44in (TX12036) 98.43in – 472.44in (TX12050) |
Positioning Precision of X/Y Axis | ±0.05mm/m | ±0.00059 in/ft |
Repetitive Positioning Precision of X/Y Axis | ±0.05mm | ±0.0020 in |
Speed of Chuck | 60 RPM (TX12036) 40 RMP (TX12050) | |
Max Linkage Speed | 60m/min | 196.85 ft/min |
Max Linkage Acceleration | 0.6 G (TX12036) 0.3 G (TX12050) | |
Max Single Tube Weight | About 1200kg (TX12036) About 1500kg (TX12050) | About 2645lb (TX12036) About 3306lb (TX12050) |
Bevel Option | Yes, all bevel cutting pipes should be above 50mm, thickness above3mm | |
Bevel Angle | ±45° | |
Core Attributes | 3+1 Twin-Chuck Tube Laser Cutter: Optimized layout with dual chucks plus auxiliary support for enhanced control Heavy-Duty Tube Handling: Multi-point support system ensures stability and precision during the cutting process | |
A: TX Series machines can cut round, square, rectangular, and special-shaped tubes with high precision.
A: The TX Series offers automatic loading and unloading, automatic centering, and intelligent clamping systems to streamline operations.
A: Yes, select TX models support 3D bevel cutting, allowing for complex angles and improved joint quality.
A: Industries like automotive, fitness equipment, metal furniture, and structural engineering benefit from its versatile tube processing.
A: Depending on the model, the TX Series handles tube lengths up to 6.5 meters and diameters from 20mm to 220mm.
