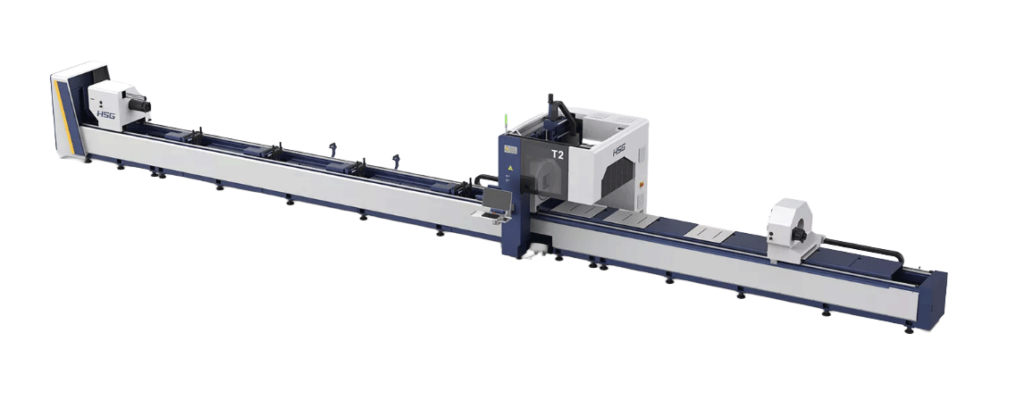

The T Series from HSG Laser offers high-speed tube cutting machines engineered for precision and efficiency, ideal for complex, automated tube processing in industrial applications.
Tube laser cutting machines like HSG Laser’s T Series have transformed metal fabrication by enabling high-speed, automated tube processing. They support industries such as construction, furniture, and automotive with improved accuracy and flexibility. These machines help streamline production and meet evolving market demands.

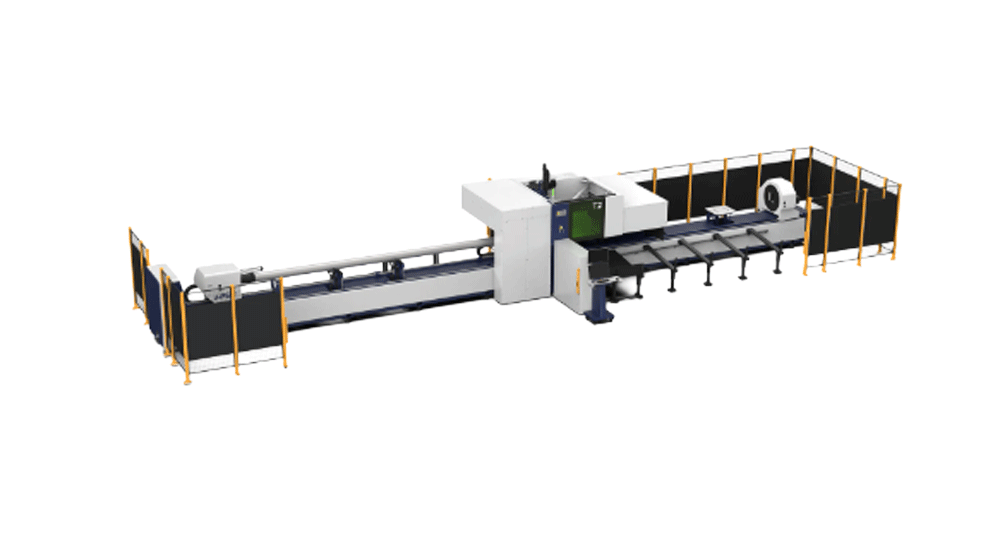

The T Series features full-automatic loading and unloading, auto centering, and intelligent clamping for fast and precise cutting. Compatible with round, square, rectangular, and special-shaped tubes, the T Series uses high-powered lasers and intelligent systems to boost efficiency, precision, and material utilization in industrial workflows.
Choosing the T Series ensures high-speed automation, reduced labor, and consistent quality. Ideal for scaling operations, it supports mass production needs while minimizing waste and maximizing performance.
Specification | Metric | Imperial |
Laser Power | 3kW – 6kW | 3000W – 6000W |
Tube Processing Range | T2 Round tube: 20mm – 240mm Square tube: 20mm x 20mm – 240mm x 240mm Diagonal≤330mm T3 Round tube: 20mm – 350mm Square tube: 20mm x 20mm – 350mm x 350mm Diagonal≤495mm | T2 Round tube: 0.79in – 9.45in Square tube: 0.79in x 0.79in – 9.45in x 9.45in Diagonal≤13in T3 Round tube: 0.79in – 13.78in Square tube: 0.79in x 0.79in – 13.78in x 13.78in Diagonal≤19.5in |
Range of Incoming Materials for Tube | 1000mm – 7000mm (T2) 1000mm – 9000mm (T3) | 39.37in – 275.59in (T2) 39.37in – 354.33in (T3) |
Positioning Precision of X/Y Axis | ±0.03mm/m (T2) ±0.05mm/m (T3) | ±0.00035 in/ft (T2) ±0.00059 in/ft (T3) |
Repetitive Positioning Precision of X/Y Axis | ±0.03mm | ±0.00118in |
Speed of Chuck | 100 RPM (T2) 80 RMP (T3) | |
Max Linkage Speed | 100 m/min (T2) 80 m/min(T3) | 328ft/min (T2) 262ft/min (T3) |
Max Linkage Acceleration |
0.8 G (T3) | |
Max Single Tube Weight | About 300kg (T2) About 600kg (T3) | About 661lb (T2) About 1323lb (T3) |
Bevel Option | Yes, all bevel cutting pipes should be above 50mm, thickness above3mm | |
Bevel Angle | ±45° | |

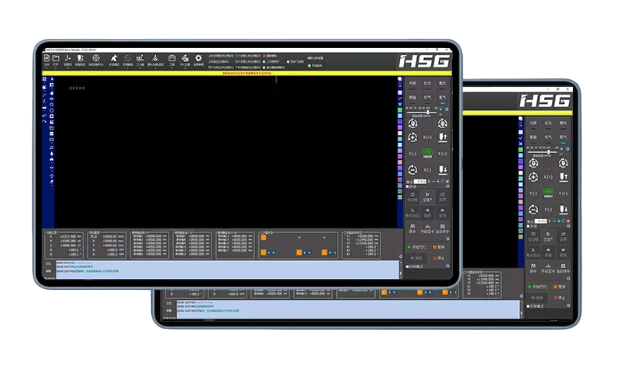

Core Attributes | Three-Chuck Tube Laser Cutter: Delivers precise control and strong clamping for long and complex tubes Independent Servo-Driven Support: Adaptive follow-up system ensures accuracy during high-speed cutting Smart Bus Control Platform: Offers seamless operation with intelligent automation features Fully Mobile Three-Chuck System: Flexible configuration allows for enhanced material handling and positioning | |
A: The T Series supports round, square, rectangular, L-shaped, U-shaped, and special-profile tubes for flexible applications.
A: It can process tubes up to 6 meters or 9 meters long, depending on configuration, ideal for industrial-scale projects.
A: Yes, it features fully automatic loading and unloading, which saves time, boosts safety, and reduces manual labor.
A: Commonly used in fitness equipment, furniture, automotive, and pipeline manufacturing due to its speed and precision.
A: The T Series supports various laser powers, typically from 1.5kW to 6kW, enabling both thin and thick tube cutting tasks.
