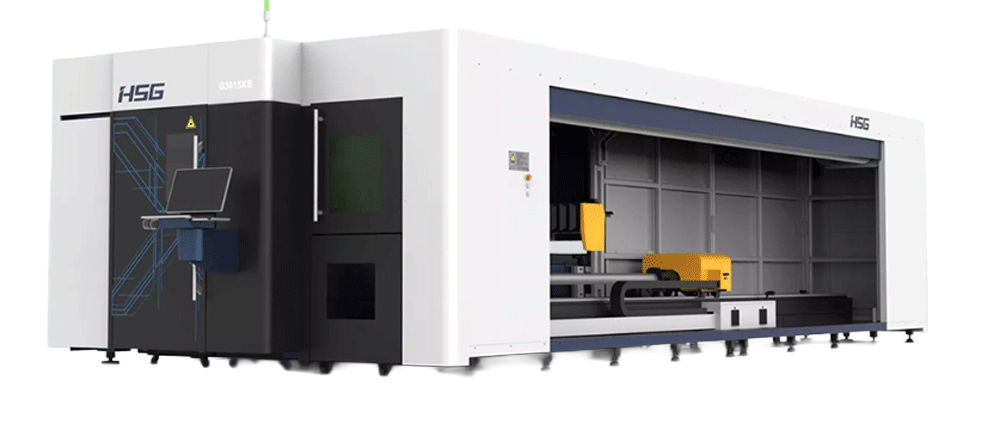

The GXE Series by HSG Laser delivers high-speed, double-platform laser cutting for both sheet and tube materials, offering enhanced precision and efficiency in compact industrial settings.
The GXE Series laser cutting machines from HSG are engineered for high-performance sheet and tube processing, crucial for modern fabrication shops. These machines combine compact design with high-speed cutting and automation, ensuring efficiency and productivity. Ideal for industries like metal fabrication and machinery manufacturing, the GXE Series sets a new standard in flexible, cost-effective laser cutting systems.
The GXE Series features a double-exchange platform for seamless loading and unloading, along with a high-speed linear motor system. It supports both sheet and tube cutting with precision and speed. Smart CNC control, automatic lubrication, and efficient nesting software enhance productivity, making the GXE Series a versatile solution for advanced laser cutting needs.
Choose the GXE Series for dual-function laser cutting that saves floor space, increases production speed, and reduces downtime. It’s an all-in-one solution that boosts efficiency and delivers consistent accuracy.
Specification | Metric | Imperial |
Laser Power | 3kW – 6kW | 3000W – 6000W |
Machining Area (Plate) | 3048mm x 1524mm | 120 in x 60 in |
Tube Processing Range | Round Pipe：20mm – 210mm Square Tube：20mm x 20mm – 150mm x 150mm Rectangle Tube：20mm x 20mm≤each side and Diagonal≤210mm L shape：20mm x 20mm≤each side≤140mm x 140mm | Round Pipe：0.79in x 0.79in Square Tube：0.79in x 0.79in – 5.91in x 5.91in Rectangle Tube：0.79in x 0.79in ≤each side and Diagonal≤8.27in L shape：0.79in x 0.79in≤each side≤5.51in x 5.51 in |
Range of Incoming Materials for Tube | 1000mm-6000mm | 39.37in – 236.22in |
Repetitive Positioning Precision of X/Y Axis | ±0.03mm | ±0.0012 in |
Max Linkage Speed | 60m/min | 196.85 ft/min |
Max Linkage Acceleration | 0.5G | |
Max Loading Weight (Plate) | About 800kg | About 1764lb |
Max Loading Weight (Tube) | About 100kg | About 220lb |
Core Attribute | Dual Pallet Exchange System: Features a two-table design for continuous cutting and improved workflow efficiency | |
A: The GXE Series cuts various metals, including carbon steel, stainless steel, aluminum, and copper, making it versatile for different applications.
A: Yes, it supports both flat sheet and round/square tube cutting, ideal for shops needing flexible manufacturing capabilities.
A: It allows for simultaneous cutting and loading/unloading, minimizing downtime and boosting overall throughput.
A: Yes, its compact footprint and integrated dual-function design make it perfect for maximizing space efficiency.
A: The system includes smart CNC controls, automatic lubrication, and efficient material handling to reduce manual input and increase consistency.
