Glorystar’s produces modular automation systems compatible with most machine models — designed for high-speed, demanding production requirements. Provides an integrated, easy to use system for efficient loading and unloading.

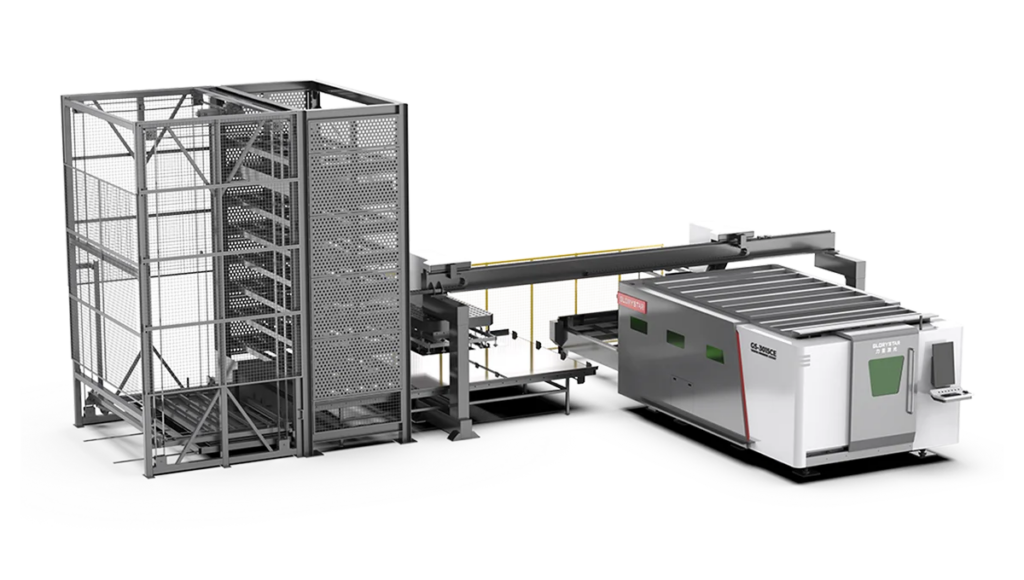

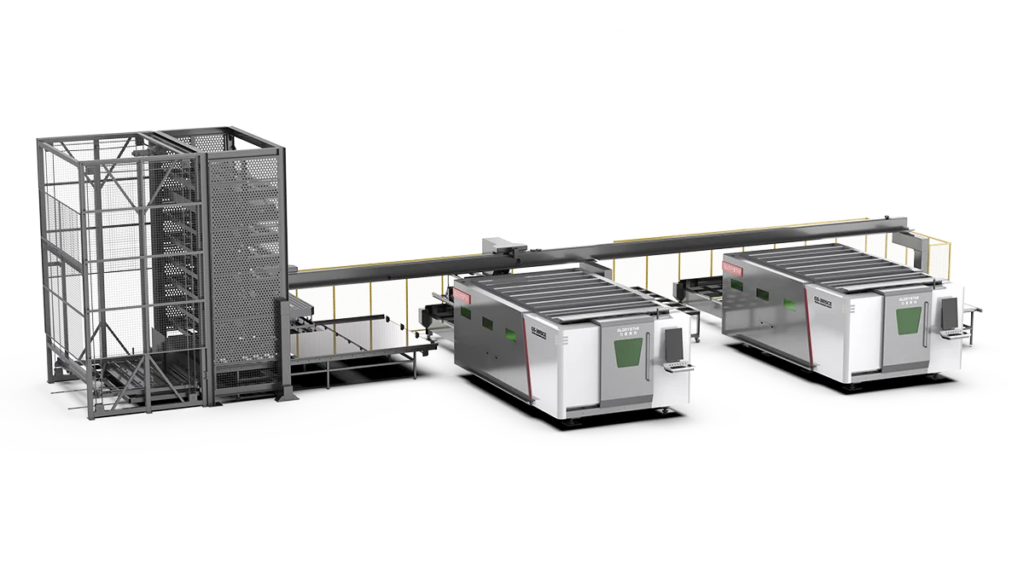

Integrated loading/unloading systems with a simple/centralized control unit. Glorystar systems are modular and can be configured with multiple raw material storage towers for lights-out/unmanned operations.
SCL3015-3-1 | SCL4020-3-1 | |
Plate Thickness | 1–6mm/ 0.04-0.24in | |
Max Size – Loading Plate | 3000x1500mm/ 5×10ft | 4000x2000mm/ 13×6.6ft |
Max Size – Unloading Plate | 1220x1250mm / 4×4.1ft | 1500x1500mm / 5x5ft |
Max Weight of Workpiece | 212kg / 468lbs | 376kg / 829lbs |
Max Horizontal Speed | 30 m/min / 98.5ft/min | 25m/min / 82ft/min |
Max Vertical Speed | 15m/min / 49.2ft/min | 8m/min / 26.3ft/min |
Max Load of Cart | 3000kg / 6614lbs | |
Max Speed of Cart | 12m/min / 39.4ft/min | |
Total Power of Motor | 3.5Kw | 5Kw |
Air Pressure | 0.6 MPa | |
A: Glorystar sheet laser machines are generally compatible with their modular automation systems. Glorystar builds these with highly configurable, modular architecture, you can interface their automation systems across a wide range of equipment. Please contact us if you have questions regarding a particular model.
A: These systems can handle high-load capacities and supports large sheet formats, with specific capacities based on the model version and matching fiber laser machine.
A: Yes. It is specifically engineered for high-speed loading/unloading, increasing productivity and reducing downtime for demanding sheet metal workflows.
A: Glorystar offers professional installation, training, and after-sales support. The automation systems are designed for easy integration with compact structure and modular setup.
