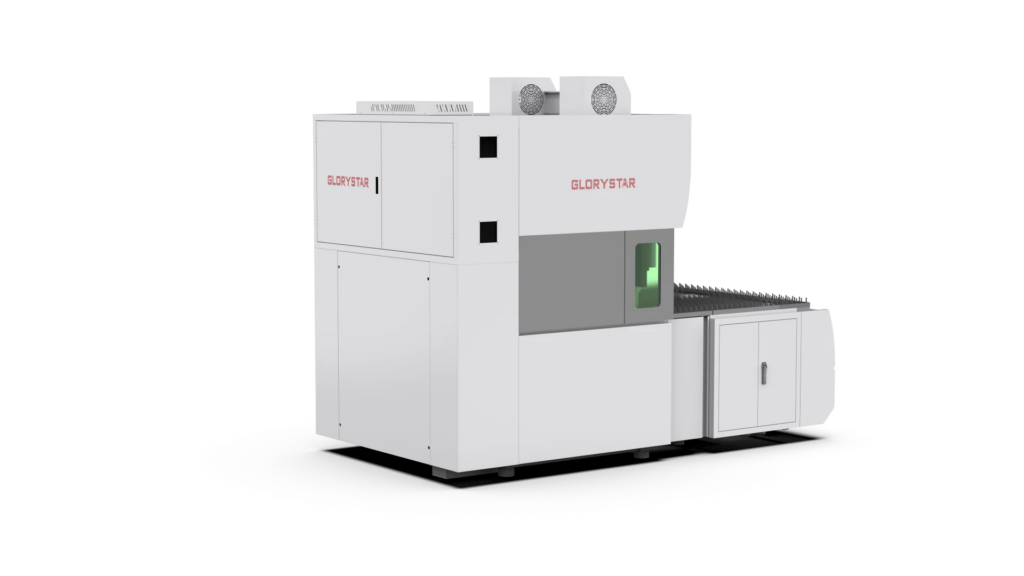

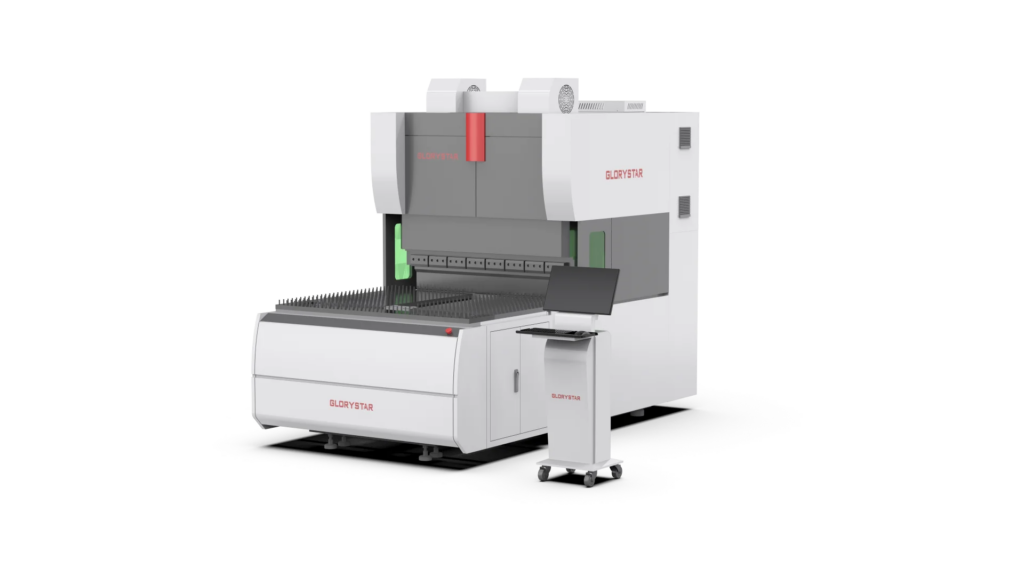

The GB-A series is a fully automatic bending center designed for high-volume sheet metal production. Equipped with GloryStar’s proprietary CNC system and high-precision servo drives, it provides fast and accurate automated bending operations. The system improves production efficiency while minimizing operator involvement and setup tim

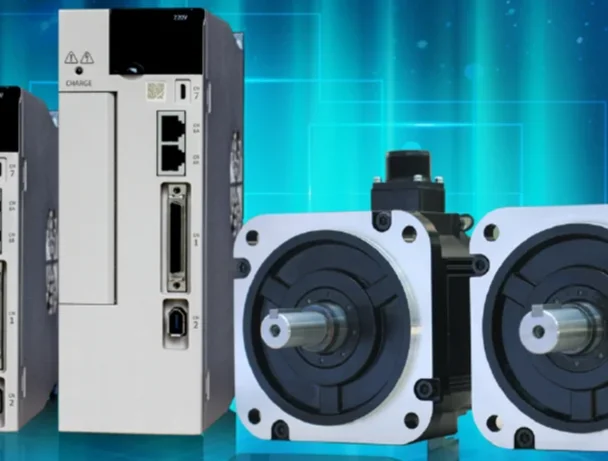

The GB-A Series Fully Automatic High-Speed Bending Center is a high-precision, high-efficiency sheet metal bending solution featuring an advanced and well-engineered structure. It incorporates a self-developed control system specifically designed for bending centers, high-precision gear reducers, ball screws, linear guide rails, and high-performance servo motors to enable fully automated bending operations.
GB-1200A | GB-1500A | GB-2000A | GB-2500A | |
Bending Length | 1200mm / 4ft | 1500mm / 5ft | 2000mm / 7ft | 2500mm / 8ft |
Bending Height | 4 sides 170mm 6.69in | 4 sides 170mm / 6.7in 2 sides 170mm(6.7in) / 2 sides 350mm(13.8in） 4 sides 350mm / 13.8in | ||
Max Bending Size | 1200*1200mm 4*4ft | 1500*1500mm 5*5ft | 2000*1500mm 7*5ft | 2500*1500mm 8*5ft |
Max Bending Thickness | 2mm / 0.08in | 3mm / 0.12in | ||
Max Thickness – Iron Plate | 1.5mm / 0.06in | 2mm / 0.08in | ||
Max Thickness – Stainless Steel | 0.8mm / 0.03in | 1.5mm / 0.06in | ||
Max Bending Speed | 0.2s/per bend | |||
A: The GB-A Series can bend a wide range of metals, including carbon steel, stainless steel, aluminum, and copper alloys.
A: Glorystar self developed CNC is integrated, easy to operate, and provides quick setup times for complex tasks/fully automated operation. Training and support are provided to ensure you are up and running, can troubleshoot any learning curves, and stay updated/running at peak production.

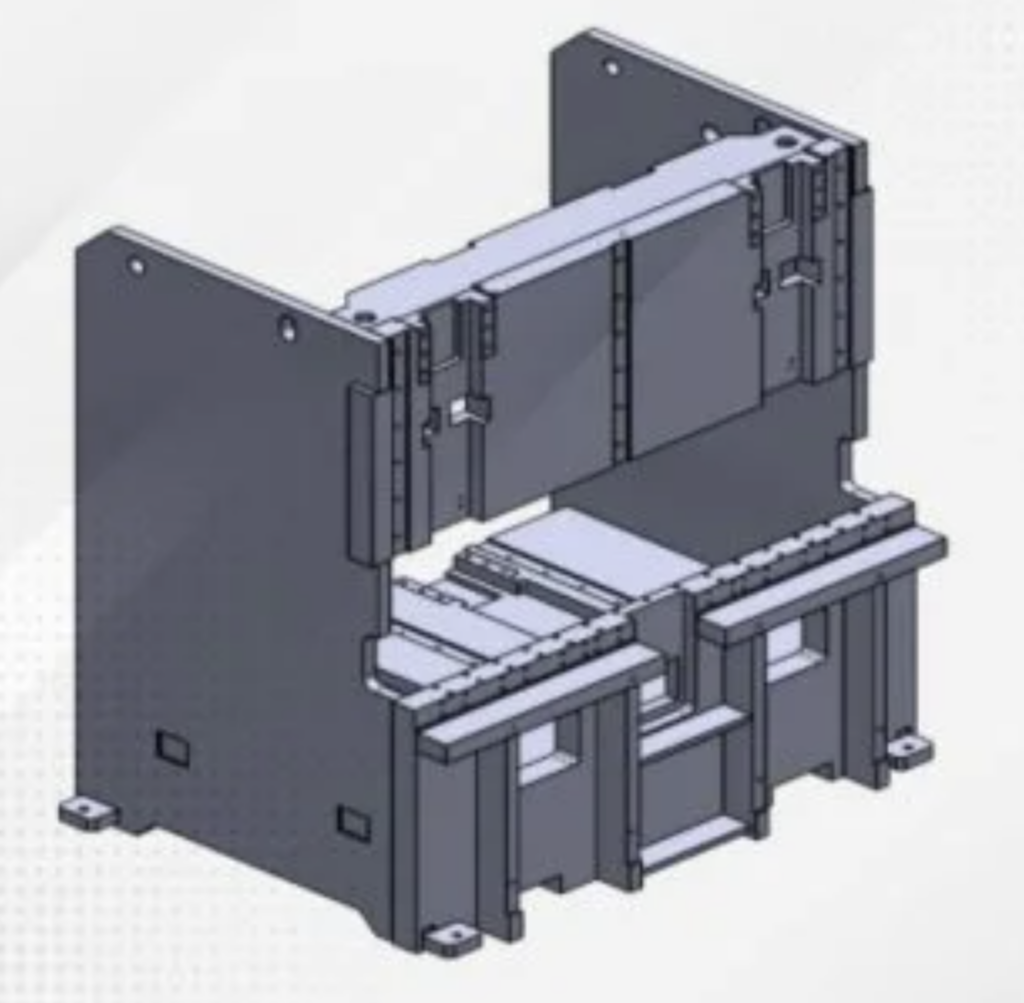

A: The GB-A Series achieves high bending accuracy via its rigid build quality, auto-deflection compensation, and linear scales with 0.005mm resolution. Over 20 years experience and 400 independent intellectual property rights. Glorystar benders are built with heavy annealed steal frames, extra rigidity for accuracy over time, and precision/quality components.
A: Absolutely. Its fast setup, tool-changing capabilities, and repeatability make it incredibly capable. However, this machine is designed for full automation/high production sheet metal applications. Please see the GB-Series hydraulic bending machines, ideal for small and large batch jobs. Feel free to reach out if you need one of our team members to provide pricing or compare models.
Glorystar backs every system with end‑to‑end support: pre‑sales application consulting and sample cutting, turnkey on‑site installation and operator training, 24/7 remote diagnostics, rapid-response field service from certified engineers, a global spare‑parts network, lifetime software updates, and optional process optimization and automation upgrades—everything you need to keep your machine running at peak productivity.
