ANCA’s ULTRA Range redefines high-precision grinding for tools as small as 0.1mm, combining innovative technology with unparalleled accuracy to deliver superior cutting tools for various industries.

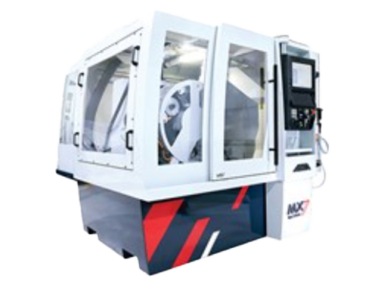

The ULTRA Range by ANCA is a groundbreaking innovation in CNC grinding, designed for industries requiring extreme precision in tool manufacturing. With cutting-edge technology and enhanced mechanical designs, it ensures exceptional accuracy and reliability. The ULTRA Range sets new industry standards in high-quality tool production.
The ULTRA Range features nanometre-level control, offering 1nm resolution on linear axes and 1µdeg on rotary axes for perfect surface finishes. With advanced software like ToolRoom RN34, it handles complex tool designs with ease. The reinforced mechanical build enhances rigidity and stability, ensuring high accuracy and consistent results for diverse applications.
Choosing the ULTRA Range ensures unmatched precision, consistent tool quality, and exceptional surface finishes. Designed to meet the rigorous demands of industries such as aerospace, medical, and automotive, the ULTRA Range delivers reliability and performance, helping manufacturers achieve batch consistency and enhanced productivity.
| FX5 ULTRA Specifications | |
|---|---|
| Machine Structure | Single Column |
| Spindle Power | 12 kW (16 HP) peak, 10,000 RPM, HSK40F Taper |
| Wheel Packs | 6 x Ø203mm (8”) max |
| Tool Diameter Range | Ø0.1mm to Ø16mm |
| Automation Options | AR300 (max capacity 340 x Ø3mm tools) |
| Machine Dimensions (W x D x H) | 1930 mm x 1800 mm x 1810 mm (76” x 70” x 71”) |
| Machine Weight | 4500 kg (9920 lb) |
| CNC System | ANCA AMC5 G2 High Performance CNC, High Speed SSD, Ethercat, Intel processor, Windows 10 |
| Software | ToolRoom RN34 |

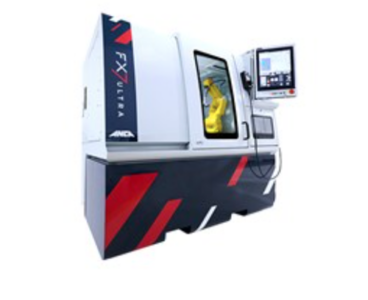

| FX7 ULTRA Specifications | |
|---|---|
| Machine Structure | Single Column |
| Spindle Power | 19 kW (25.4 HP) peak, 10,000 RPM, HSK40F Taper |
| Wheel Packs | 6 x Ø203mm (8”) max |
| Tool Diameter Range | Ø0.1mm to Ø20mm |
| Automation Options | Fanuc (max capacity 880 x Ø3mm tools) |
| Machine Dimensions (W x D x H) | 1930 mm x 1800 mm x 1810 mm (76” x 70” x 71”) |
| Machine Weight | 4500 kg (9920 lb) |
| CNC System | ANCA AMC5 G2 High Performance CNC, High Speed SSD, Ethercat, Intel processor, Windows 10 |
| Software | ToolRoom RN34 |
| MicroX ULTRA Specifications | |
|---|---|
| Machine Structure | Rigid Single Column |
| Spindle Power | Dual Spindle Configuration (specific power not specified) |
| Wheel Packs | 2 wheel packs (one each mounted on both ends of the grinding spindle) |
| Tool Diameter Range | Down to D0.03mm |
| CNC System | ANCA AMC5 G2 High Performance CNC, High Speed SSD, Ethercat, Intel Processor, Windows 10 |
| Software | ToolRoom RN35 |
| MX7 ULTRA Specifications | |
|---|---|
| Machine Structure | Bi-Symmetrical Gantry |
| Spindle Power | 38 kW (51 HP) peak, 10,000 RPM, HSK50F Taper |
| Wheel Packs | 6 wheel packs, Ø203 mm (8”) maximum diameter |
| Tool Diameter Range | Ø0.1 mm to Ø25 mm |
| Tool Length (Maximum) | 320 mm (12.6”) |
| Automation Options | RoboMate Loader with up to 280 tools capacity |
| In-Process Measuring | LaserPlus and iView for precise measurement and compensation |
| Balancing System | Automatic wheel balancing for vibration-free grinding |
| Coolant System | High-pressure coolant system with filtration up to 2 microns |
| Machine Dimensions (W x D x H) | Width: 2246 mm (88”), Depth: 2279 mm (90”), Height: 2116 mm (83”) |
| Machine Weight | 6,500 kg (14,330 lbs) |
| CNC System | ANCA AMC5 G2 High-Performance CNC, EtherCAT, Intel Processor, Windows 10 |
| Software | ToolRoom RN34 for advanced tool design and manufacturing |
| Resolution | 1 nm on linear axes, 1 µdeg on rotary axes |
| Power Requirements | 3-phase, 400V, 50/60 Hz, 60 kVA |
| Noise Levels | 70 dB during standard operation |
| Additional Features |
|
A: The ULTRA Range supports aerospace, medical, automotive, electronics, and telecommunications with precision grinding for high-quality tools.
A: It can grind tools as small as 0.1mm in diameter with exceptional precision.
A: It offers ultra-fine resolution, enhancing surface finish and tool accuracy without increasing cycle times.
A: Yes, it features ToolRoom RN34 software for creating complex, high-performance cutting tools.
A: The ULTRA Range uses in-process measurement and runout compensation to maintain consistent quality across large batches.
