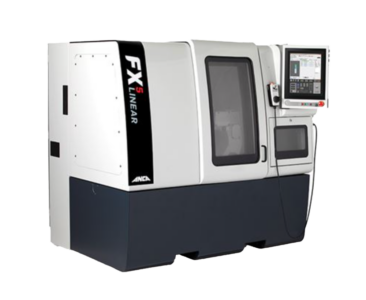

ANCA FX Linear Range features advanced linear motor technology, offering precision, efficiency, and reliability for diverse CNC tool grinding applications in industries like aerospace and automotive.
The ANCA FX Linear Range offers cutting-edge CNC grinding solutions, featuring linear motor technology for precise and efficient tool manufacturing. This range caters to diverse applications with innovative features, ensuring unmatched reliability and quality in the tool grinding industry.
The FX Linear Range includes advanced linear motor technology for superior accuracy, a robust design for long-term durability, and an intuitive user interface. With customizable configurations and high-speed spindles, these machines are ideal for manufacturing a variety of tools with consistent precision.
The FX Linear Range provides precision grinding, reduced maintenance with linear motors, and adaptability for complex tool designs. Its efficiency minimizes production downtime, making it an essential investment for manufacturers demanding high-quality tool production.
| Specification | Unit | Details |
|---|---|---|
| Model | FX3 Linear | |
| Technology | Linear Motor Technology | |
| Tool Diameter Range | mm | 1 – 12 |
| Max Tool Length | mm | 200 |
| Spindle Speed | RPM | 10,000 |
| Primary Application | Entry-level CNC Tool Grinding | |
| Automation Compatibility | Yes | |
| Key Feature | Affordable Precision |
| Specification | Unit | Details |
|---|---|---|
| Model | FX5 Linear | |
| Technology | Advanced Linear Motors | |
| Tool Diameter Range | mm | 1 – 20 |
| Max Tool Length | mm | 250 |
| Spindle Speed | RPM | 10,000 – 12,000 |
| Primary Application | High-precision Tool Grinding | |
| Automation Compatibility | Yes | |
| Key Feature | Flexible Configuration |
| Specification | Unit | Details |
|---|---|---|
| Model | FX5E Linear | |
| Machine Structure | Single Column | |
| Spindle Power | kW (HP) | 9 kW (12 HP) peak |
| Wheel Packs | 2-wheel packs with automatic change | |
| Tool (Shank) Diameter | mm | Productive up to Ø8 mm |
| Max Tool Length | mm | 150 |
| Loader Type | AR300 loader (optional) | |
| Automation Compatibility | Yes | |
| Key Feature | Economical choice for small to medium cylindrical tool grinding |
| Specification | Unit | Details |
|---|---|---|
| Model | FX7 Linear | |
| Machine Structure | Single Column | |
| Spindle Power | kW (HP) | 19 kW (25.5 HP) peak |
| Wheel Packs | 2 x Ø203 mm (8”) max; with Robot wheel changer: 6 x Ø203 mm (8″) max | |
| Tool (Shank) Diameter | mm | Productive up to Ø12 mm |
| Max Tool Length | mm | 200 |
| Loader Type | Fanuc loader (optional) loads tools & wheels | |
| Automation Compatibility | Yes | |
| Key Feature | Premium tool grinder offering increased flexibility and automation capacity |
A: It is suitable for manufacturing drills, endmills, and specialty tools.
A: Advanced linear motor technology enhances grinding accuracy.
A: Yes, configurations can be adjusted to meet specific tool production needs.
A: Industries like aerospace, automotive, and medical device manufacturing use these machines.
A: It reduces setup times and delivers consistent precision, improving workflow efficiency.
