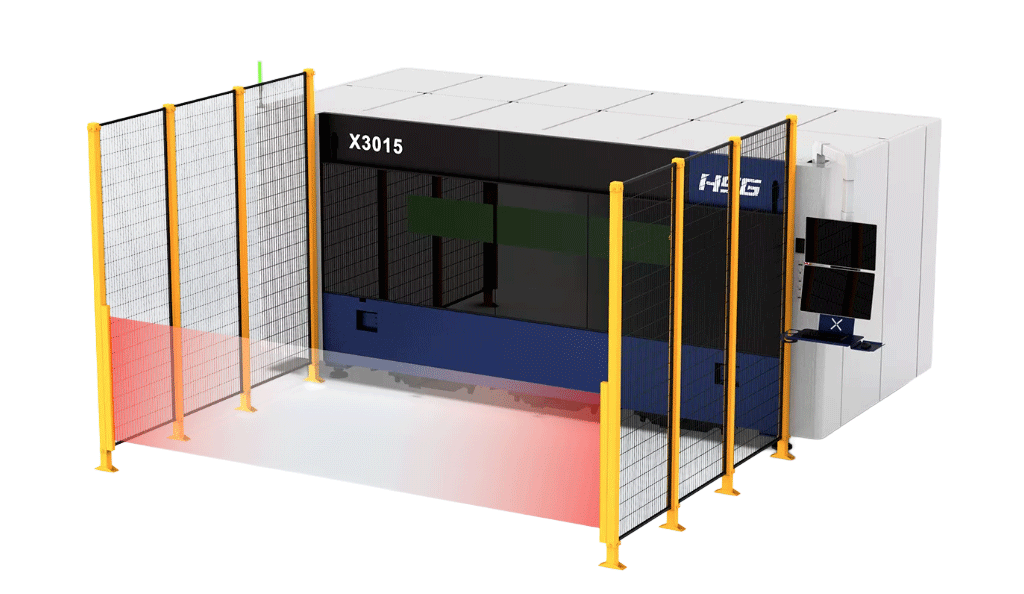

The X Series from HSG Laser delivers cutting-edge performance for medium-thick sheet metal processing, combining precision, stability, and intelligent automation in a compact build.
The X Series laser cutting machine from HSG is engineered for precision cutting of medium-thick plates, making it a staple in modern fabrication. Known for stability and speed, it elevates productivity and lowers operational costs. Designed with advanced automation, it meets the evolving needs of metal processing industries.
The X Series features a cast aluminum beam, hollow plate-welded bed, and Z-axis anti-collision system. With optional bevel cutting and auto nozzle changer, it supports high-speed, high-precision operations for medium-thick metal plates. The X Series excels in efficient, stable industrial performance.
The X Series offers reliable performance, low maintenance, and enhanced safety. Ideal for manufacturers seeking precision and cost-efficiency, it ensures consistent results and production scalability.
Specification | Metric | Imperial |
Laser Power | 1.5kW – 12kW | 1500W – 12000W |
Machining Area | 3048mm x 1524mm (1.5-6kW) 3000mm x 1500mm (12kW) | 120in x 60in (1.5 – 6kW) 118.11in x 59.06in (12kW) |
Positioning Precision of X/Y Axis | ±0.03mm/m | ±0.00036 in/ft. |
Repetitive Positioning Precision of X/Y Axis | ±0.03mm | ±0.00118 inches |
Max Linkage Speed | 120m/min | 394 ft/min |
Max Linkage Acceleration | 1.5G | |
Max Loading Weight of Platform(s) | 200kg | 441lb |

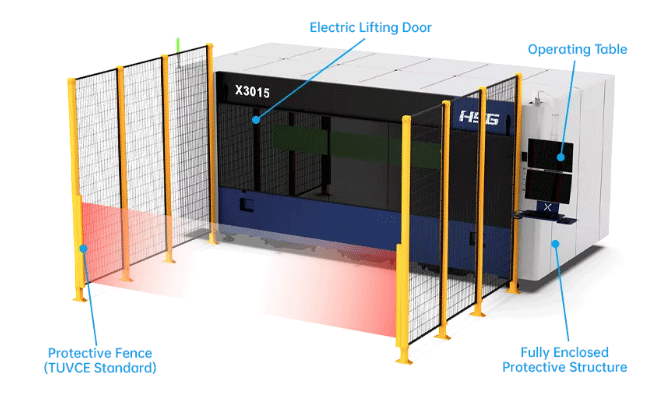

Core Attributes | Precision Laser Cutting Solution: Designed for detailed, high-accuracy applications Enclosed Build with Sliding Platform: Sealed frame and single push-pull table for safety and space efficiency Autofocus Cutting Head: Automatically adjusts focal length for clean, consistent cuts across materials Versatile Bus Control System: Supports a range of intelligent functions for streamlined operation and control | |
A: The X Series is designed for medium-thick sheet metal such as carbon steel, stainless steel, aluminum, and brass with high precision.
A: Yes, bevel cutting is available as an option, allowing users to cut angled edges for welding and structural applications.
A: It features a lightweight cast aluminum beam for enhanced speed, reduced inertia, and improved cutting accuracy over time.
A: Yes, it includes options like an automatic nozzle changer and intelligent software for optimized operation and reduced downtime.
A: The X Series has a Z-axis anti-collision system and full safety enclosures to protect the machine and operators during cutting operations.
