Introducing the GH Series by HSG Laser—an ultra-efficient laser cutting machine built for high-speed precision, durability, and versatility in demanding industrial environments.

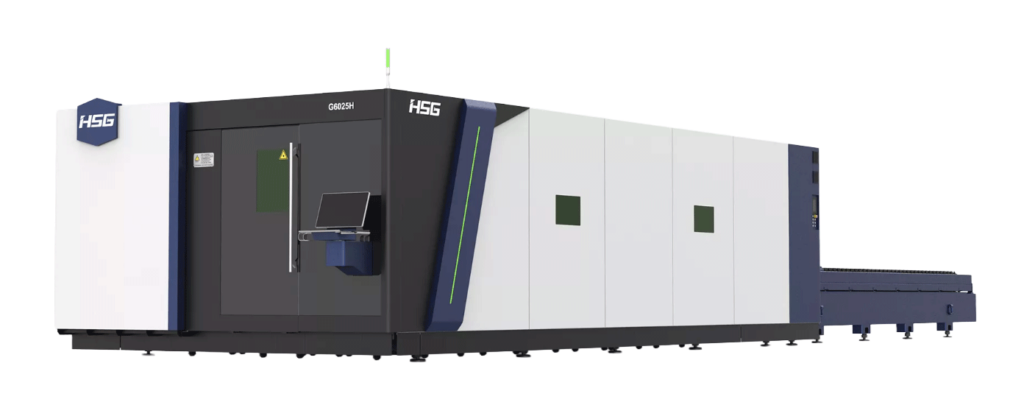

The GH Series by HSG Laser is a premier line of fiber laser cutting machines, engineered for high-speed performance and exceptional cutting quality. Ideal for the sheet metal industry, GH machines support ultra-large formats and boast dual-exchange platforms for uninterrupted workflow. This series stands at the forefront of metal processing innovation.

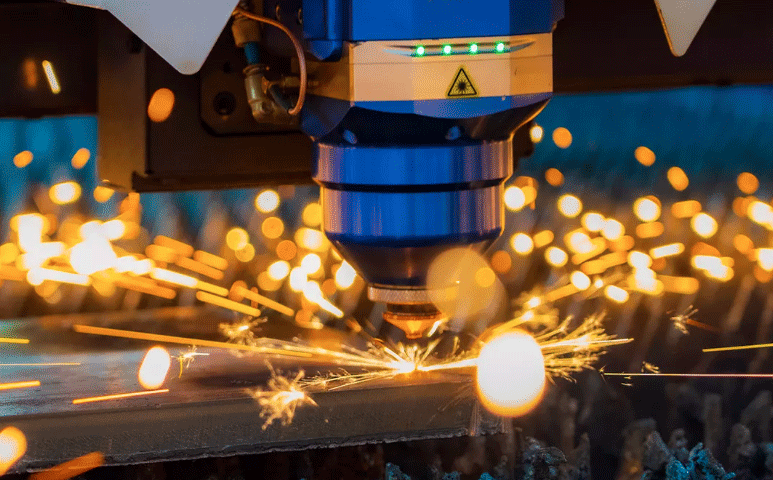

The GH Series offers a high-speed dual-exchange platform, intelligent zoning ventilation, and support for extra-large sheet sizes. Its aerospace-grade gantry and robust bed deliver maximum stability and cutting precision, even at ultra-high speeds. Engineered for industrial-scale productivity.
Choosing the GH Series ensures faster cutting, higher throughput, and increased energy efficiency. With automation-ready features and unmatched cutting precision, it’s perfect for scaling operations and reducing downtime.
Specification | Metric | Imperial |
Laser Power | 3kW – 30kW | 3000W – 30000W |
Machining Area | 3048mm x 1524mm (G3015H) 4064mm x 2040mm (G4020H) 6096mm x 2540mm (G6020H) 12500mm x 2540mm (G12025H) | 120in x 60in (G3015H) 160in x 80.3in (G4020H) 240in x 100in (G6020H) 492.1in x 100in (G12025H) |
Positioning Precision of X/Y Axis | ±0.03mm/m | ±0.00036 in/ft. |
Repetitive Positioning Precision of X/Y Axis | ±0.03mm | ±0.001 inches |
Max Linkage Speed | 200m/min | 656 ft/min |
Max Linkage Acceleration | 4G (G3015H) 2.8G (All other models) | |
Max Loading Weight of Platform(s) Varies by model and wattage; consult Bramac for specific technical data | 885kg – 1400kg (G3015H) 1570kg – 3800kg (G4020H) 6300kg – 9400kg (G6025H) 9500kg – 14500kg (G12025H) | 1951lb – 3086lb (G3015H) 3461lb – 8378lb (G4020H) 13889lb – 20725lb (G6025H) 20944lb – 31967lb (G12025H) |
Bevel Option | Yes, all bevel cutting pipes should be above 50mm, thickness above3mm | |
Bevel Angle | ±45° | |
Core Attributes | Advanced Fiber Laser Cutting System: Built for high-speed, high-precision performance Smart Bus Control: Ensures responsive, stable, and streamlined machine operation Thermal Protection Design: Engineered to resist heat without compromising material or machine integrity Reinforced Matrix Bed Structure: Enhanced rigidity for superior stability and long-term cutting accuracy | |
A: The GH Series efficiently cuts carbon steel, stainless steel, aluminum, brass, and other common industrial metals.
A: HSG offers GH Series machines in configurations ranging from 6kW to 20kW, suitable for varied production needs.
A: Yes, the GH Series supports robotic arms, loading/unloading systems, and smart factory integrations.
A: The GH Series supports extra-large formats, including custom oversized dimensions for large-scale metal fabrication.
A: It allows simultaneous loading/unloading and cutting, significantly reducing machine idle time and improving production efficiency.
