GF Series from HSG Laser delivers ultra-high precision and speed in fiber laser cutting, built for demanding sheet metal applications in industries like aerospace, automotive, and electronics.
The GF Series laser cutting machines from HSG Laser represent a premier category in high-end sheet metal processing. Engineered for ultra-precision and ultra-speed, these machines set a new standard for fiber laser cutting across aerospace, automotive, and electronics sectors.
GF Series machines deliver ±0.01 mm positioning accuracy, 200m/min rapid speed, and ±0.005° rotary axis accuracy. Equipped with HSG’s 4th-generation aluminum beam and intelligent CNC systems, the series supports up to 30kW laser power and full enclosure for safety and efficiency.
Choose GF Series for unmatched accuracy, intelligent automation, and high-speed stability. These machines optimize productivity, reduce waste, and ensure consistent, premium-quality cuts for advanced manufacturing needs.
Specification | Metric | Imperial |
Laser Power | 12kW – 60kW | 12000W – 60000W |

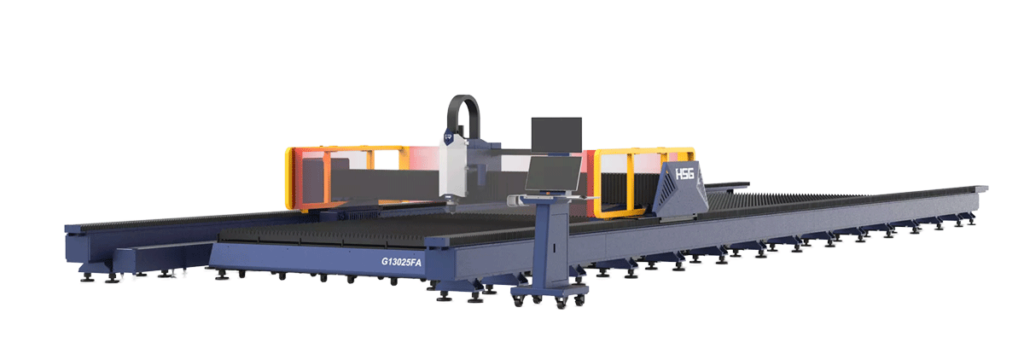

Machining Area | 12100mm x 3500mm (G12025FA) 12100mm x 2500mm (G12035FA) | 476.38in x 137.80in (G12025FA) 476.38in x 98.43in (G12035FA) |
Positioning Precision of X/Y Axis | ±0.05mm/m | ±0.00060in/ft |
Repetitive Positioning Precision of X/Y Axis | ±0.05mm | ±0.00197in |
Max Linkage Speed | Varies by model Consult Bramac for specific technical data | |
Max Linkage Acceleration | 0.5G | |
Bevel Option | Yes, all bevel cutting pipes should be above 50mm, thickness above3mm | |
Bevel Angle | ±45° | |
Core Attributes | High-Power Laser Cutter for Oversized Sheet Metal Extended Bed Design: Spliced machine frame available in custom lengths Integrated Extraction System: Tailored ventilation and dust collection for cleaner operation Versatile Bevel Cutting Option: Precision angled cuts for a variety of geometries and profiles | |
A: The GF Series cuts carbon steel, stainless steel, aluminum, brass, copper, and other non-ferrous metals with high precision.
A: It offers a max rapid traverse speed of up to 200m/min, allowing for fast and efficient operations.
A: The GF Series supports multiple laser power options ranging up to 30kW, catering to diverse cutting needs.
A: Yes, it includes integrated sheet and tube cutting capabilities with ±0.005° rotary axis accuracy.
A: With advanced CNC control, linear motors, granite frame design, and a precision rotary axis, it maintains ±0.01 mm accuracy consistently.
